BQLZR 0.5 Modulus 0.3CM Hole Diameter Brass Turbine Gear Shaft & 60 T Turbine Gear Whe

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.

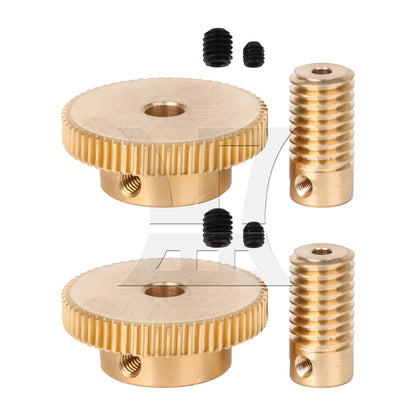

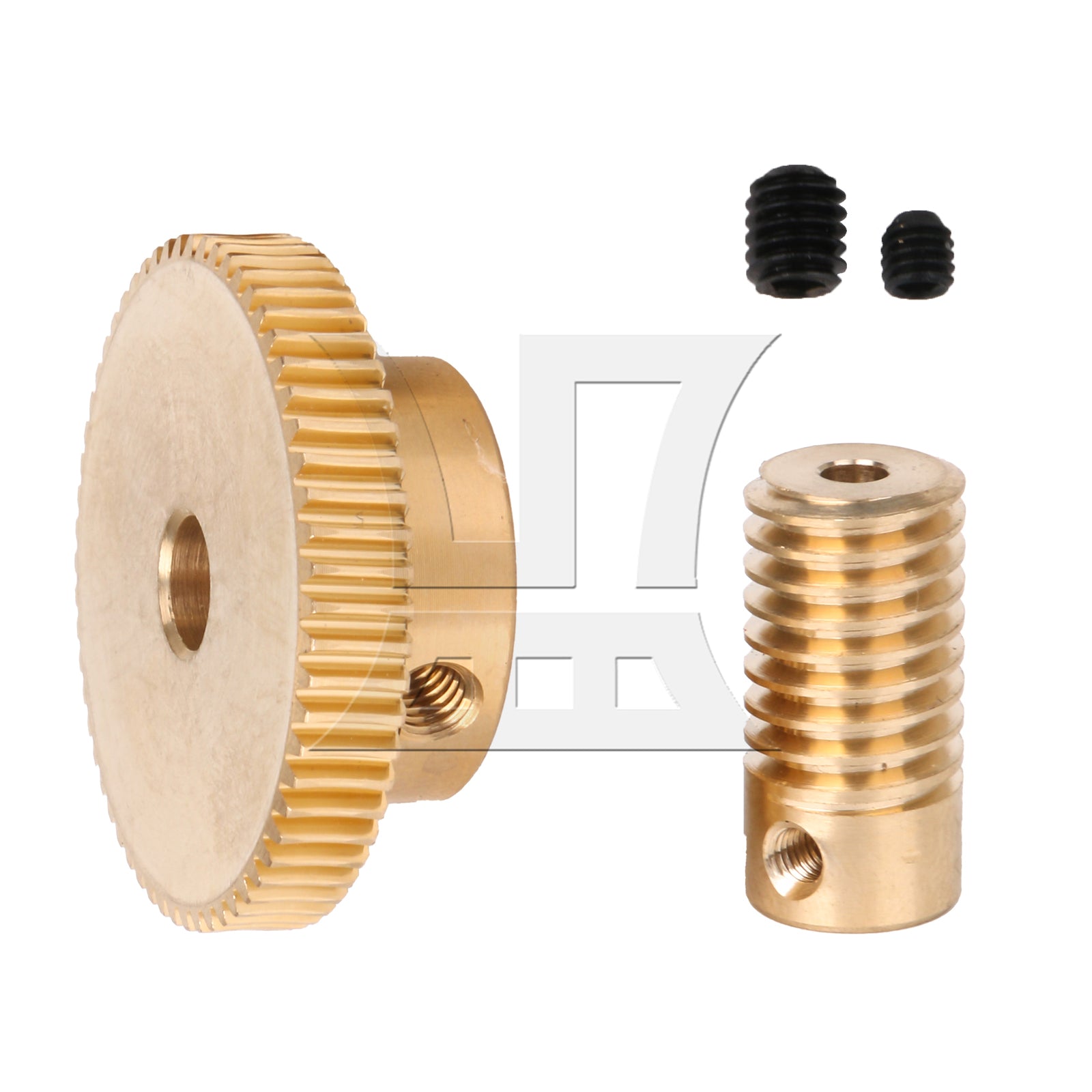

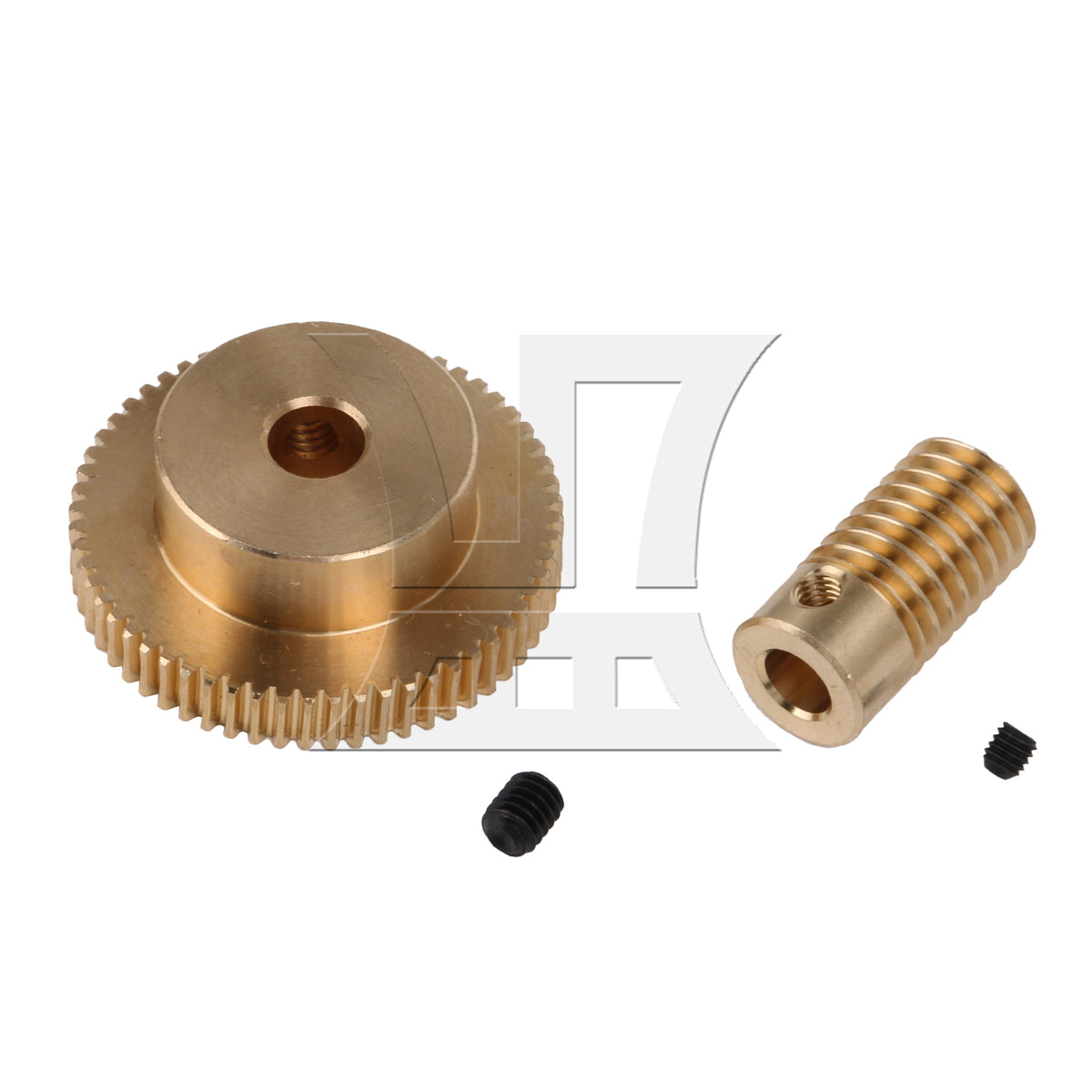

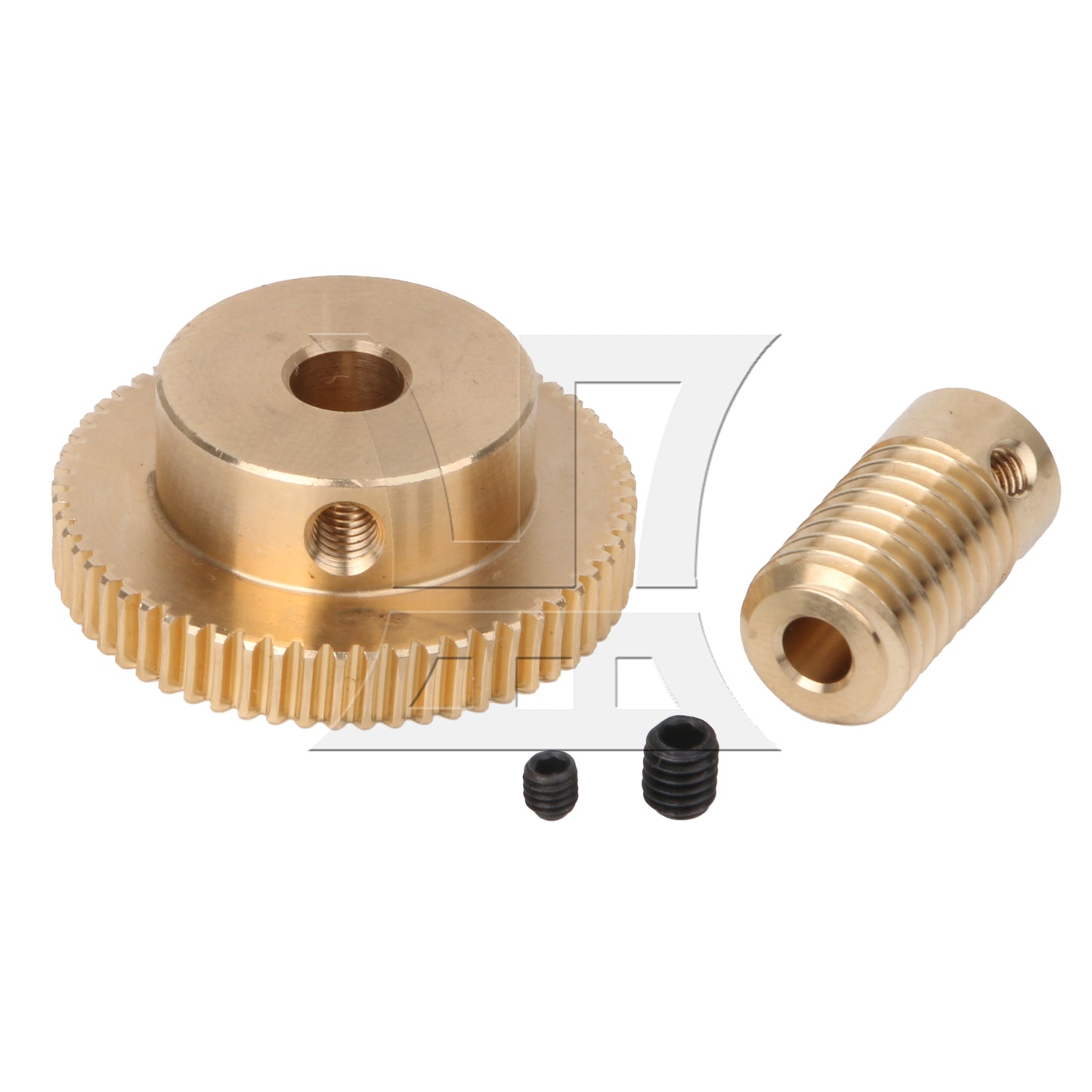

3.Pack of 1piece 0.5 modulus 3mm hole diamater brass Turbine gear shaft and 1piece 31mm outer diameter 60 T brass Turbine gear wheel.
4.Turbine Shaft Z1=1, turn a round of Turbine gear T, can get a large transmission ratio, generally in the power transmission, the transmission ratio I=10-80, like big transmission ratio, if use with gear transmission, will need to take the multi-stage transmission.
5.The transmission structure of Turbine shaft is simple, compact, small volume and light weight.
6.High quality material selection, carefully processing create high quality product.
7.Made of brass, long time service.

Specifications:
Material: Brass
Color: Yellow
Brand name: BQLZR
Weight: 56 g

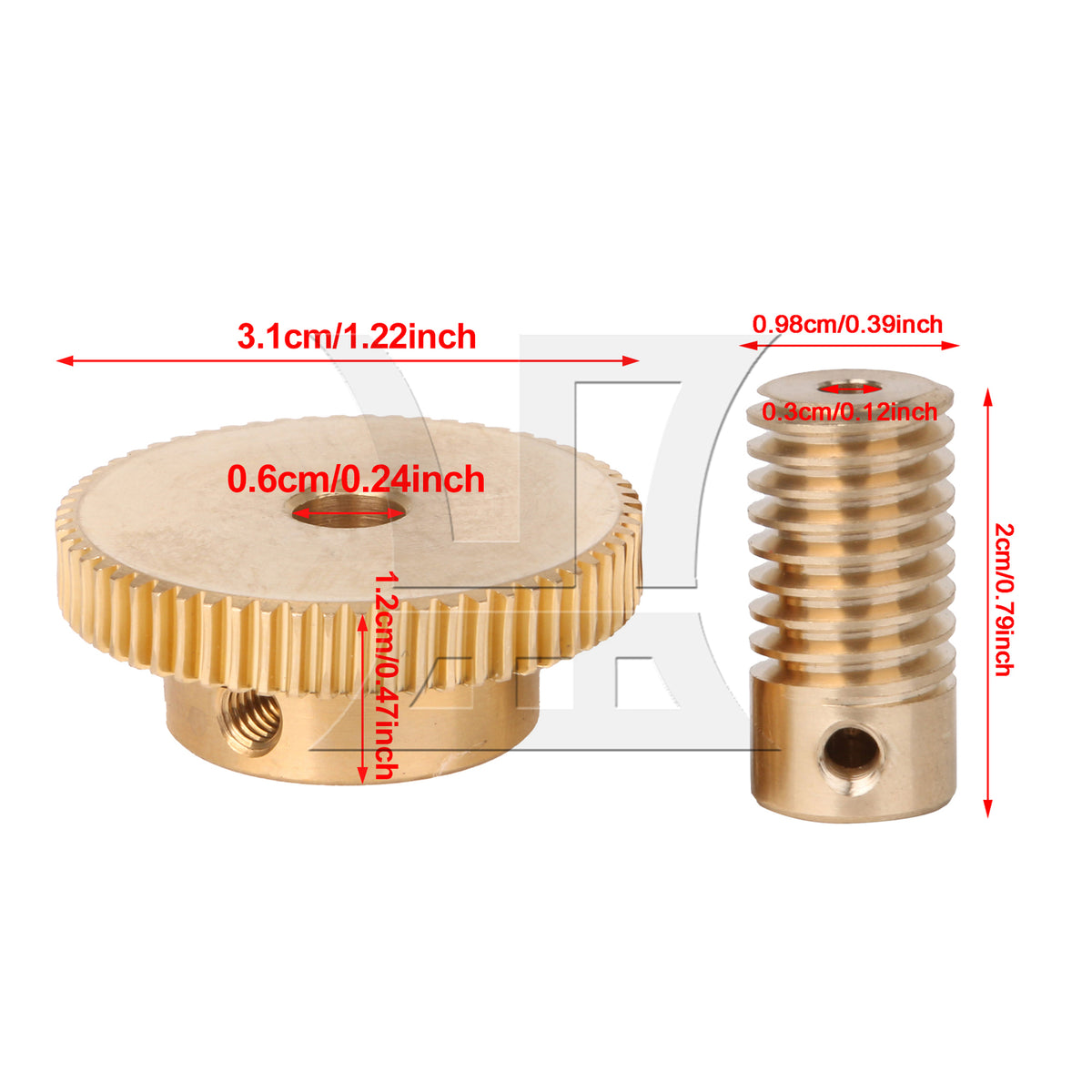

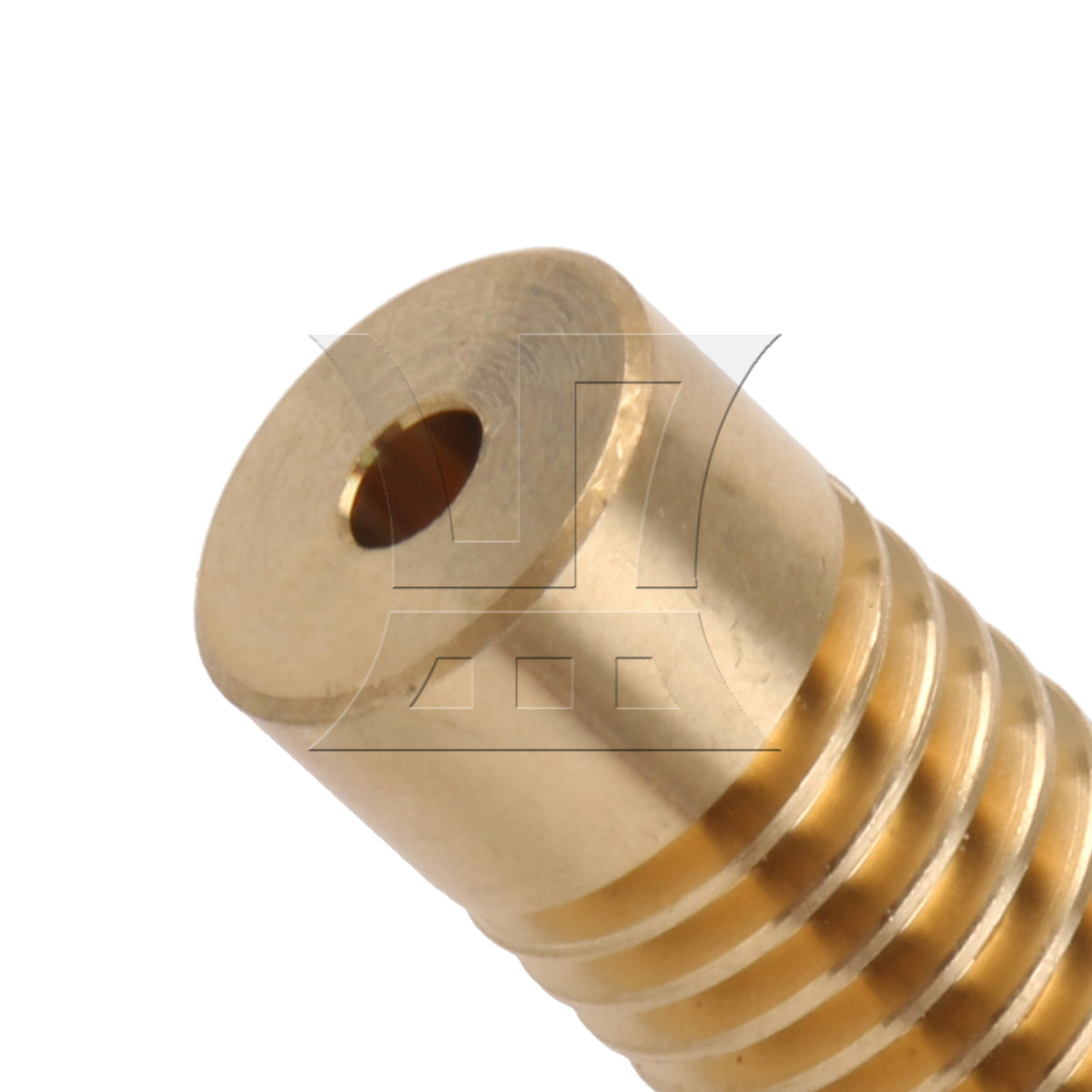

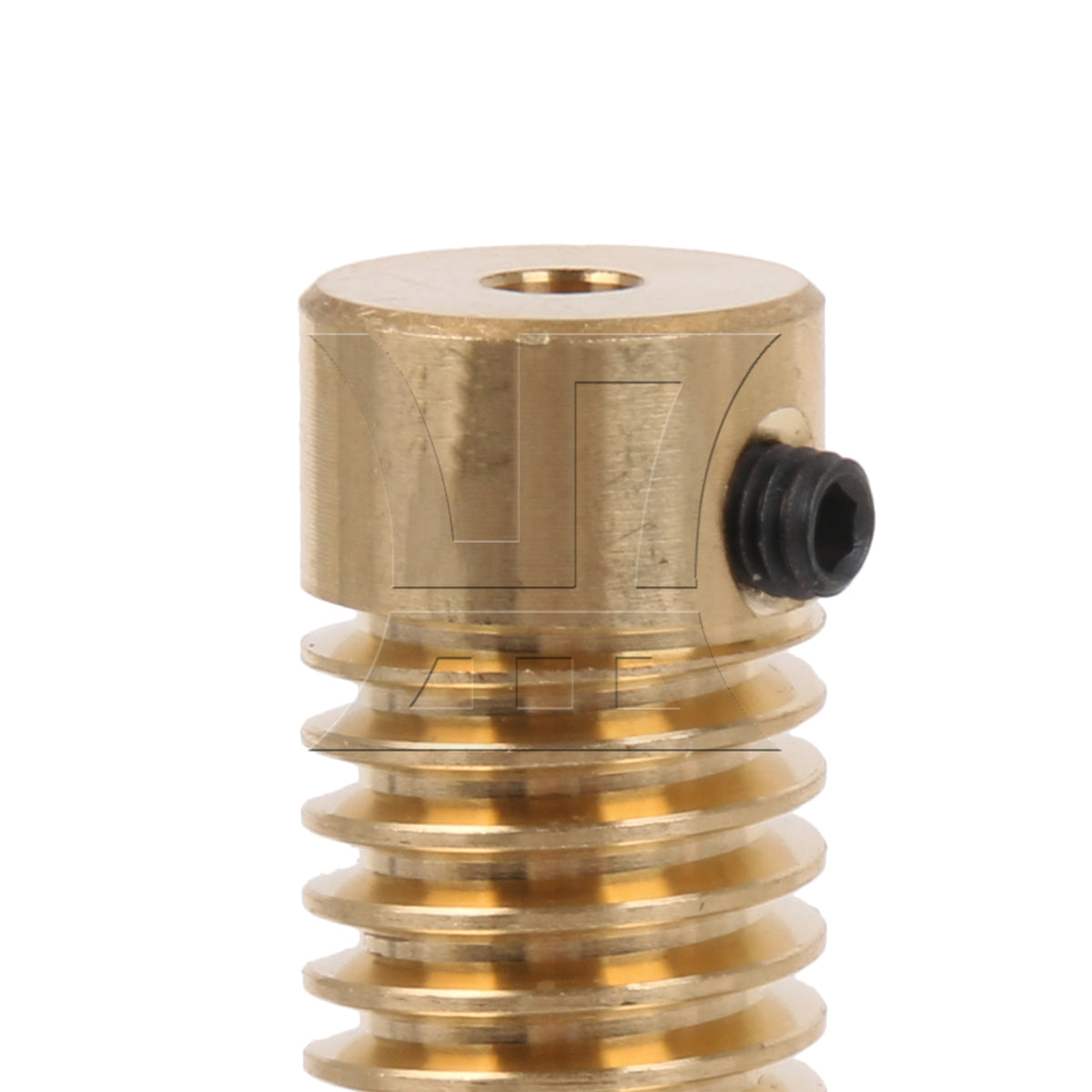

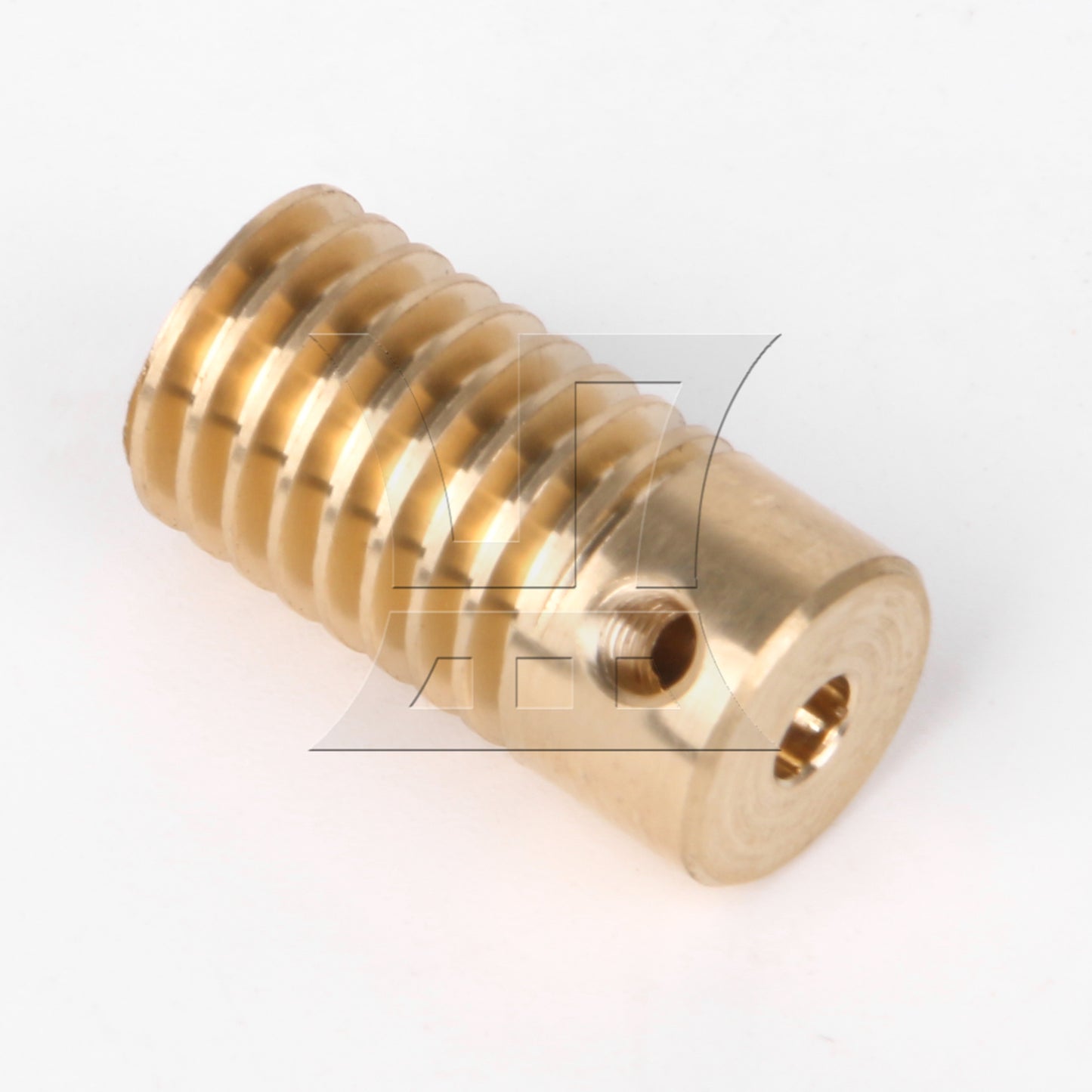

Brass Turbine Gear Shaft:
Modulus:0.5
Height: 20MM/0.79 Inch
Outer Diameter: 9.7MM/0.38 Inch
Inner Diameter: 3MM/0.12 Inch
Size: 20x9.7x3MM/0.79x0.38x0.12 Inch( H x OD x ID)
Weight: 10g

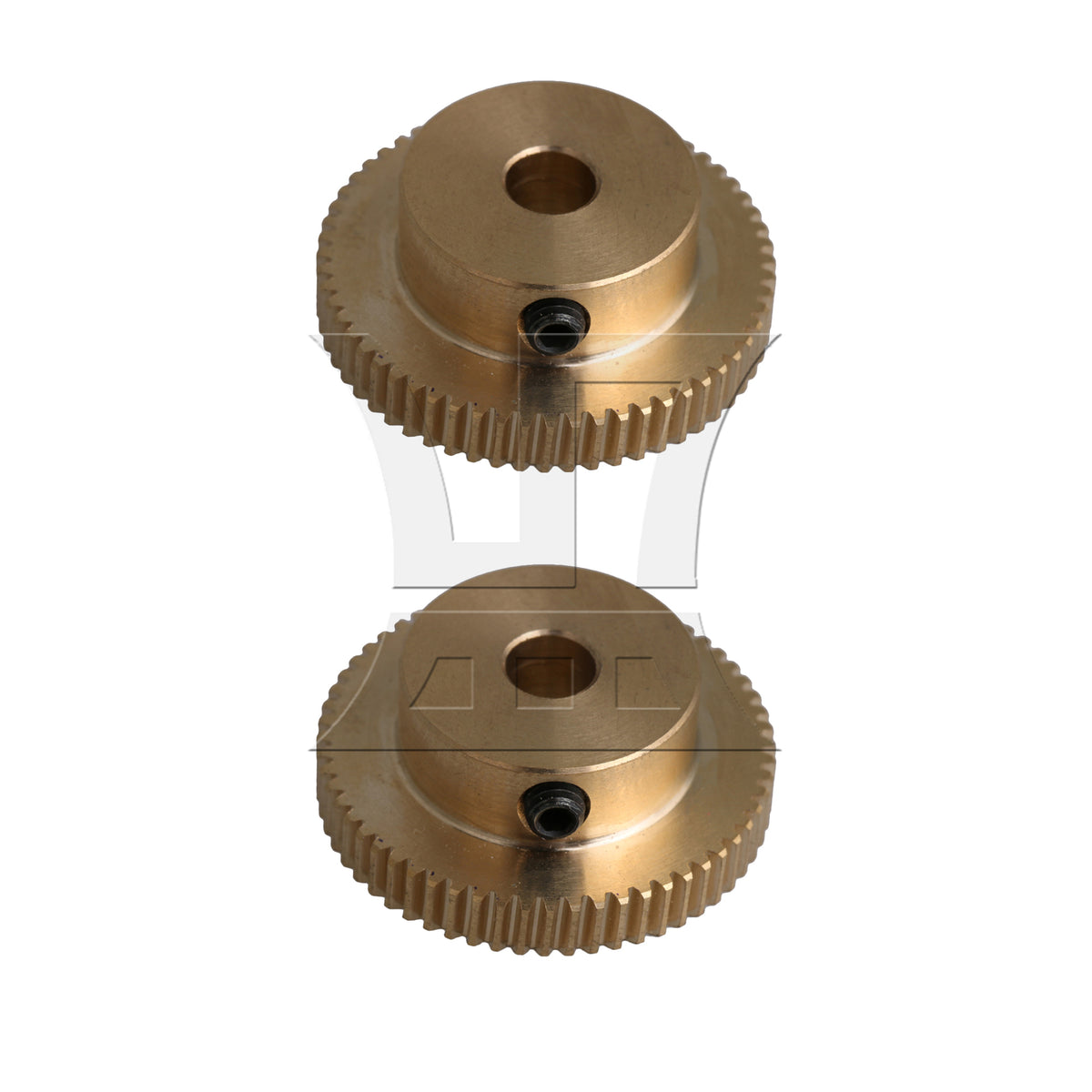

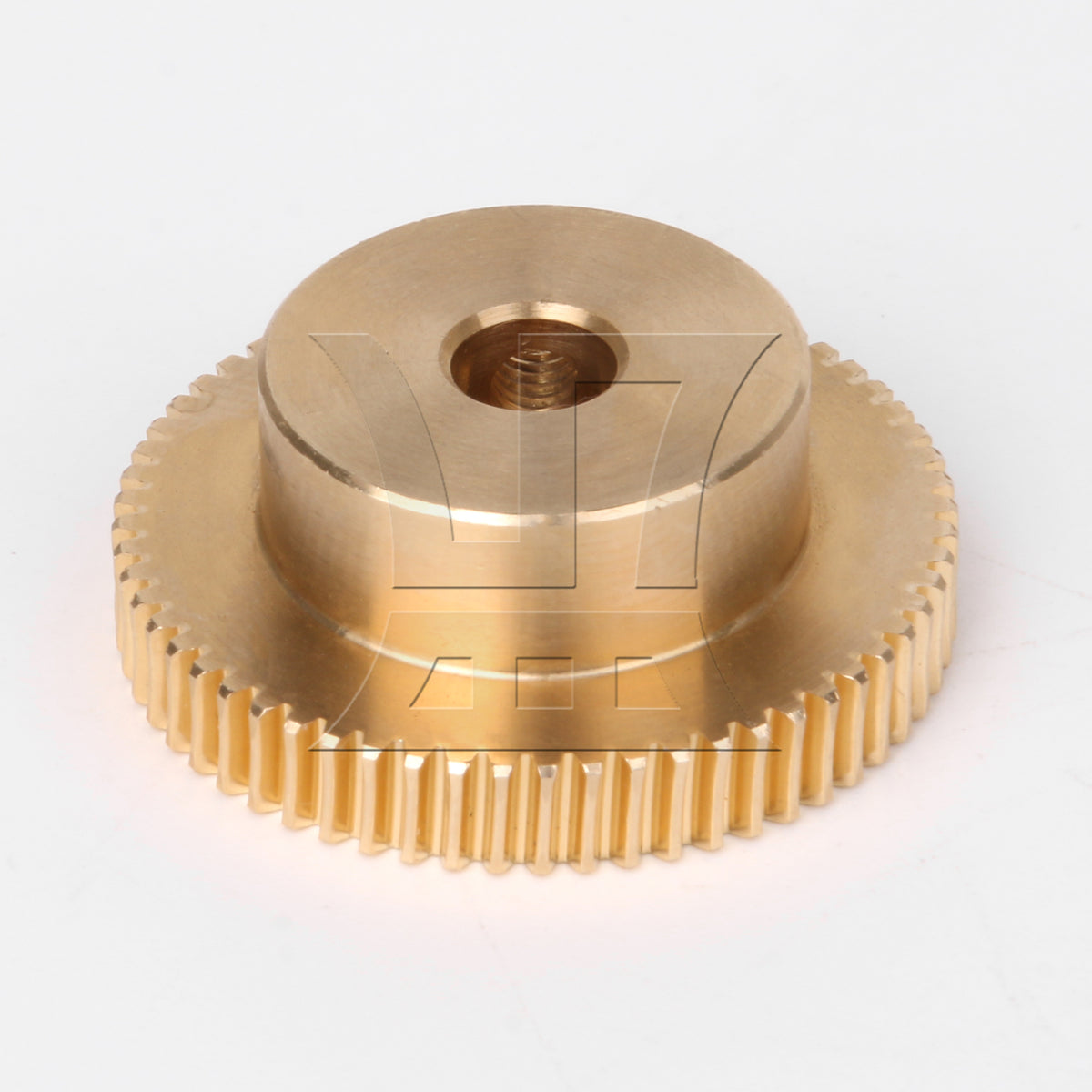

Brass Turbine Wheel:
Modulus:0.5
T: 60
T Dia: 31.2MM
Height: 12MM/0.47 Inch
Outer Diameter: 31MM/1.22 Inch
Hole Diameter: 6MM/0.24Inch
Step Size: 20x7MM/0.79x0.27 Inch ( Dia x H)
Overall Size: 12x31x6MM/0.47x1.22x0.24 Inch( H x OD x ID)
Weight: 46g
