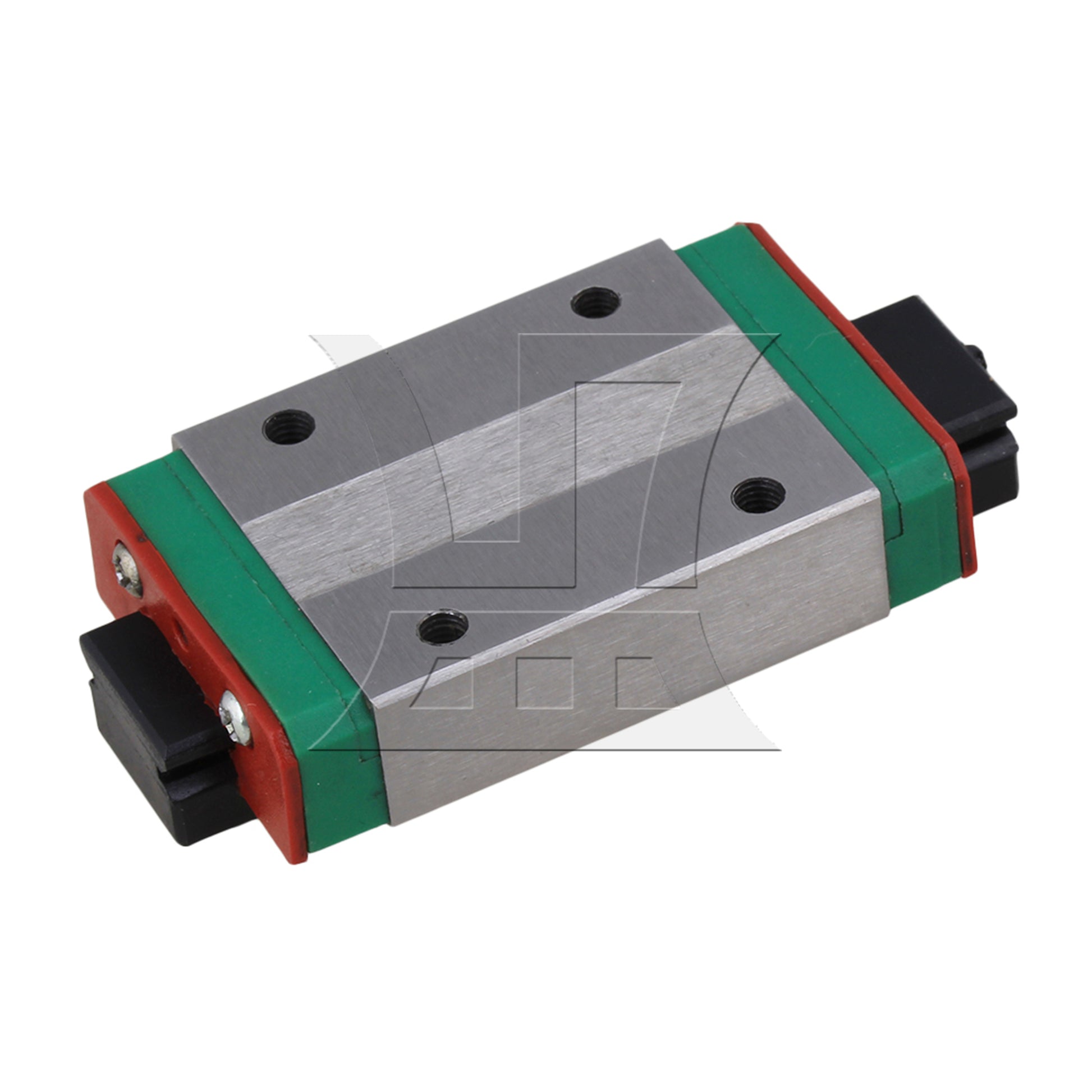

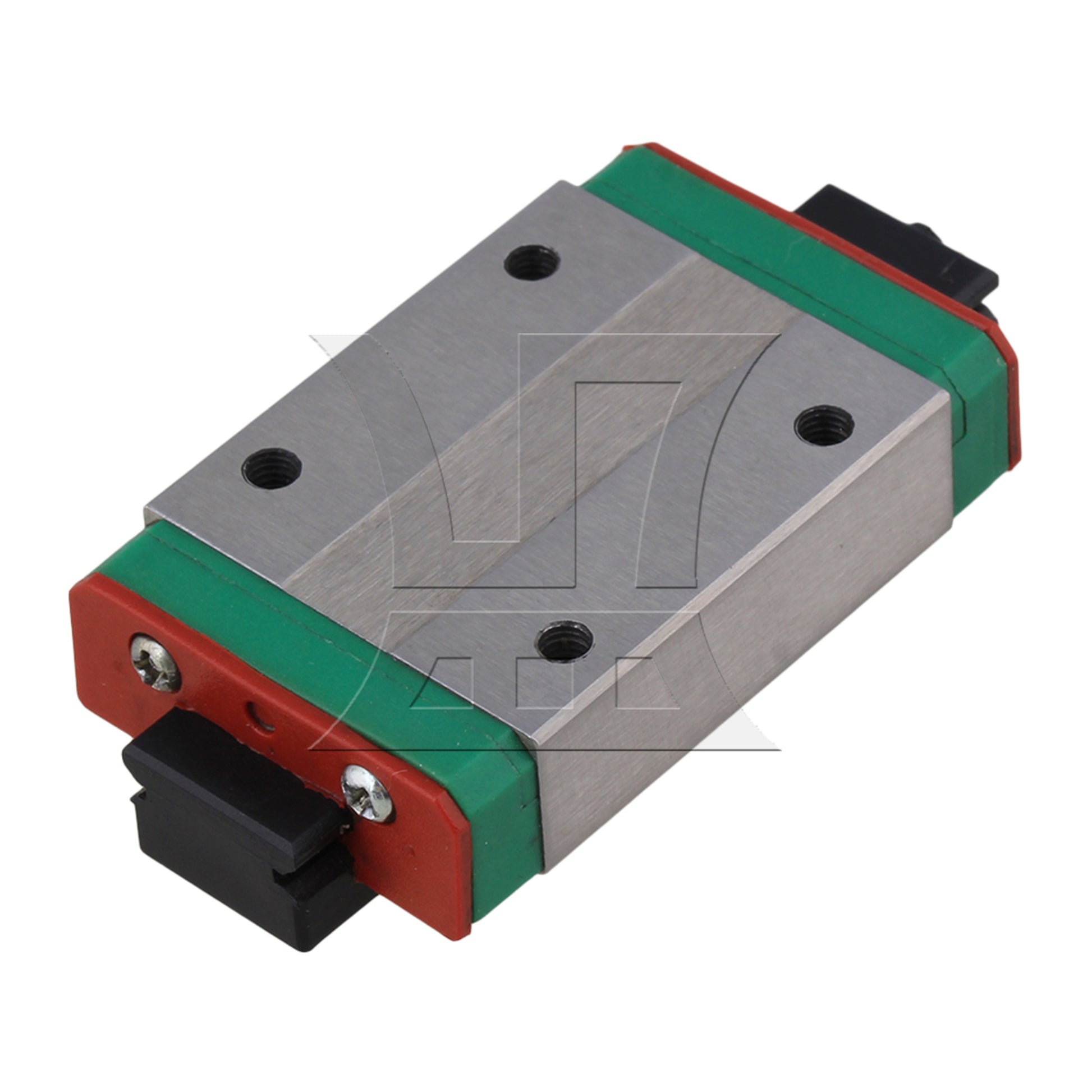

BQLZR 10mm Thick 45mm Length Extension Linear Guide Rail Sliding Block MGN12H

Feature:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.Made of high-quality bearing steel, guarantee its long service life.
3.Applications for semiconductor manufacturing equipment, printed circuit board IC assembly equipment, the machine arm, precision measurement machines, office automation equipment, other small linear sliding device.
When the linear guide slider slides on the track, the surface of the track should be wiped neat first. If there is iron sheet on the guide rail, the sliding block will produce noise and it is easy to wear the internal steel balls.
Slowly slide in after aligning the reference surface of the guide rail.

Note:
1.Fixing screws is not included in the package.
2.There is a fake Linear Sliding Guide to fix the slide balls, to avoid ball drop on the way of shipping.Please replace the fake Linear Sliding Guide Rail with real Linear Sliding Guide Rail when using it.
3.The real Linear Sliding Guide Rail is  not included in the package,please order it separately.

Note: When the linear guide slider slides on the track, the surface of the track should be wiped first. If there is iron sheet on the guide rail, the sliding block will produce noise and it is easy to wear the internal steel balls.
Slowly slide in after aligning the reference surface of the guide rail.

specification:
Color:Black,Silver,Green,Red
Brand name: BQLZR
Material: bearing steel
Slider length: approx. 45mm
Slider width: approx. 27mm
Slider thickness: approx. 10mm
Fixing screw size: M3x3.5

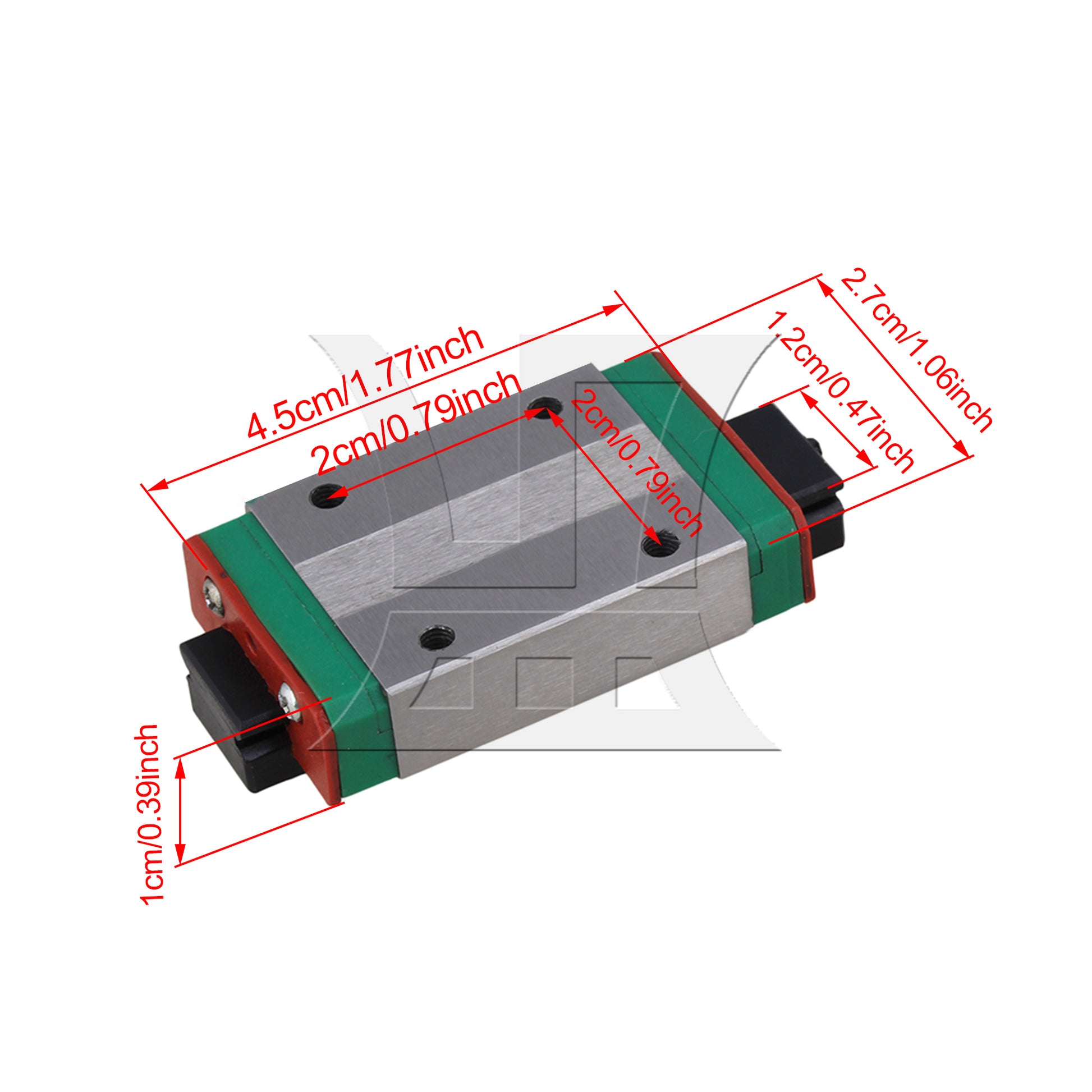

Sliding Block Size: approx. 45 x 27 x 10mm/1.77 x 1.06 x 0.39"(L x W x T)
Total Size: approx. 56 x 27 x 13mm/2.20 x 1.06 x 0.51"(L x W x T)
Weight: 57g

Package include:
1 x MGN12H Extension Guide Rail Sliding Block
1 x Fake Linear Sliding Guide Rail
