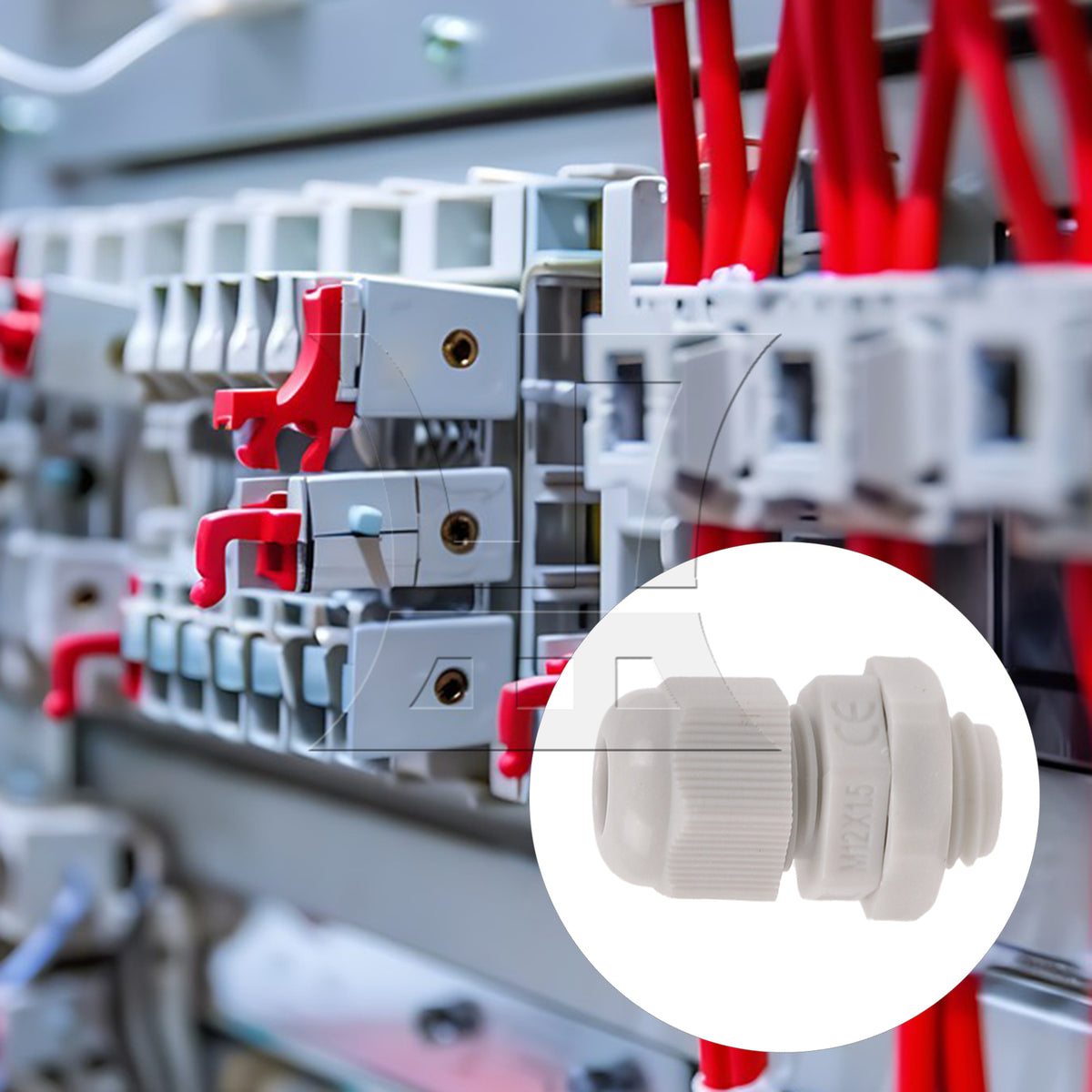

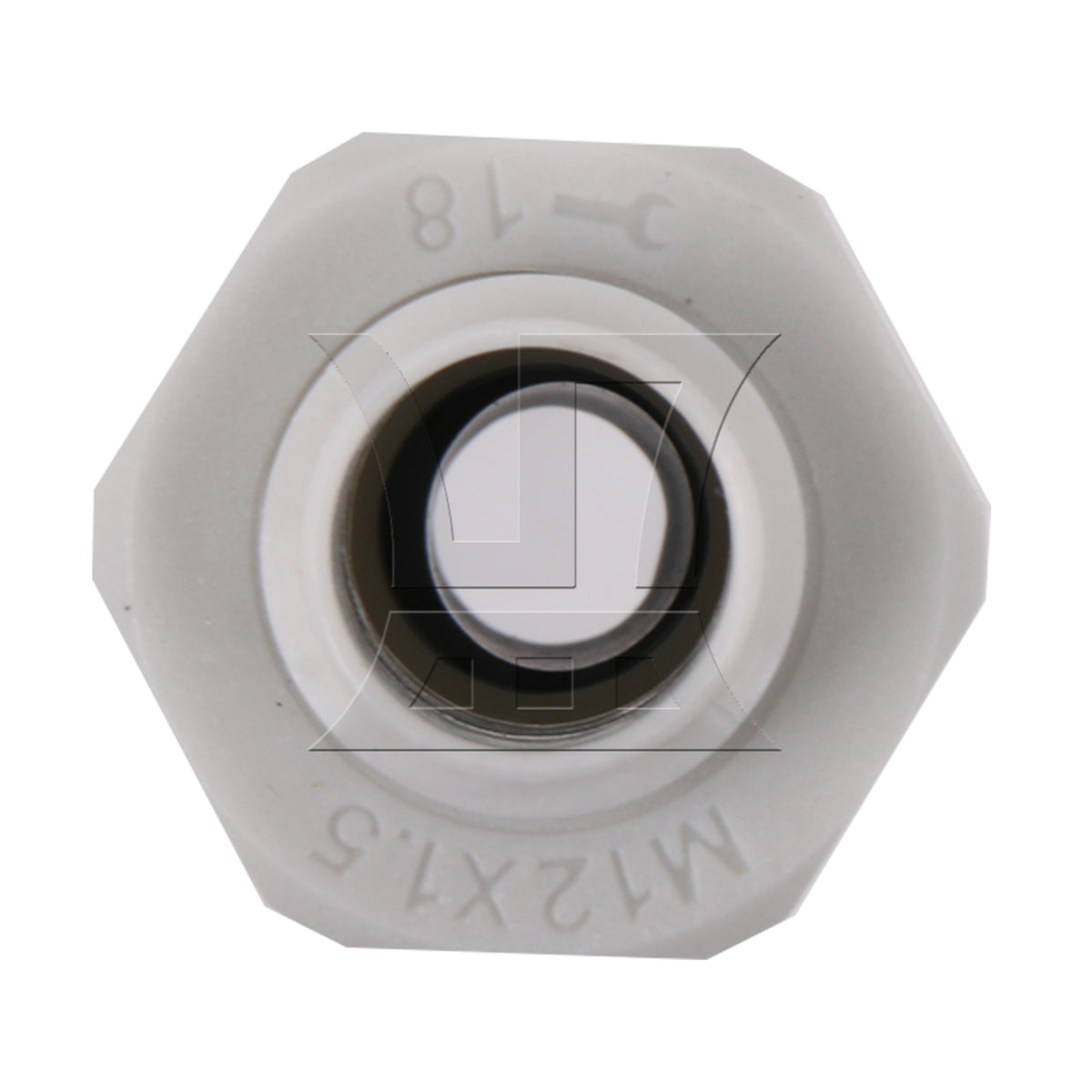

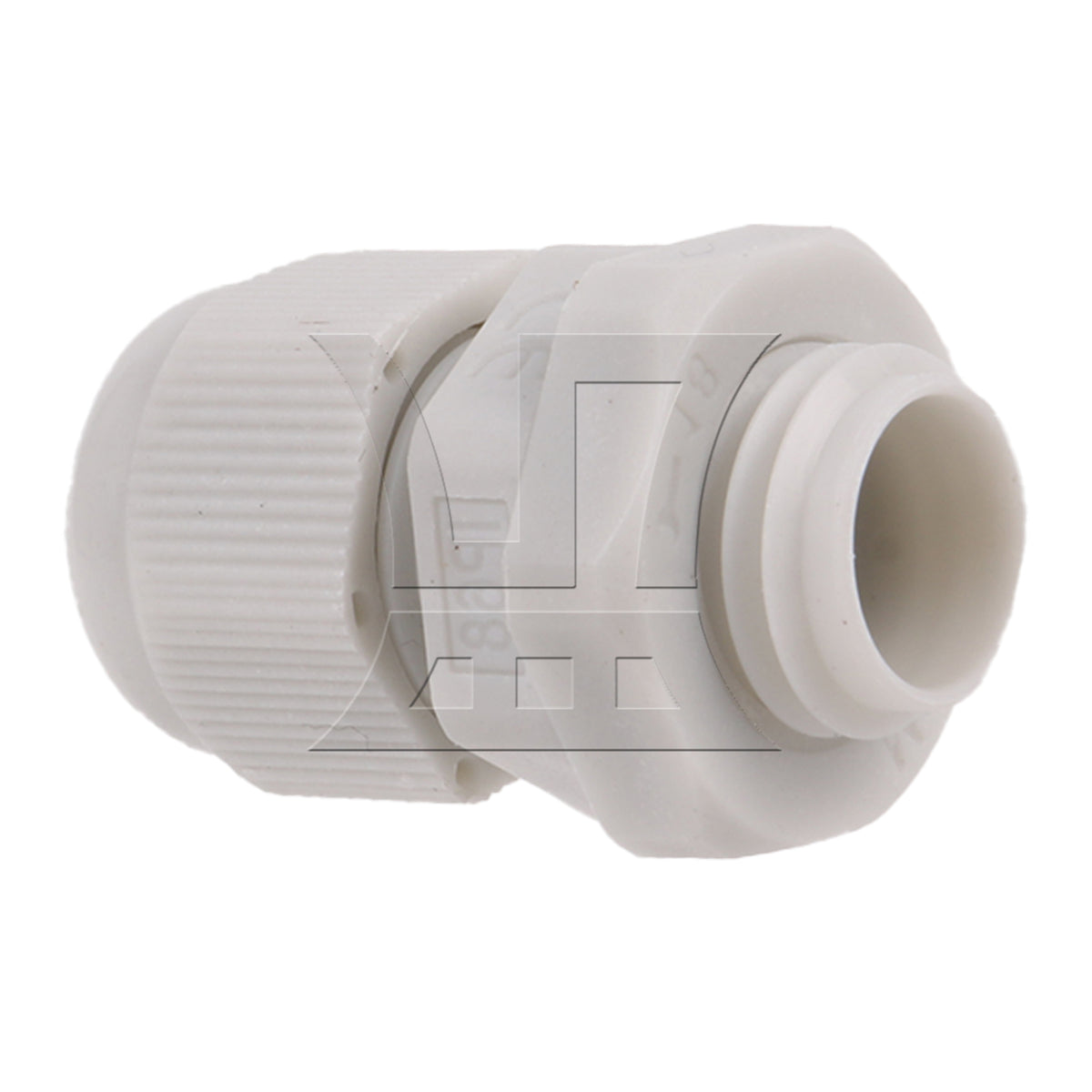

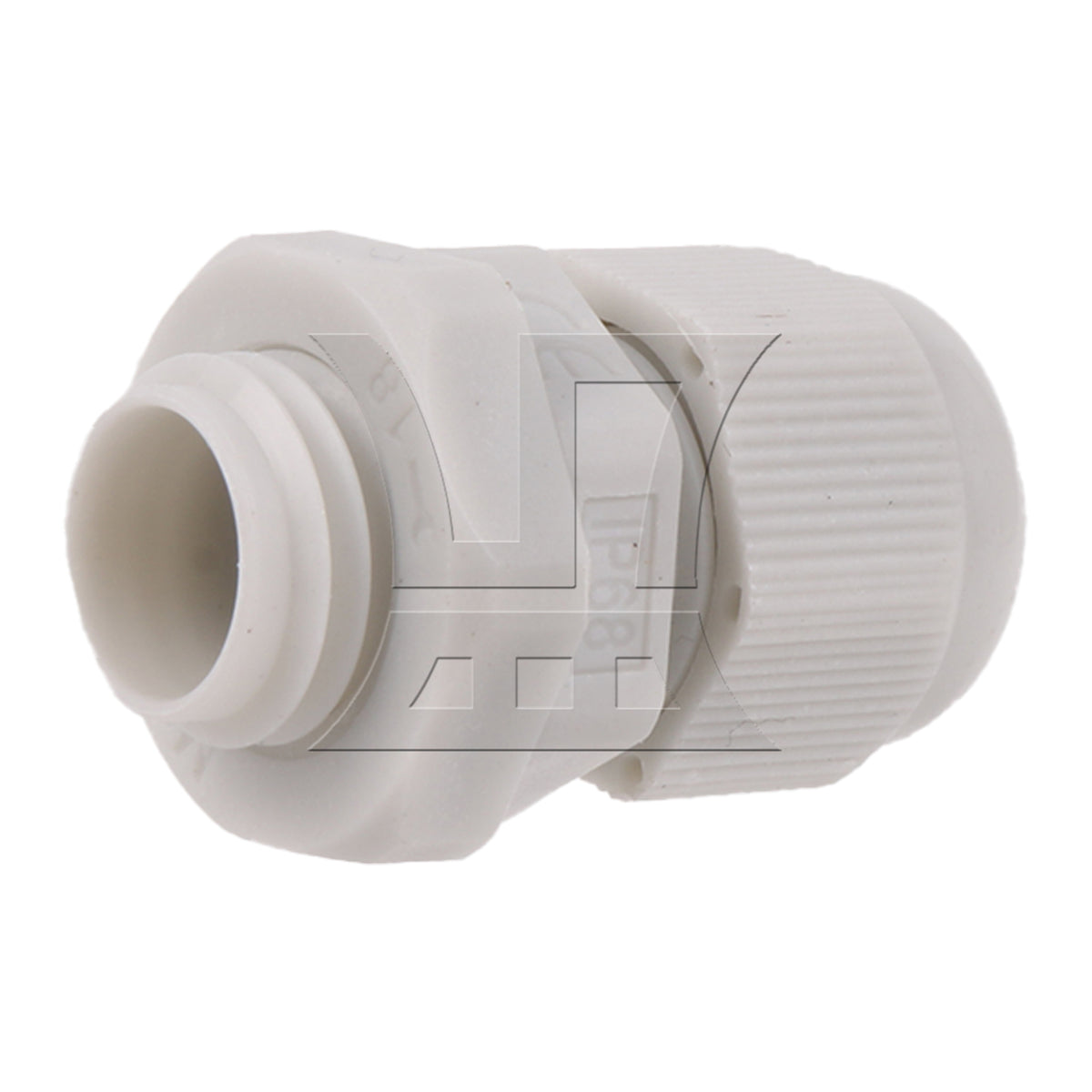

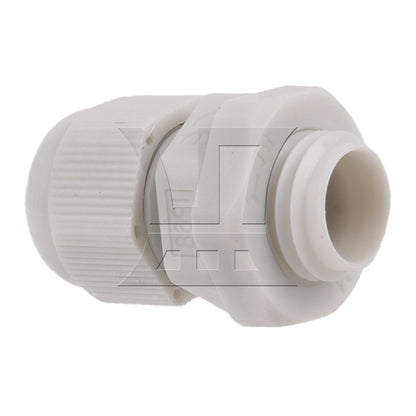

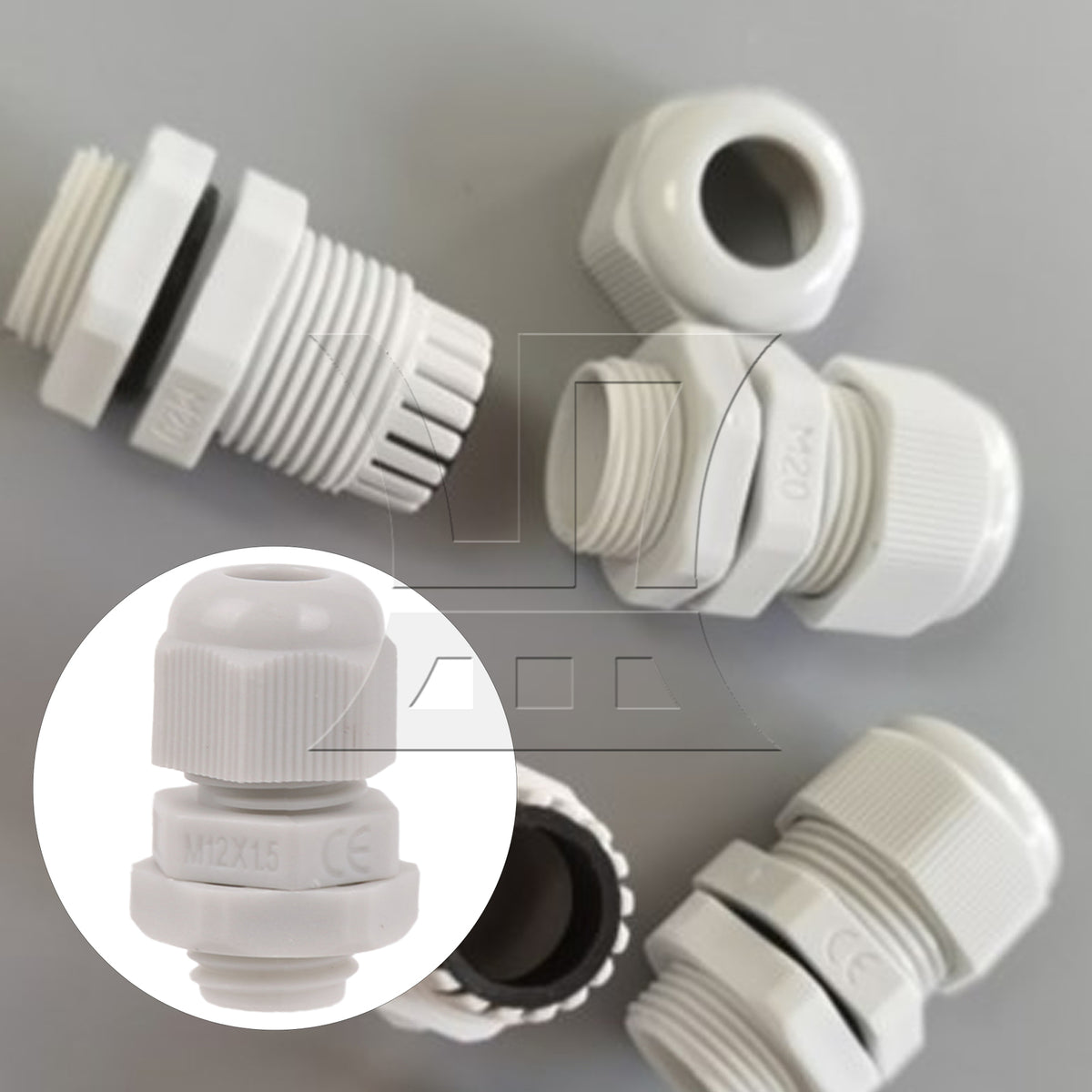

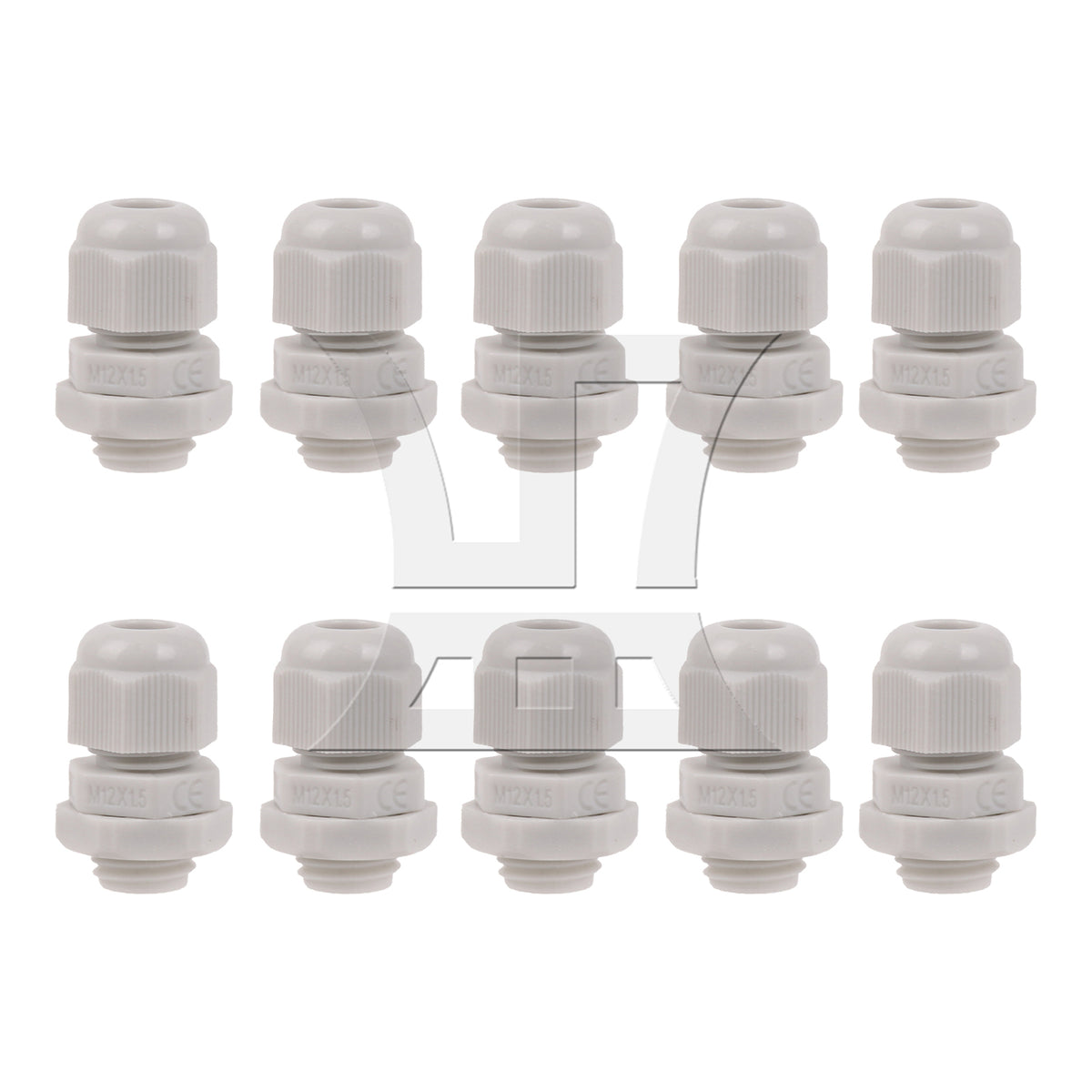

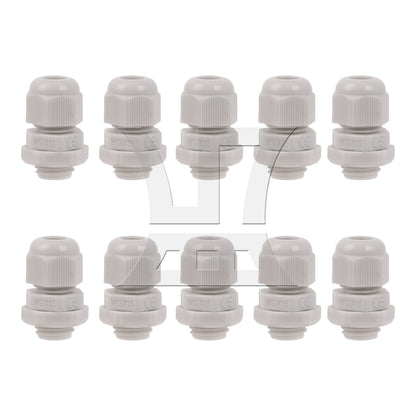

BQLZR 10pcs M12 Cable Gland Water Proof Plastic Joint Power Plant Working Equipment White

Features
1.Use high-quality nylon plastic, with a smooth surface, hard and wear-resistant, safe and environmentally friendly.
2.High elastic sealing ring design, good sealing, ensuring safety of cable use.
3.Internal snap-on design, strong fixing performance.

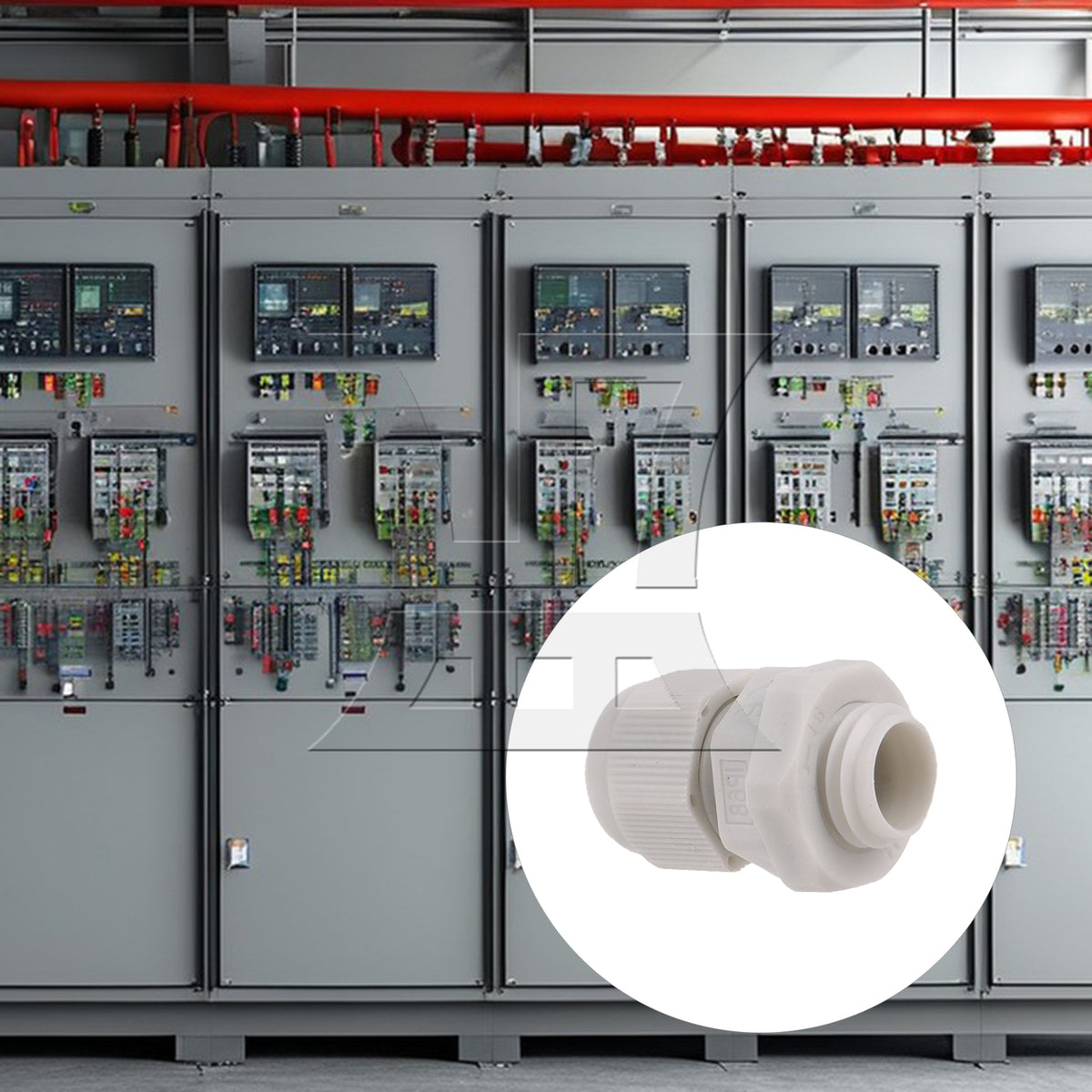

4.Suitable for power plant working equipment, distribution box installation, workshop production equipment, etc.Installation method:
1. Measure the aperture of the distribution box and confirm the outer diameter of the connector.
2. Measure the maximum outer diameter of the cable and confirm the snap.
3. Select the appropriate joint according to the chart size.
4. Fix the connector to the opening of the distribution box.
5. Put the cable in a threaded cap and pass through the center hole of the connector.
6. Screw the threaded cap and the installation is completed.Specifications:
Material: Plastic
Color:White
Opening size: 12.2-12.5mm
Applicable cable: 3-6.5mm
Ambient temperature: static -40 Degree to 100 Degree, short-term to 120 Degree
Dynamic -20 Degree to 80 Degree, short-term to 120 Degree
Protection level: IP67-5 bar pressure
Installation method: manual tightening

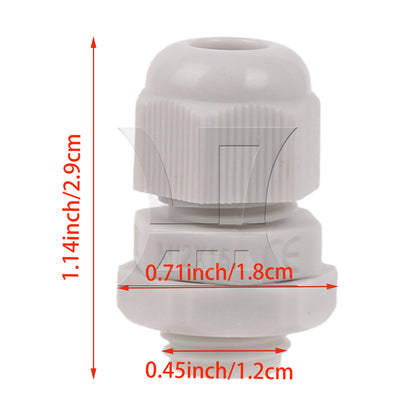

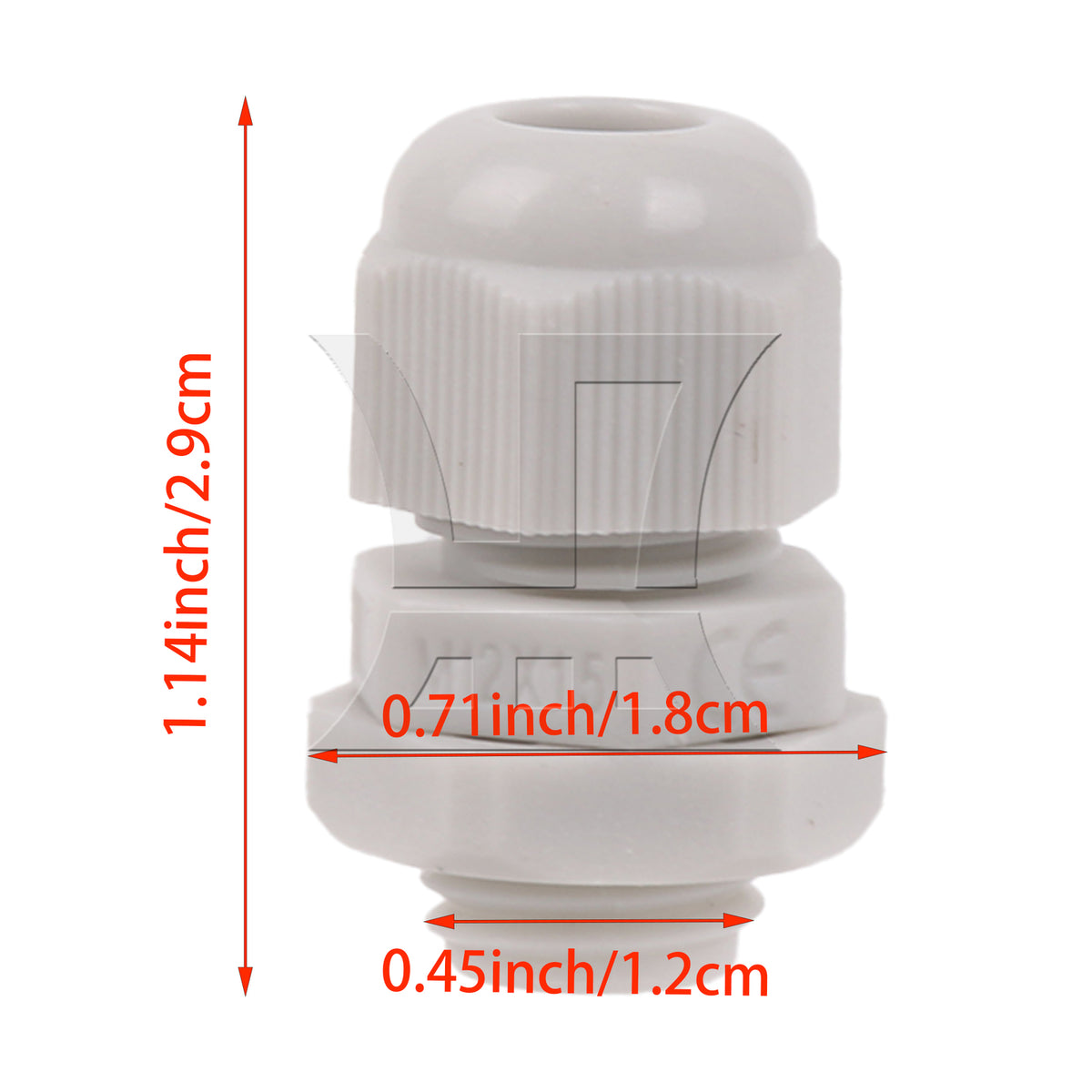

Size:
Length: 29mm/1.14inch
Width: 18mm/0.71inch
Thickness: 4.5mm/0.18inch
Thread diameter: 11.5mm/0.45inch
Thread length: 9mm/0.35inch
Weight: 44gPackage include:
1 x Cable Gland Water Proof Plastic Joint
