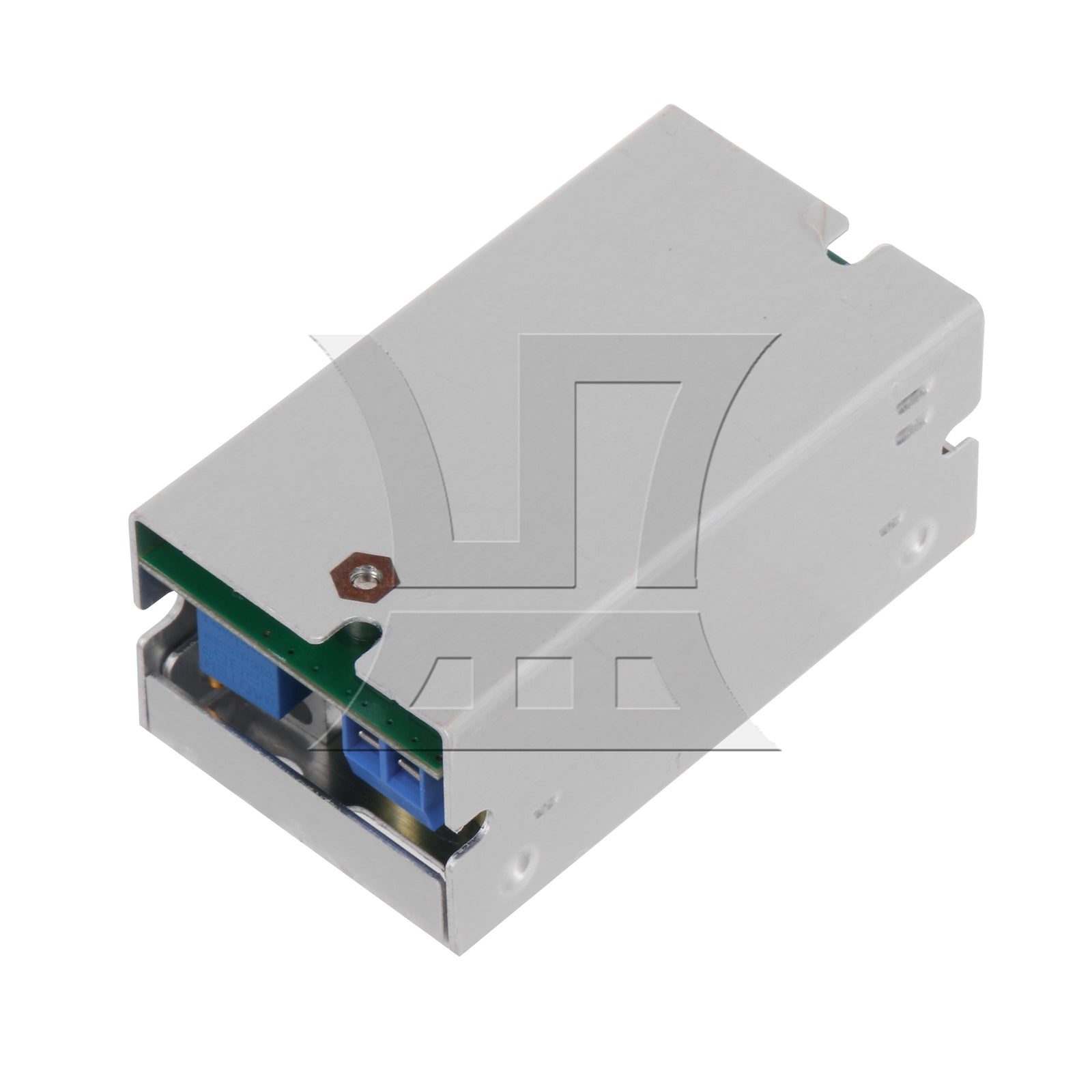

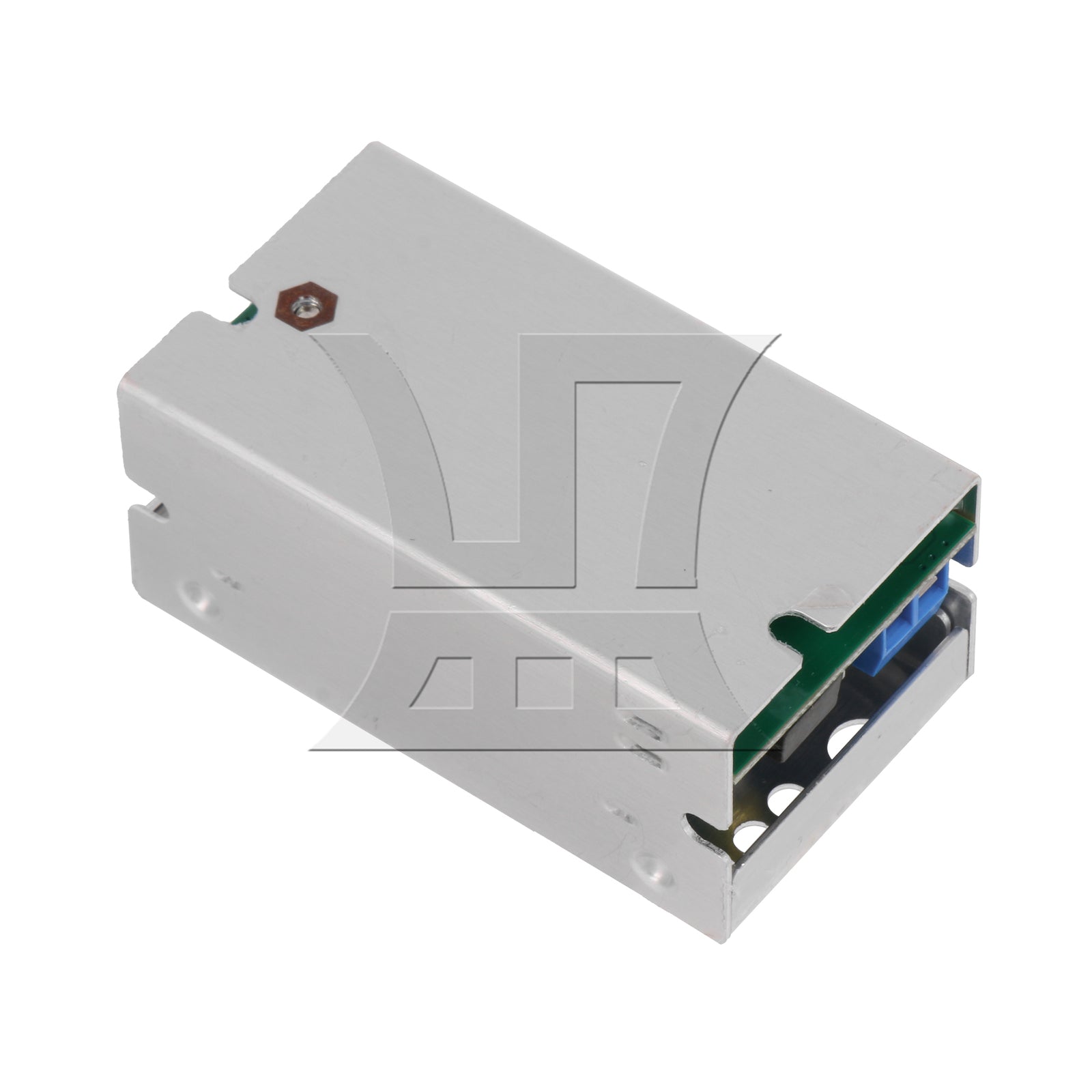

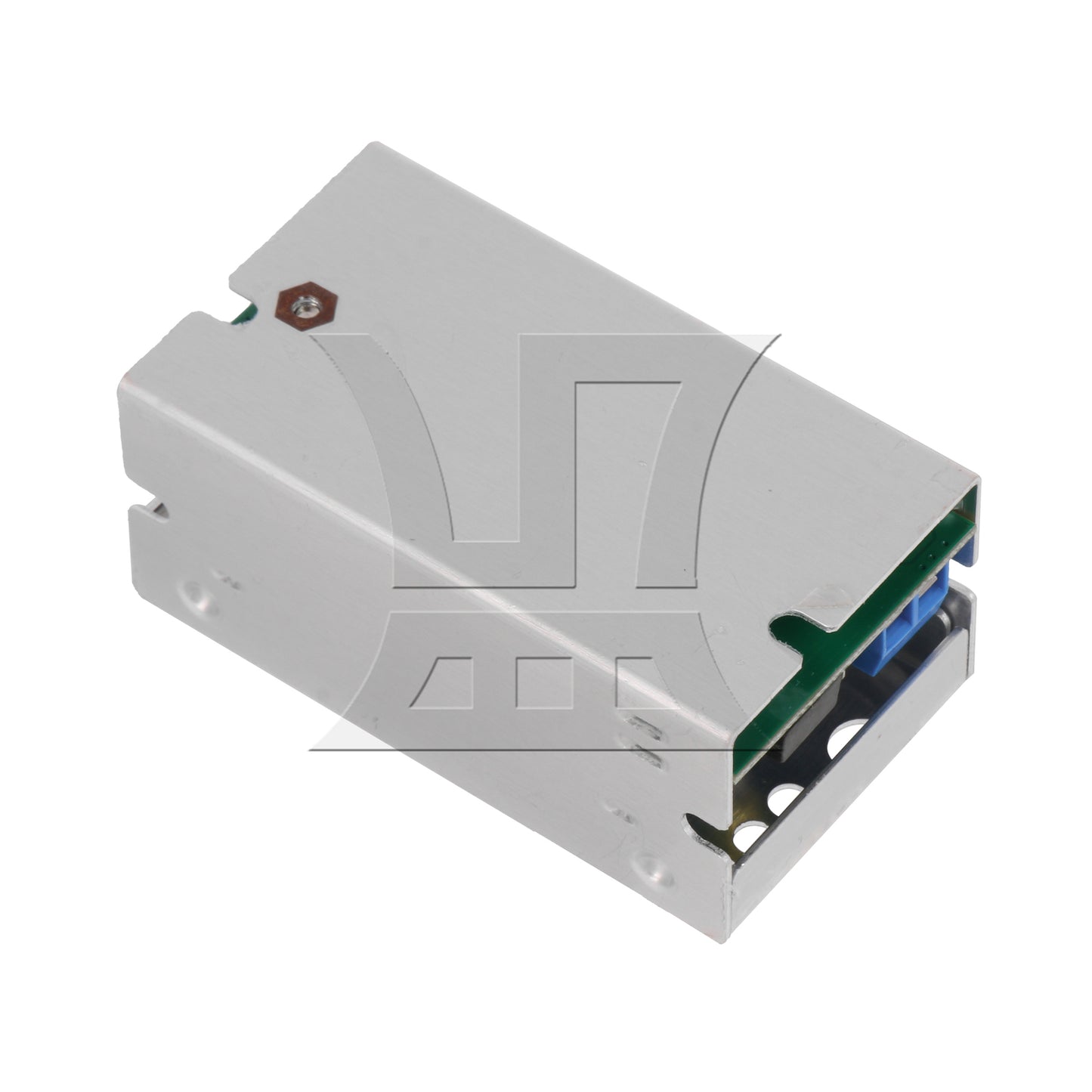

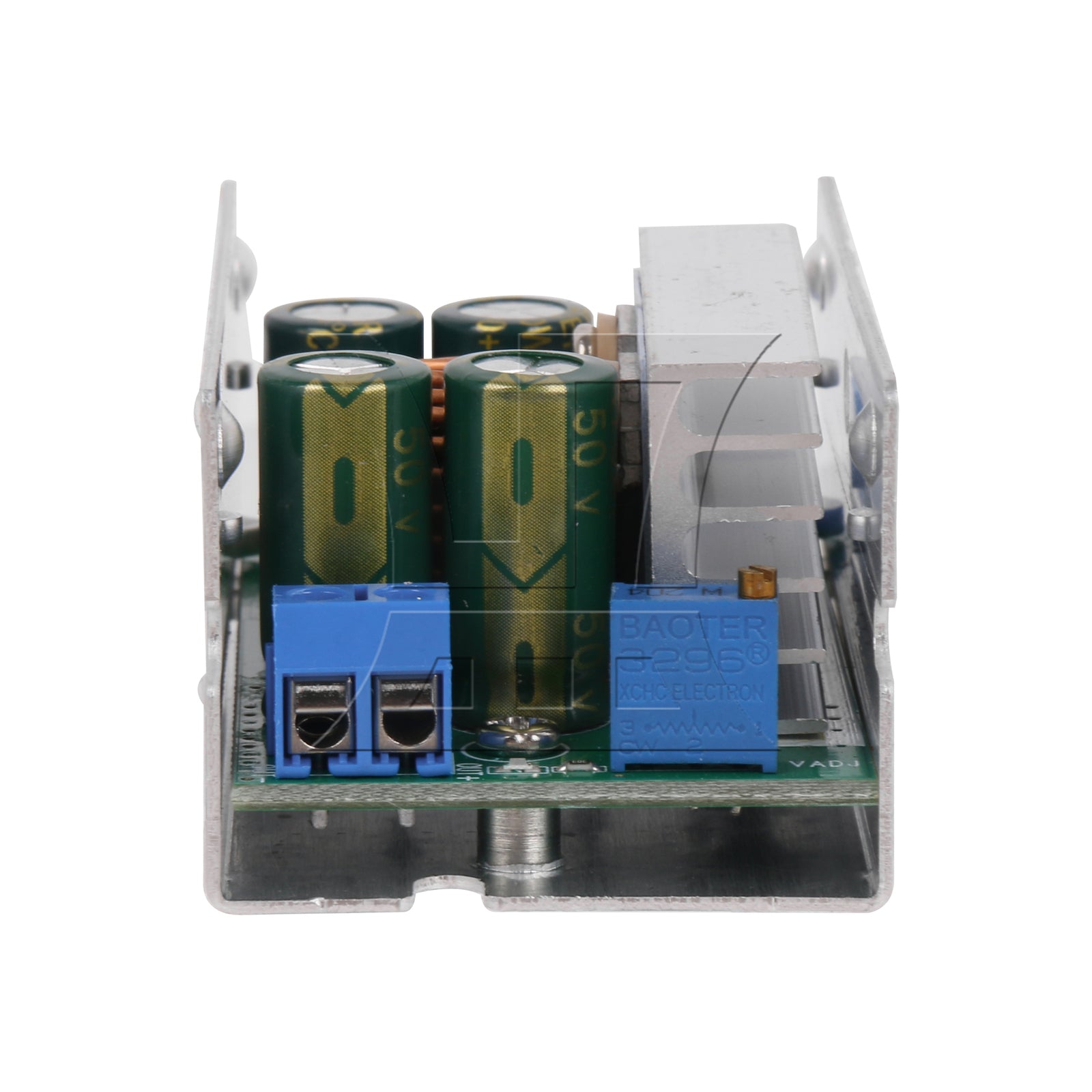

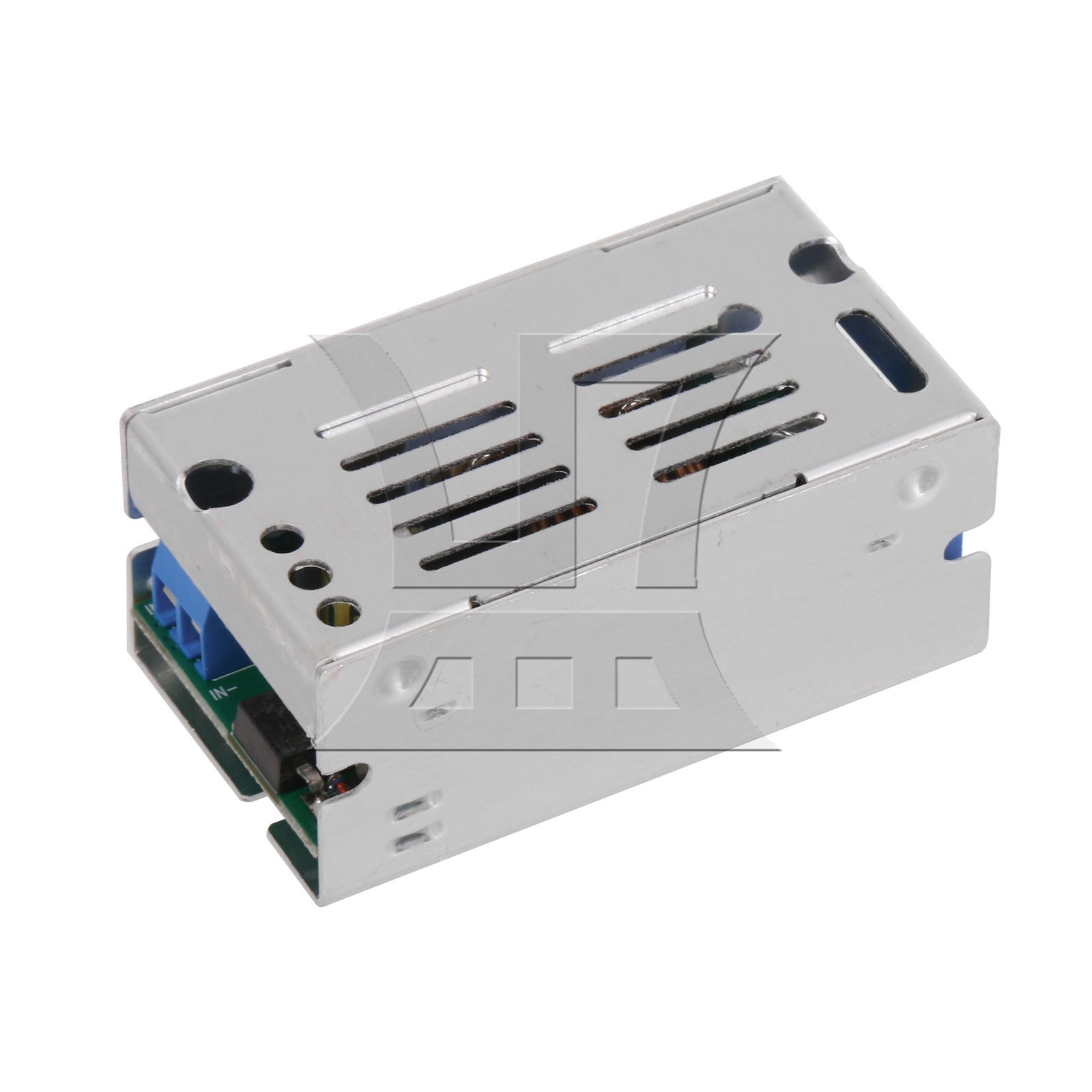

BQLZR 15A DC-DC 8-55V to 1-35V Step Down Buck Voltage Power Converter Module

Note: The color of the item may vary slightly due to photography and your own computer
Material:Metal
Color:Silver

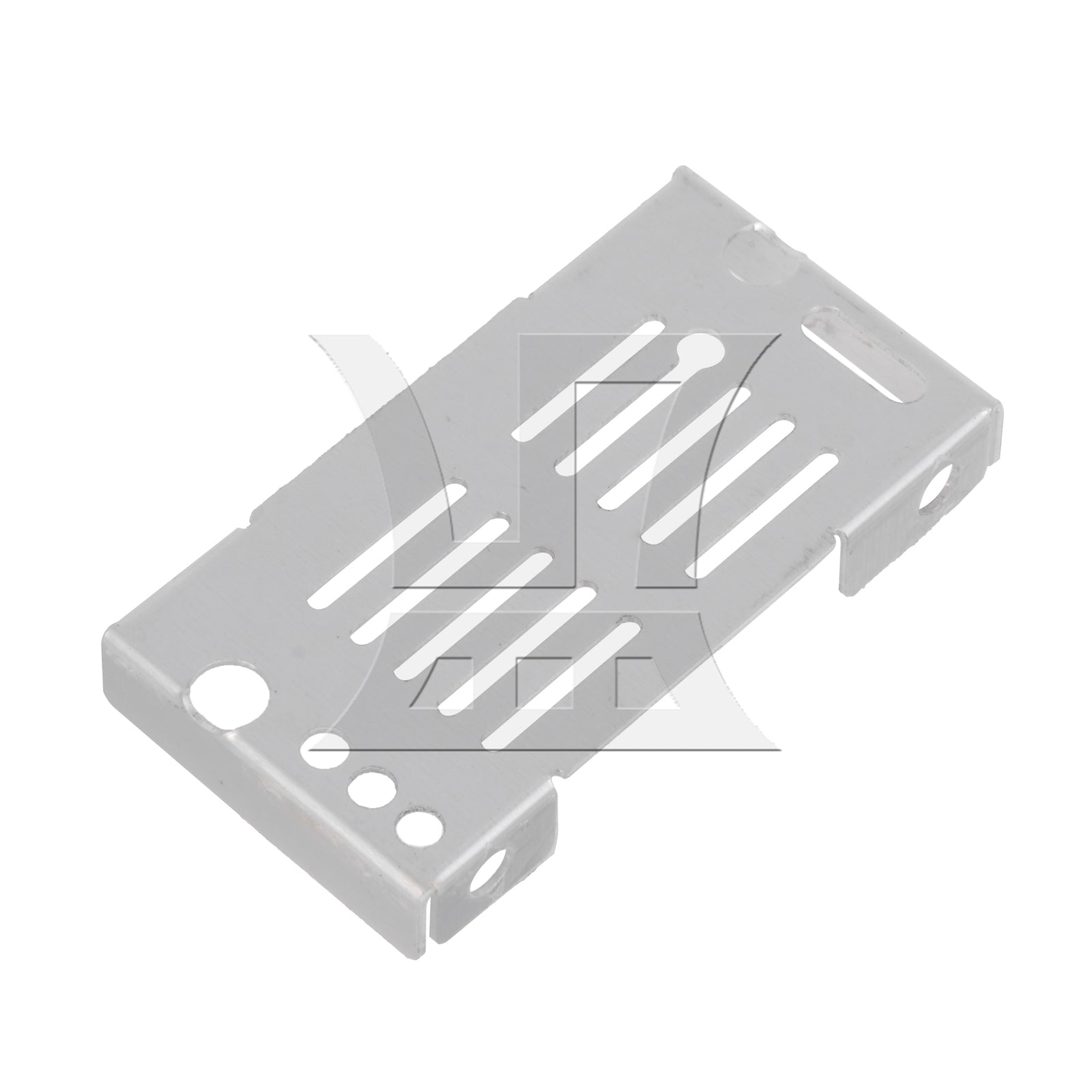

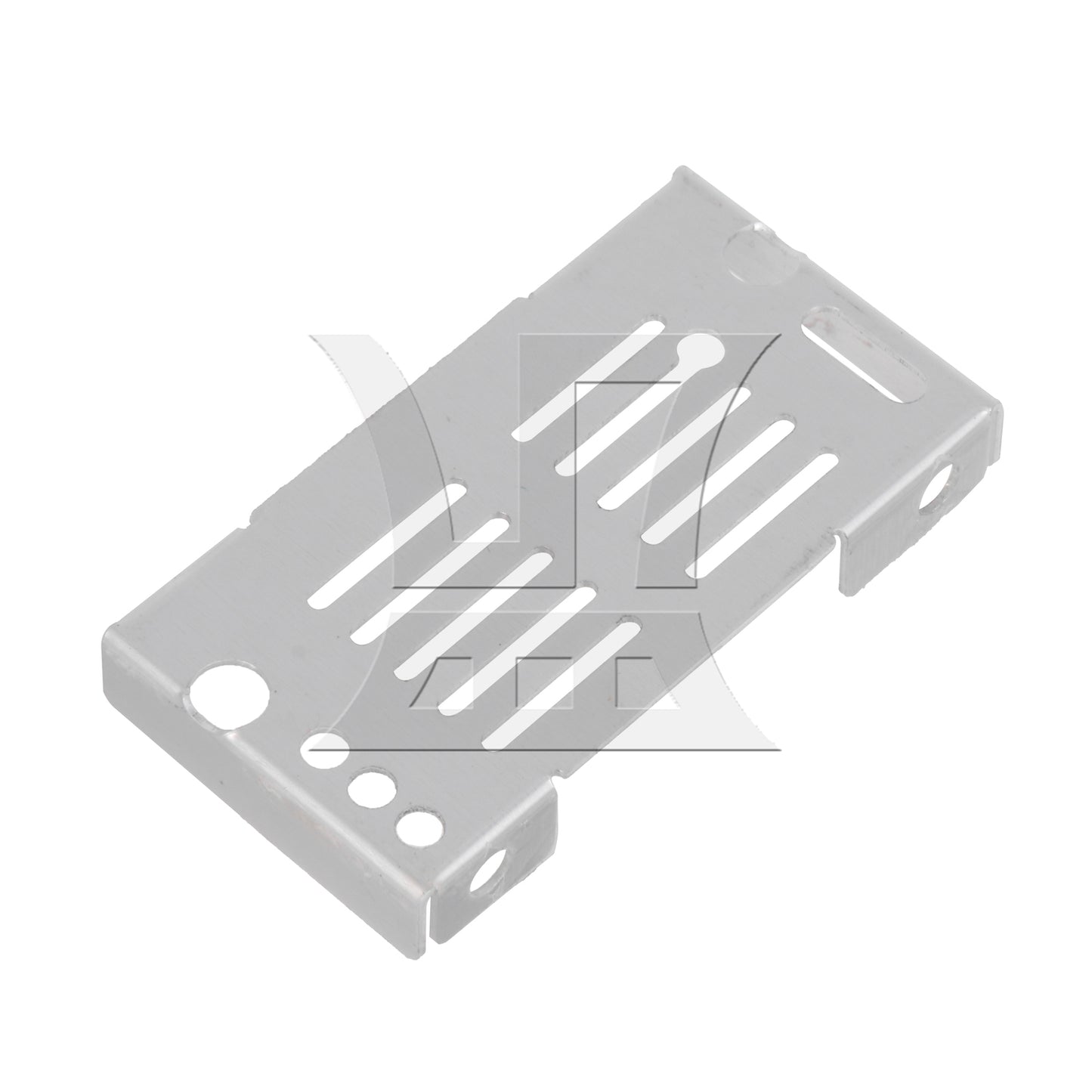

Appearance: With case
Rectifier mode: synchronous rectifier
Type: non-isolated buck module (BUCK)
Input voltage: 8-55V (limit 60V, please leave allowance)
Output voltage: 1-35V continuously adjustable, step-down power supply input voltage should always be greater than the output voltage and the minimum of pressure 1V, input power = output power + losses (energy conservation principle)
Output Current: 15A (MAX) for a long time within the standard 10A current is a maximum current under certain conditions (found 12 drop 5V) actual output current size is not fixed, the input and output pressure, temperature and other conditions
Output power: natural cooling power of the long-term well-ventilated 100W, enhance heat dissipation up to 200W, such as long working hours please leave a margin note and make the cooling temperature.
Working temperature: -10 ~ + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 94% (efficiency and input and output voltage difference, the output current related)
Short circuit protection: Yes (short circuit output current is 0)
Reverse polarity protection:Yes

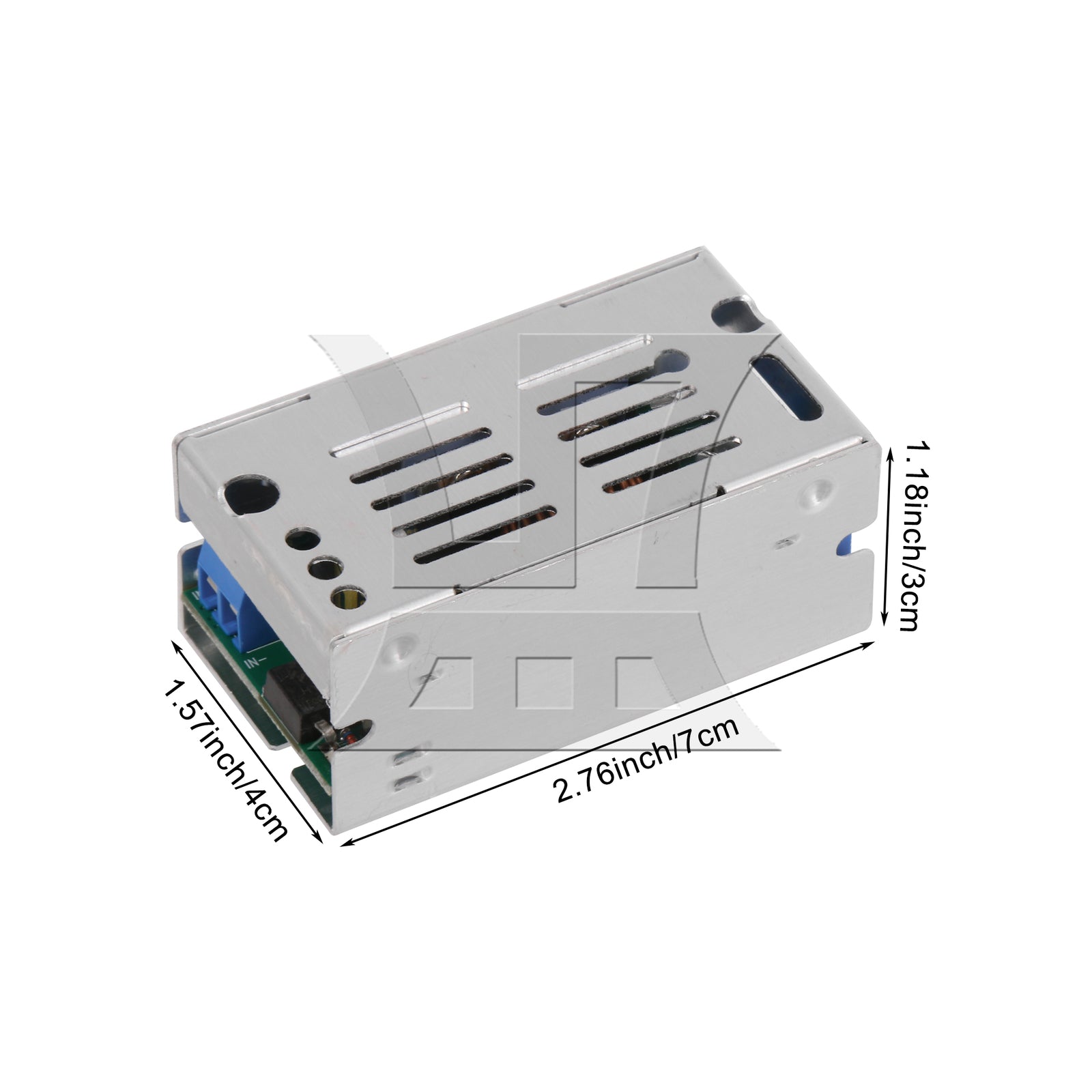

Dimension:7 x 4 x 3cm/2.76 x 1.57 x 1.18"(L x W x H)
Input voltage: 8-55V (limited to 60V)
Output voltage: 1-32V continuously adjustable
Output current: normal 10A, maximum 15A
Adjustable resistance: 94% efficiency can be achieved at 100K
Weight:80g
Purpose: Suitable for college students, engineers, technicians, factory DIY, electronics enthusiasts and other personnel

Note: Not suitable for running 18VDC water pumps on 36VDC 250W solar panels.
The solar power supply is unstable, and the module is not suitable for use with solar panels.

Package Include:
1x 15A DC/DC Converter Buck
