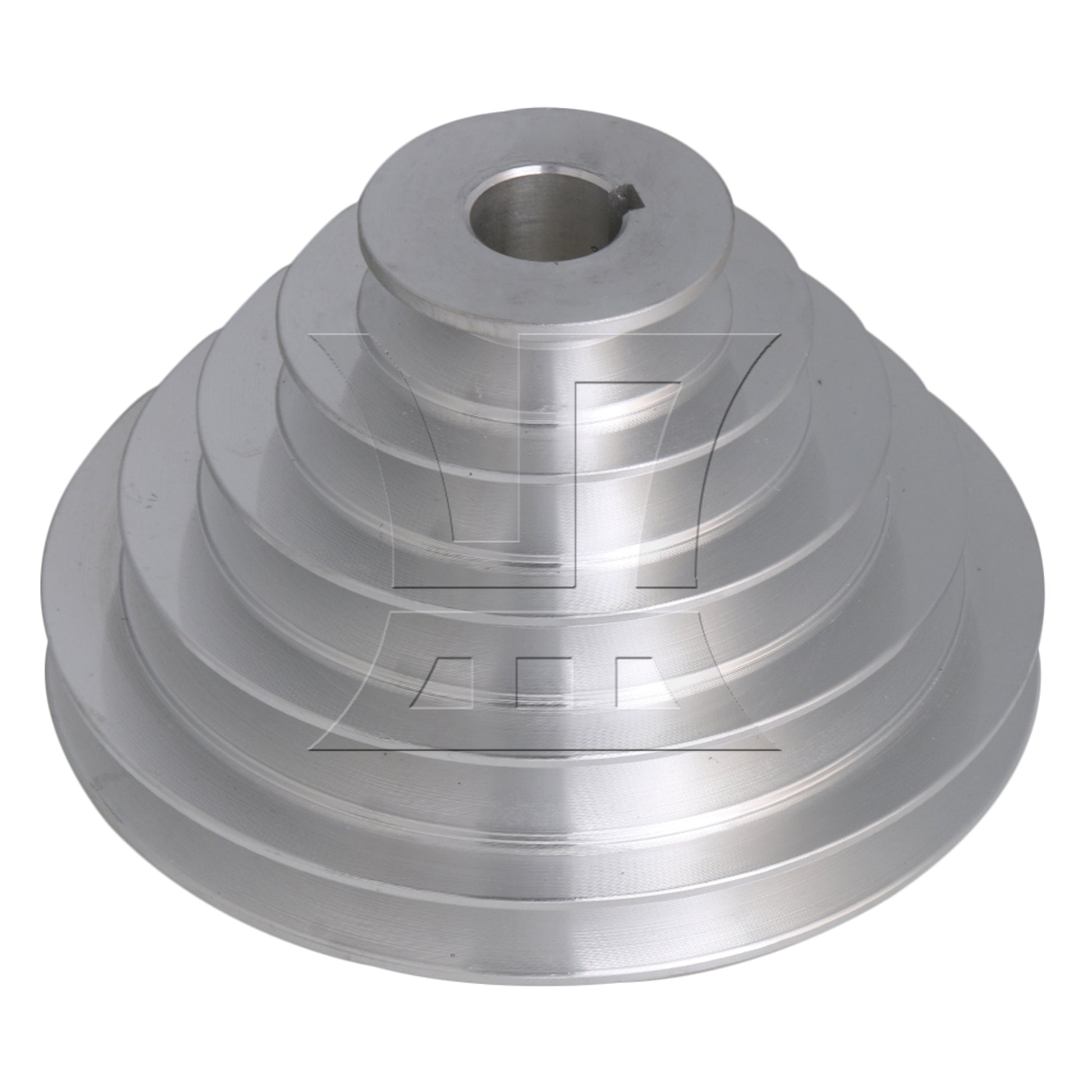

BQLZR 22mm Bore 5 Step A Type V-Belt Pulley Belt Outter Dia 54-150mm

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3. Made of aluminum material and long service life.
4. Hole diameter 22mm, 5-level outer diameter: 54mm, 76mm, 102mm, 128mm, 150mm, 5-slot design can be applied to different speed ratio requirements.
5.V-type 5-speed motor shaft drive pulley can be used for all types of machines. It can be adapted for different speed requirements.
6. Suitable for A-type V-belts and timing belts. The A-type pulley has cushioning, strong damping ability and low noise.

Installation method:
1. After receiving the pulley, put the pulley on the fire and bake for 2 minutes
2. Align the keyway of the pulley and the motor shaft
3. When knocking, you must put a damping block on it, otherwise the pulley will be easily damaged.

Specifications:
Material:Aluminum
Color:Silver
Brand name: BQLZR

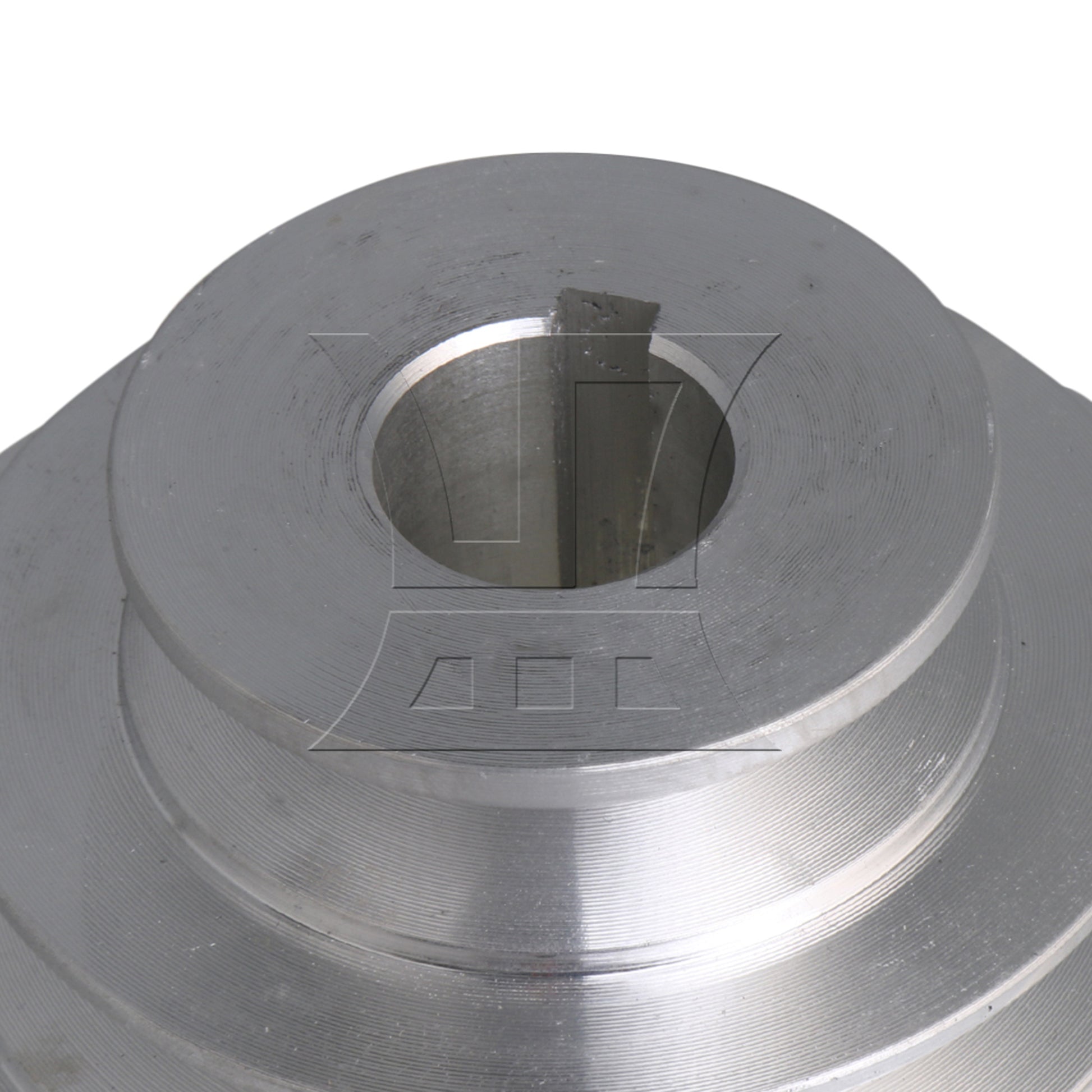

Hole Dia: 22mm
Height: 82mm
Outer Dia: 54,76,102,128,150mm

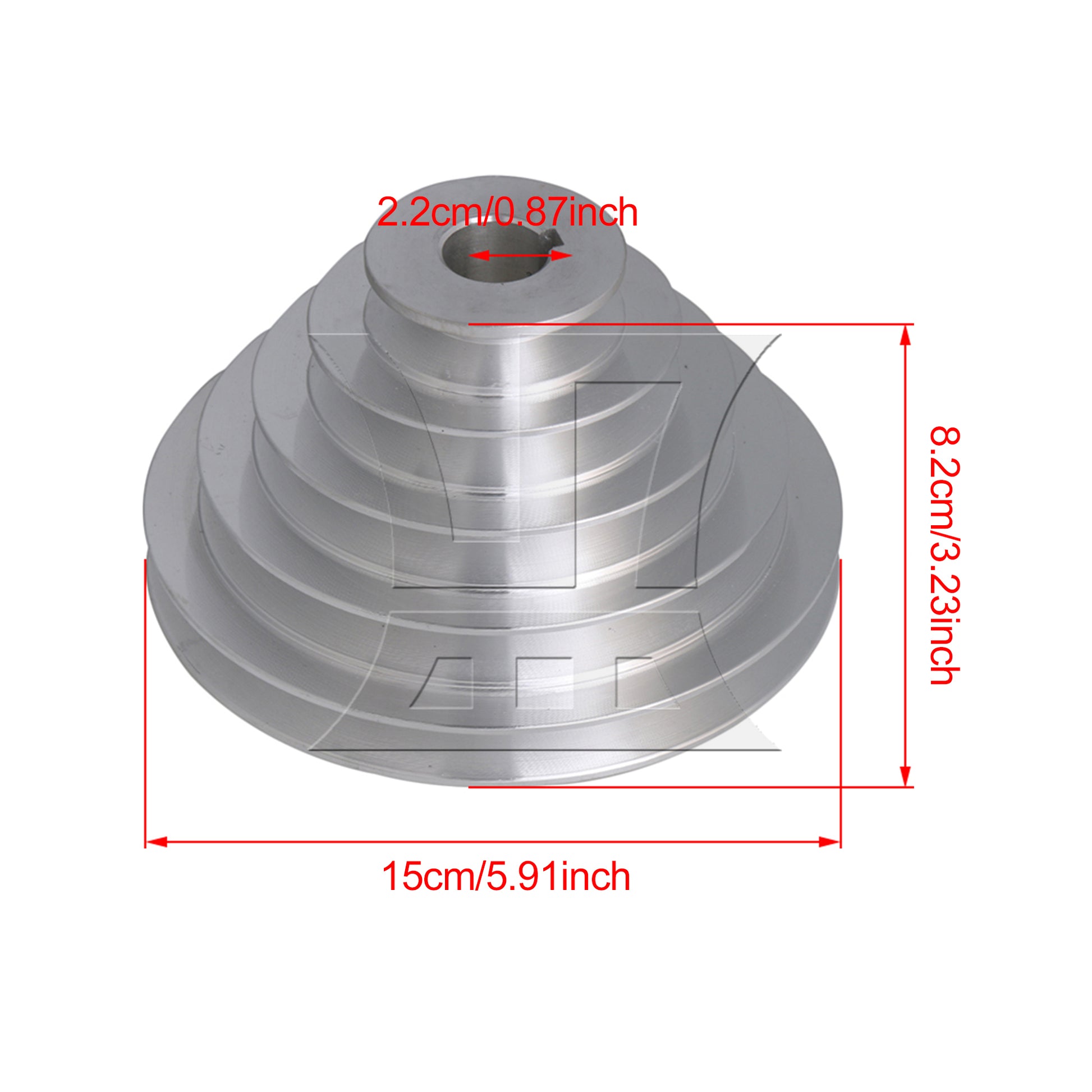

Size:15x8.2cm/5.9x3.23Inch(DxH)
Weight:585g
