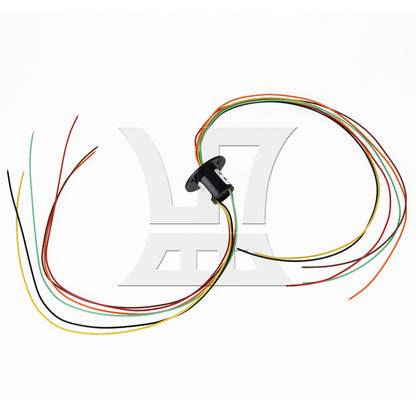

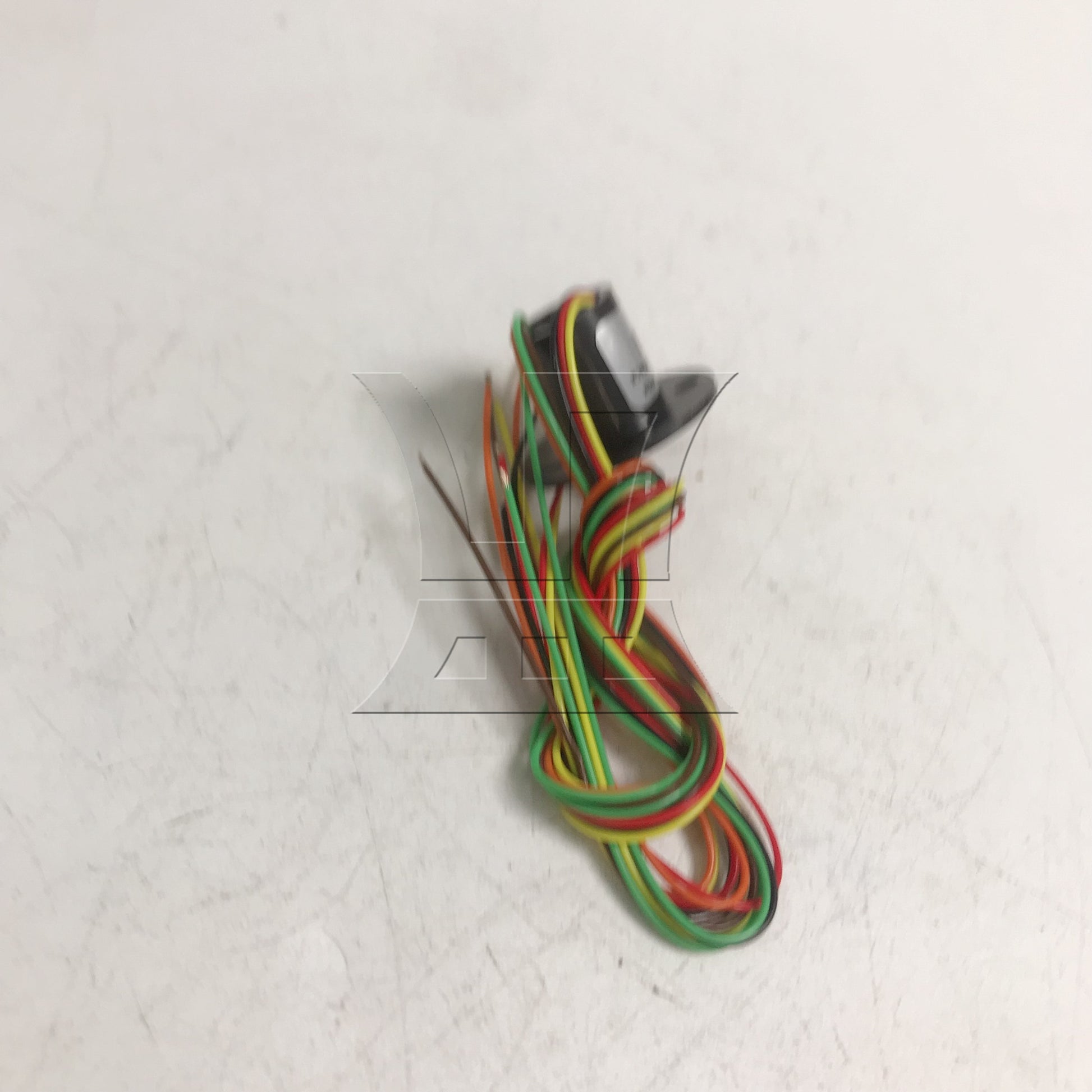

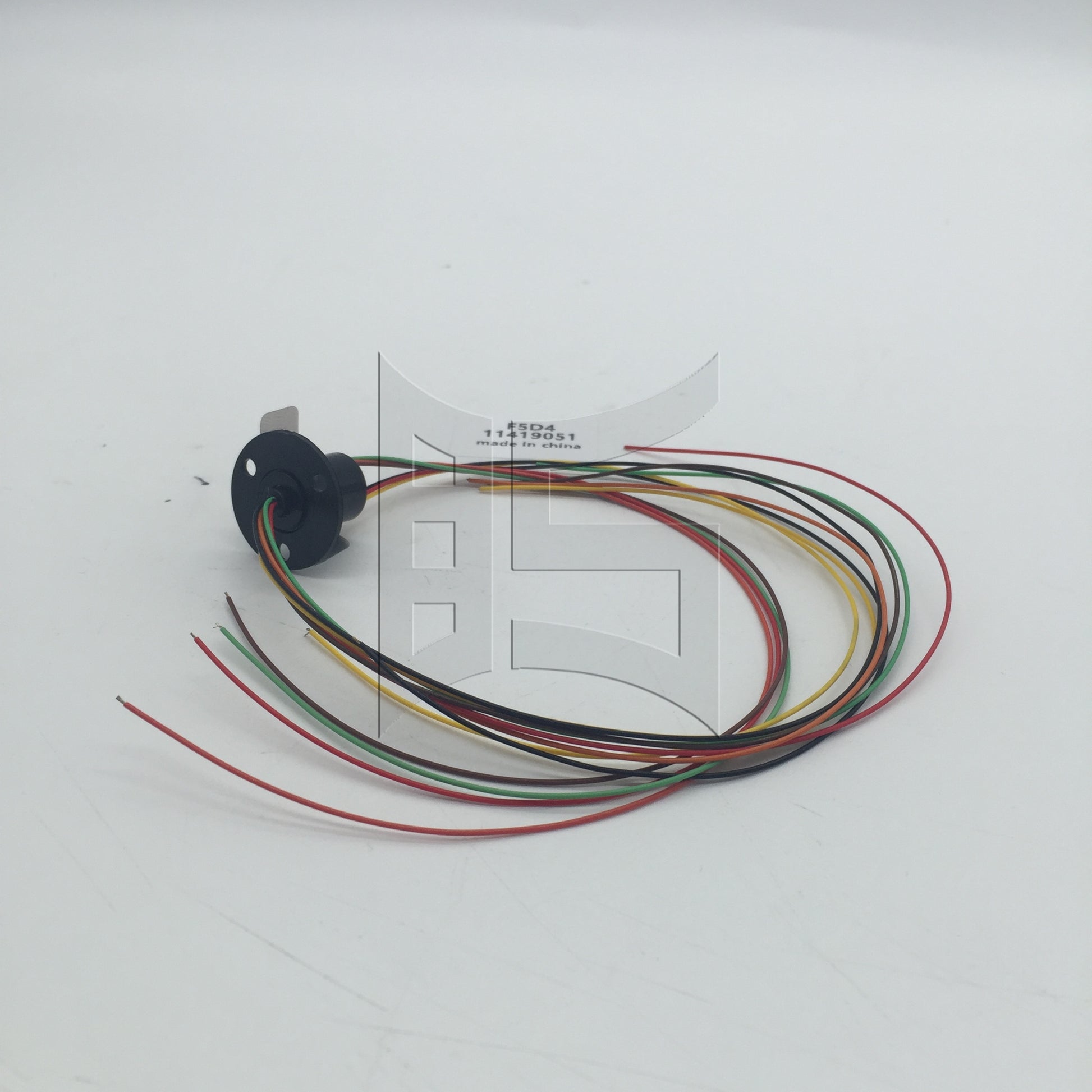

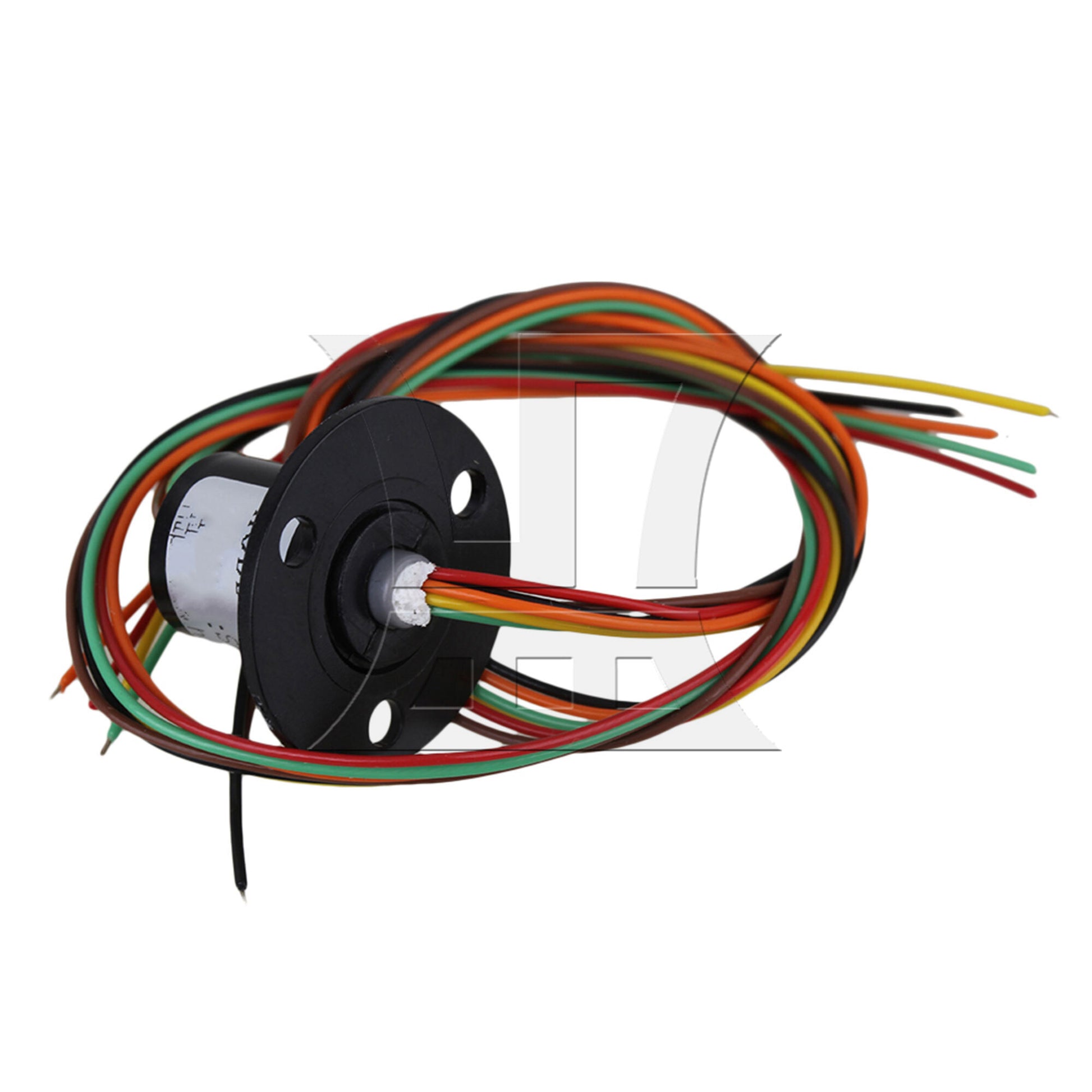

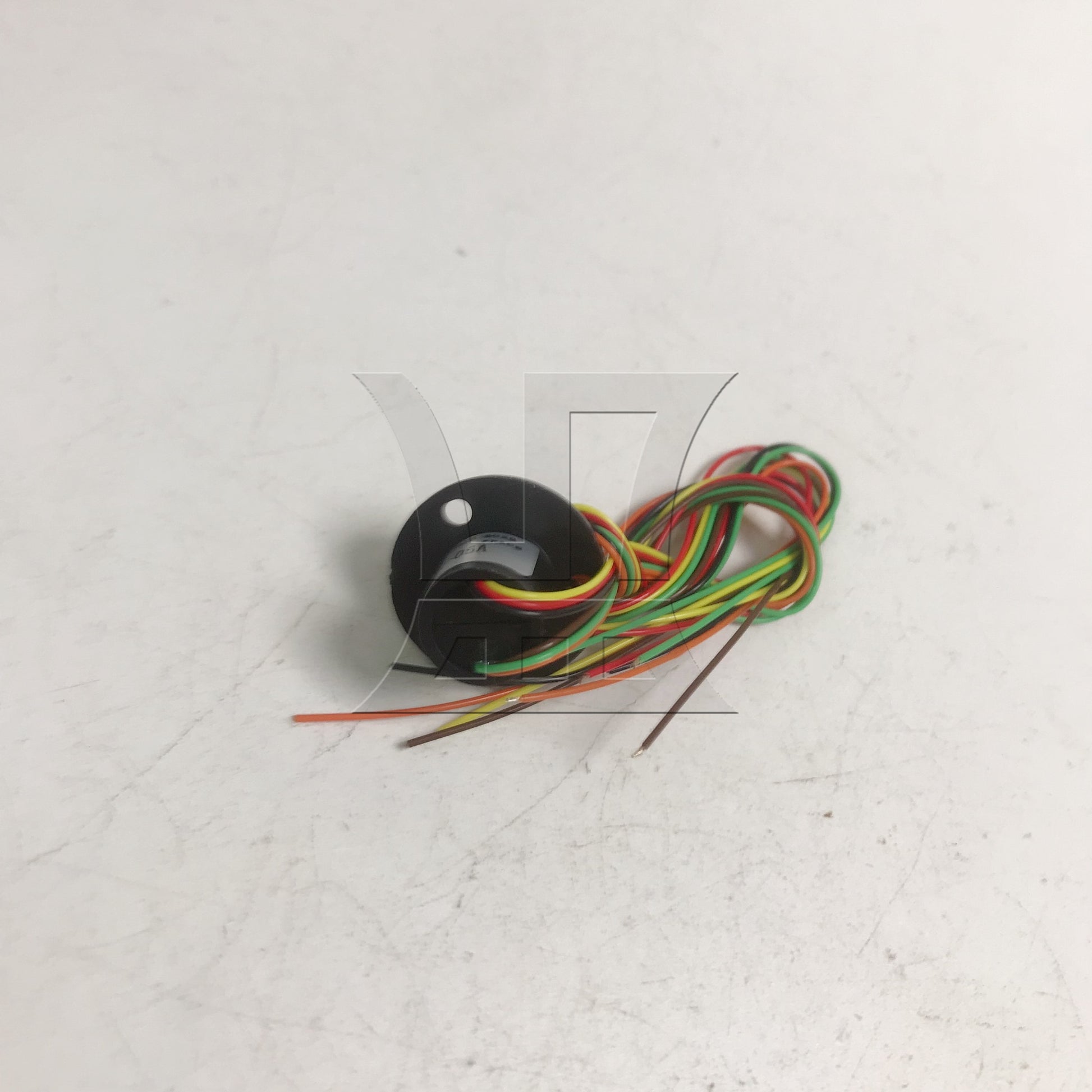

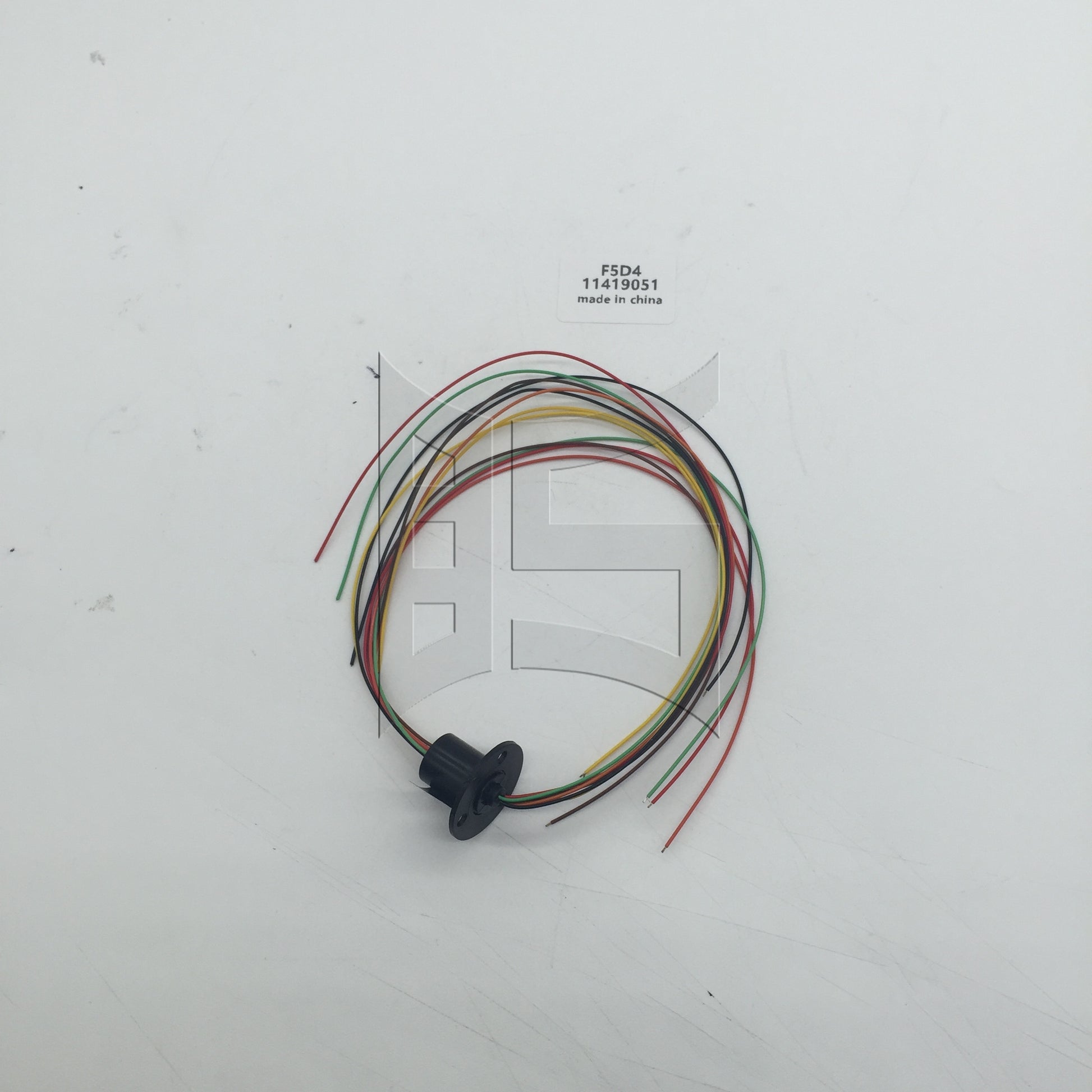

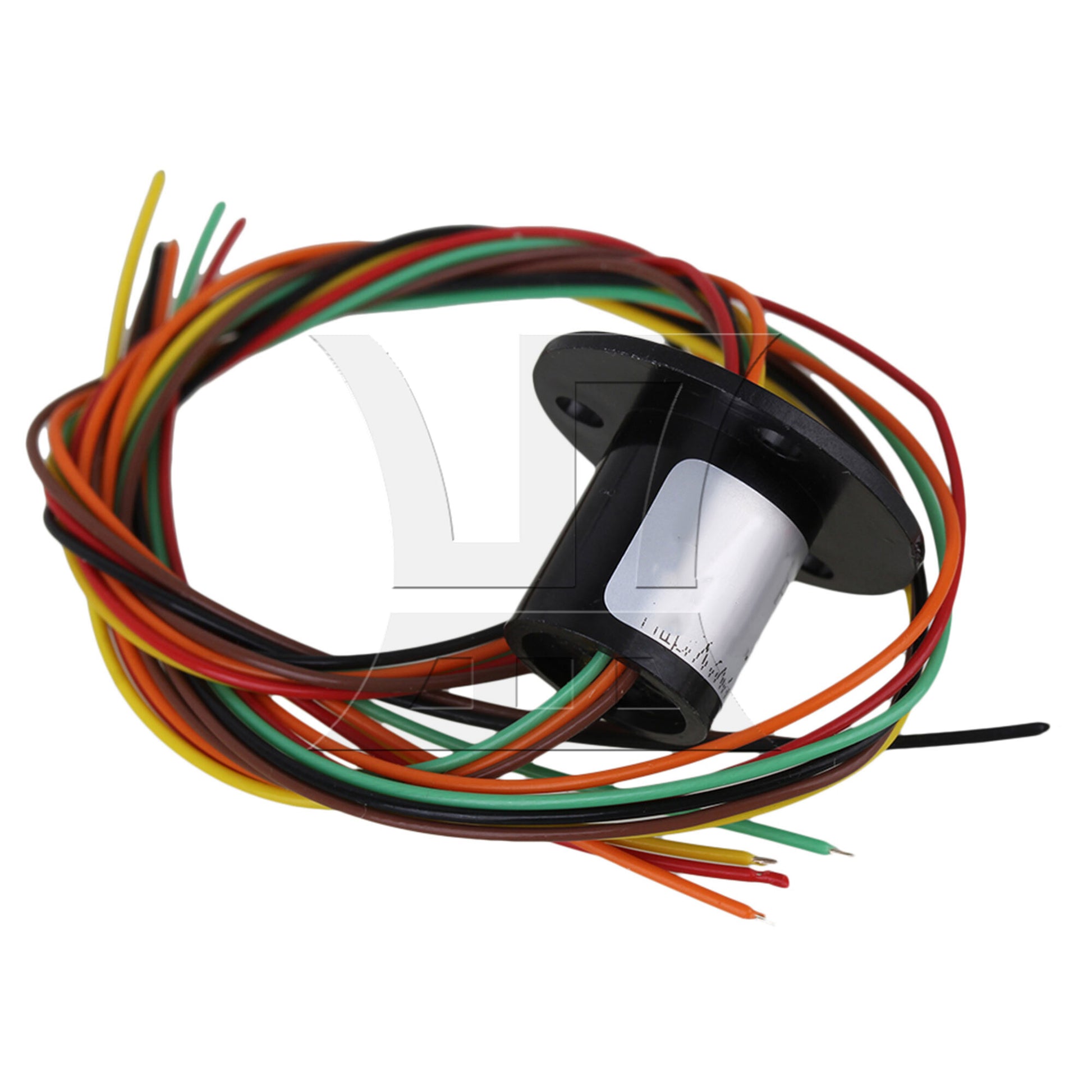

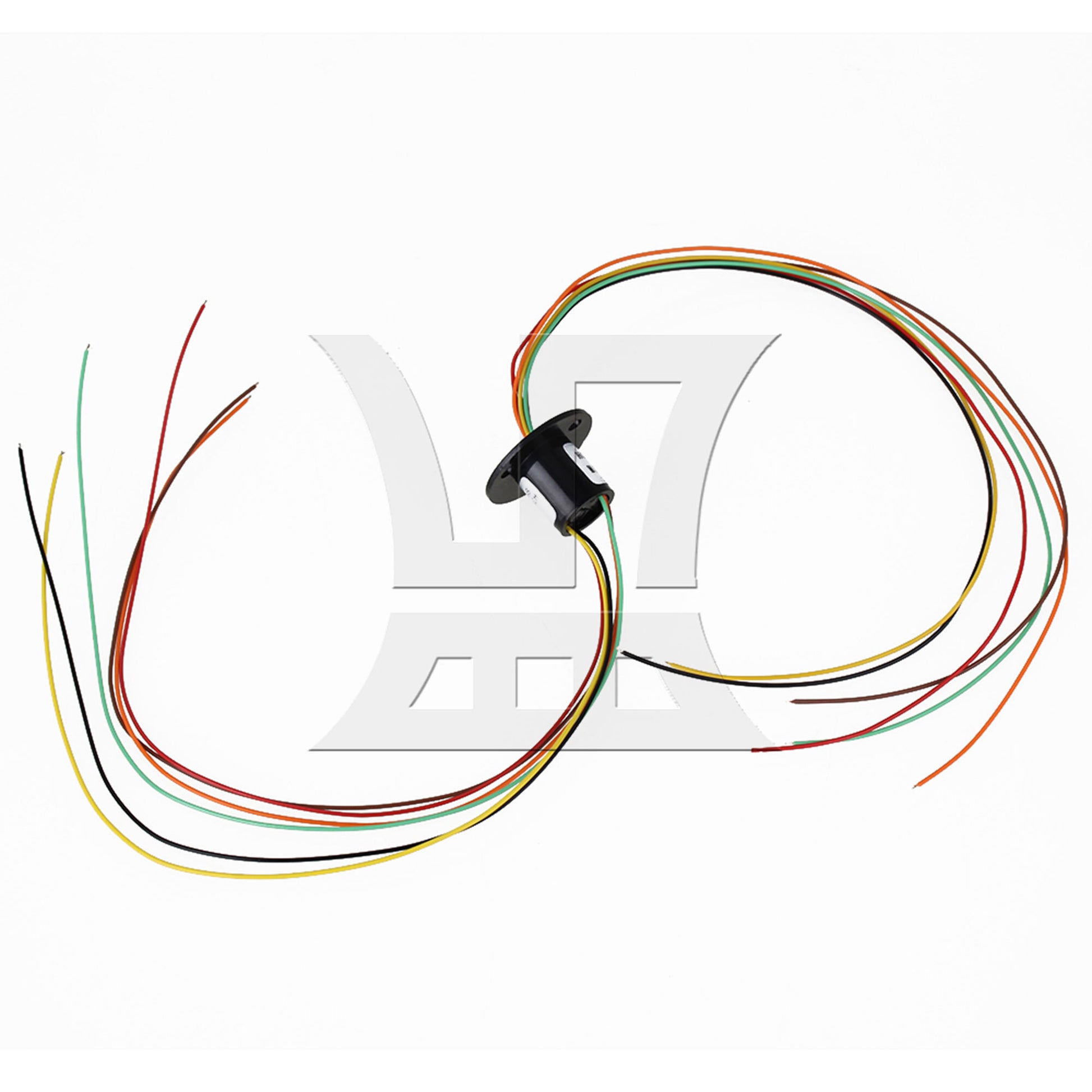

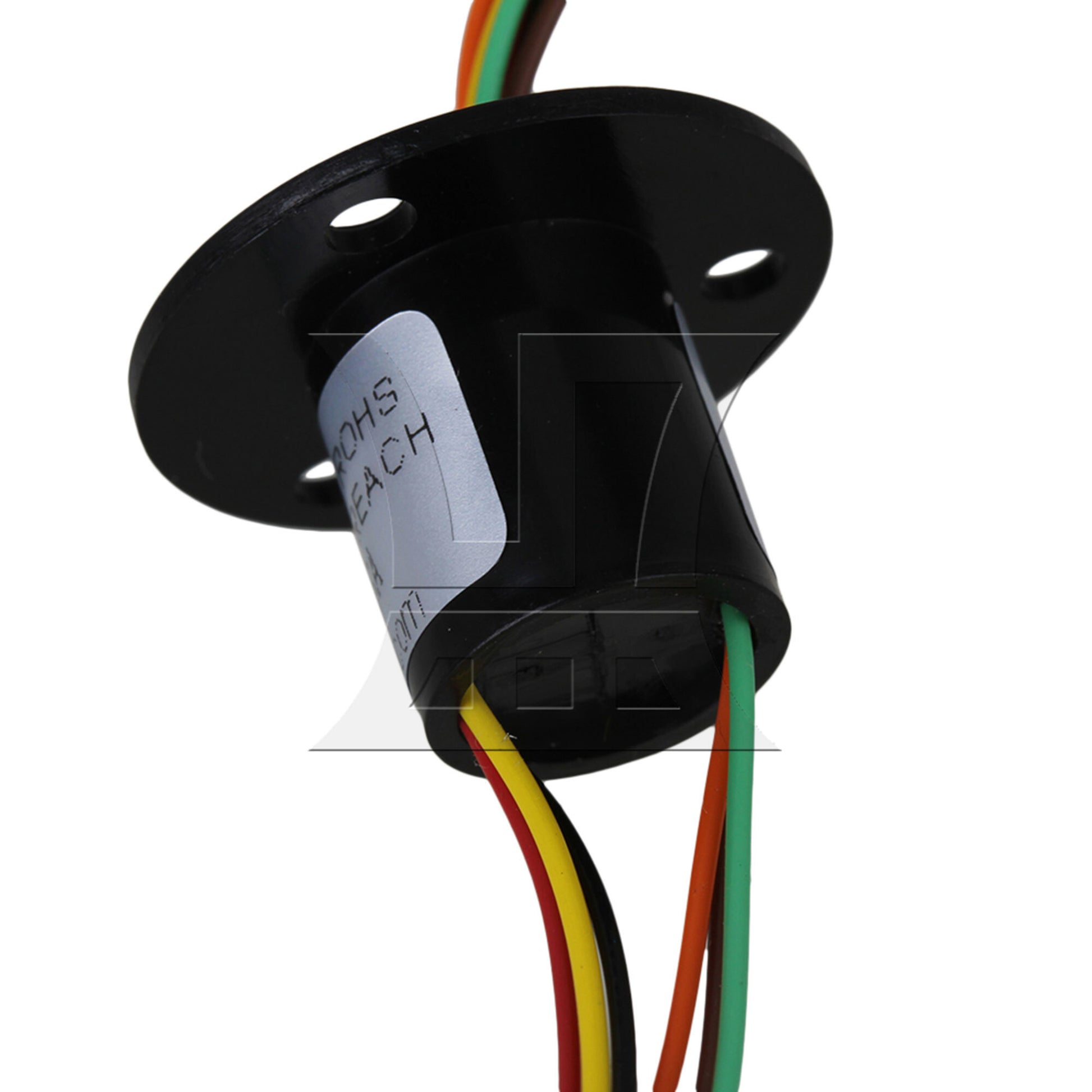

BQLZR 240V Black Metal 6 Wires 250RPM Equipment Capsule Slip Ring Hat Type

Note: The color of the item may vary slightly due to photography and your own computer

Features:
Low temperature resistance, wide operating temperature.
Can be adapted to the larger temperature difference between the work environment.
Application: security surveillance PTZ, photography, robots, rotating work platforms, assembly line production, industrial control equipment.

Introduction:
Capsule slip ring is an electromechanical part which can transfer electric current and data signal from fixed device to rotating device, also called conductive slip rings, brushes, slip rings, Rotary electrical joint or electrical turn. Slip ring can be applied to Unrestricted continuous rotation mechanical and electrical systems which request to transfer current or data signal. It improves machine performance, simplify system design and avoid the damage during wire rotation.

Material: Metal and plastic
Color: Black
Pathway: 6 Wires
Contact materials: Gold

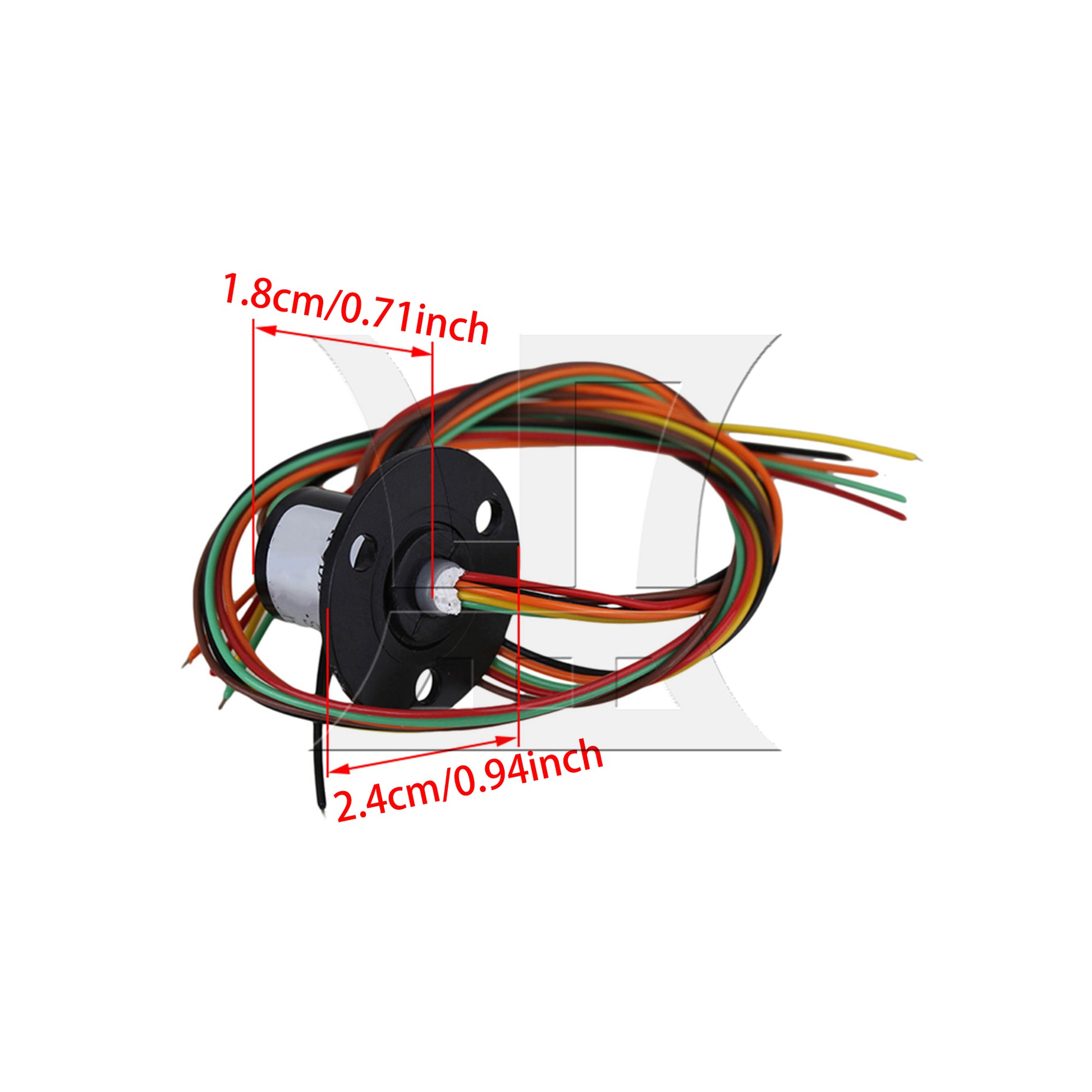

Ring body Size: 12.5x15mm/0.49 x 0.59" (L x Dia)
Lead length: 200MM

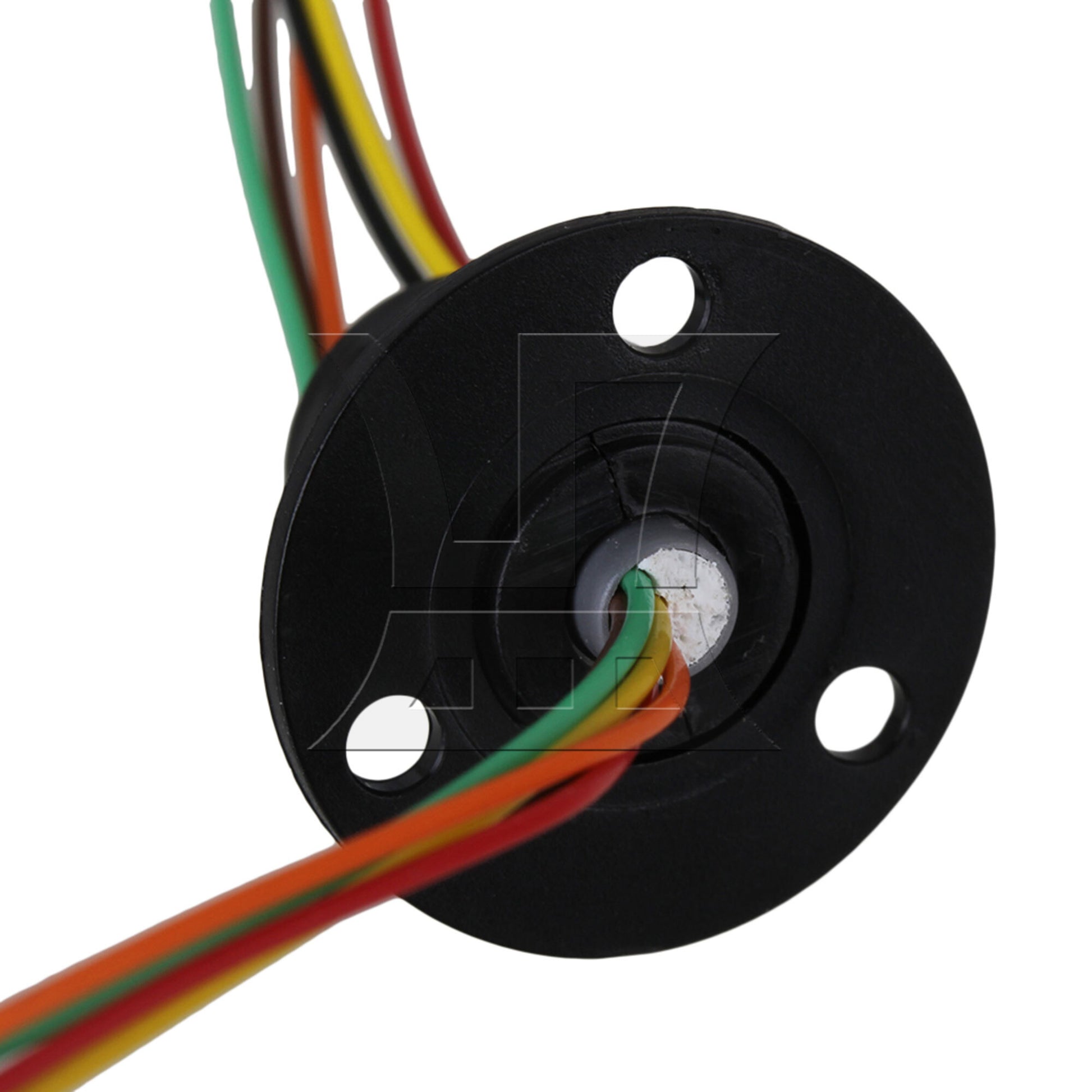

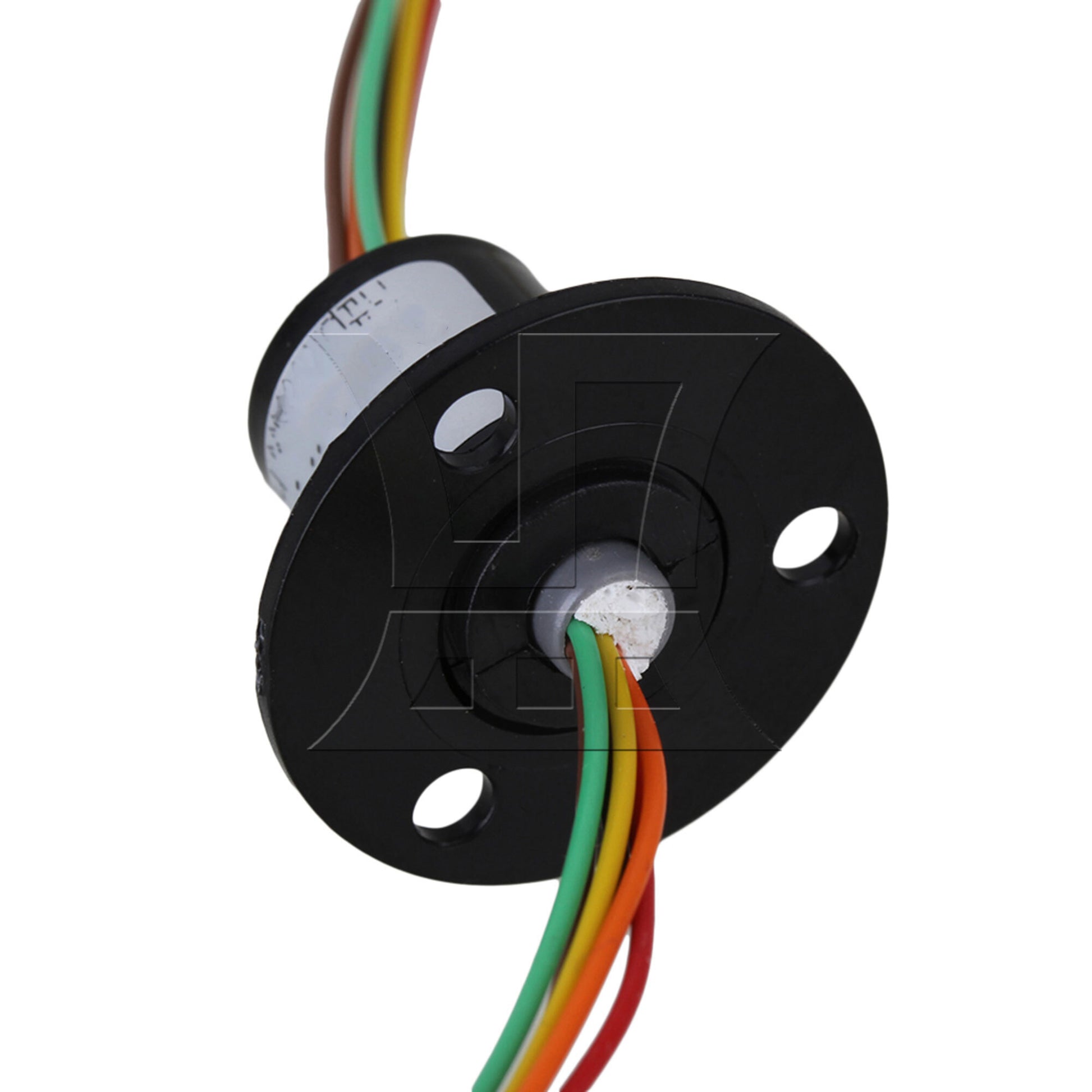

Flange diameter: 24mm
Rated voltage: 240VAC/DC
Working speed: 0-250RPM
Rated Current: 1.5-2A per circuit
Operating temperature: -20~60°C
Compressive strength: 500V@50Hz
Insulation Resistance: 1000 megohms@500VDC
Dynamic resistance: 10 milliohms
Working life: over 5 million cycles (depending on the working environment and speed)
Weight: 10g

Pacakge include:

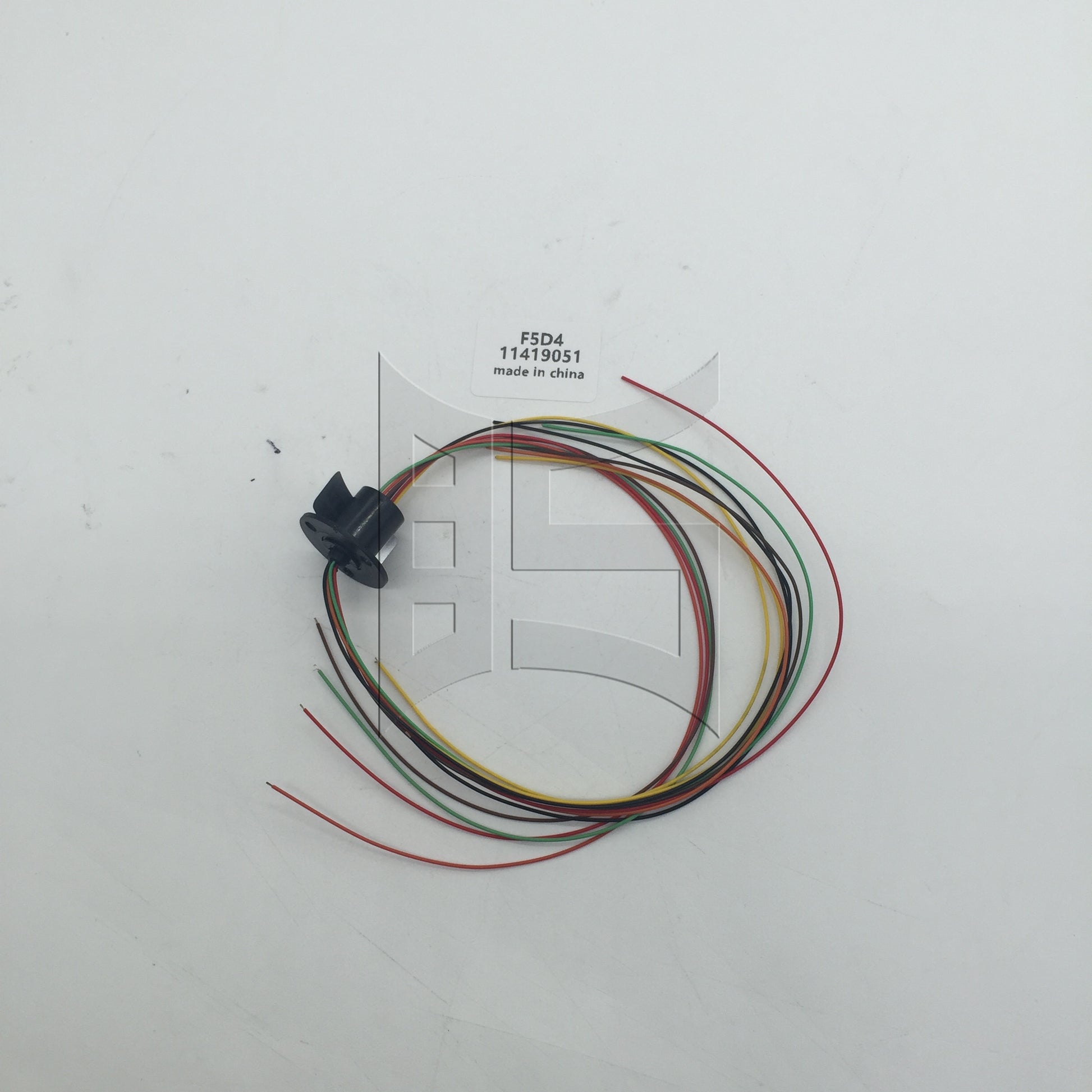

1 x Capsule slip ring
