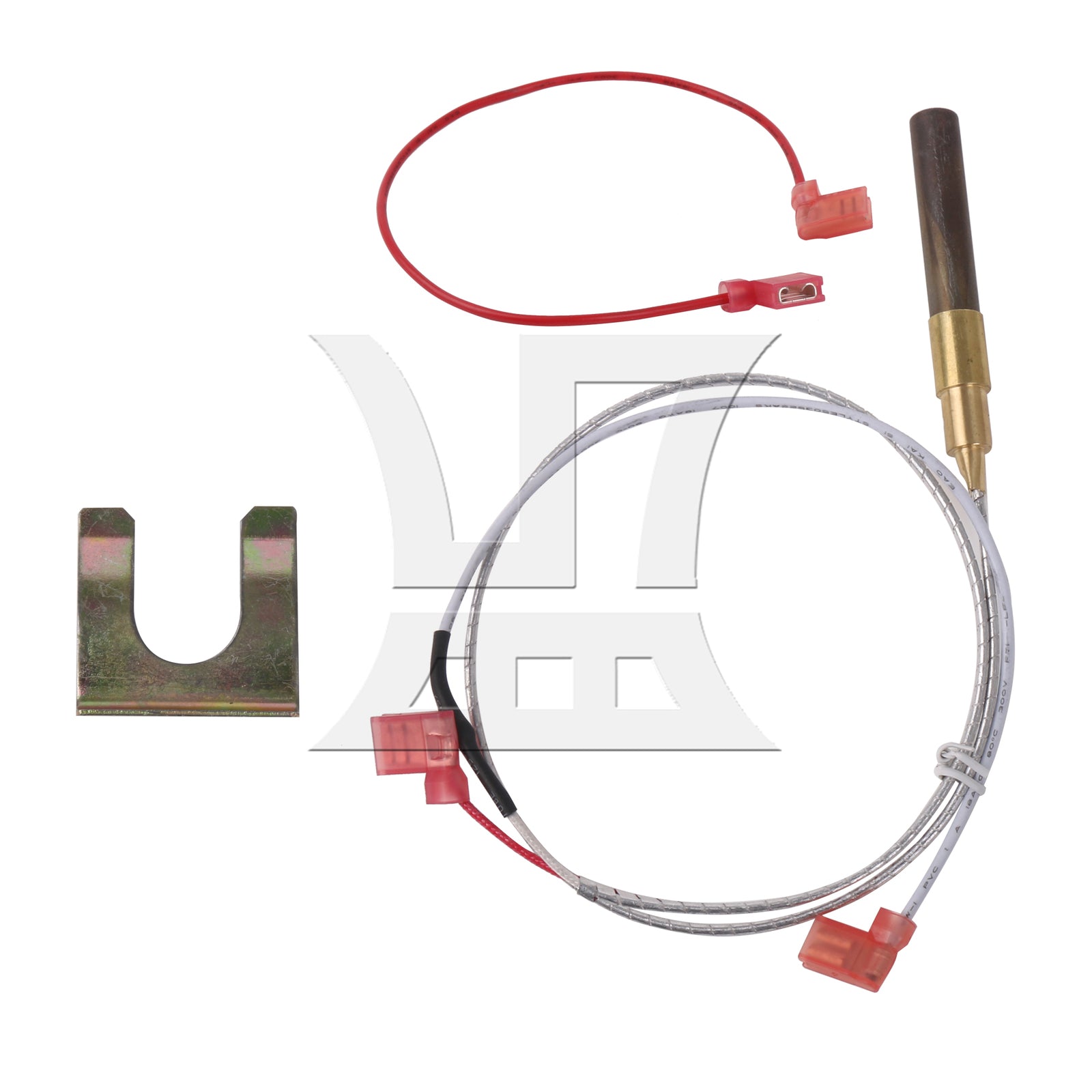

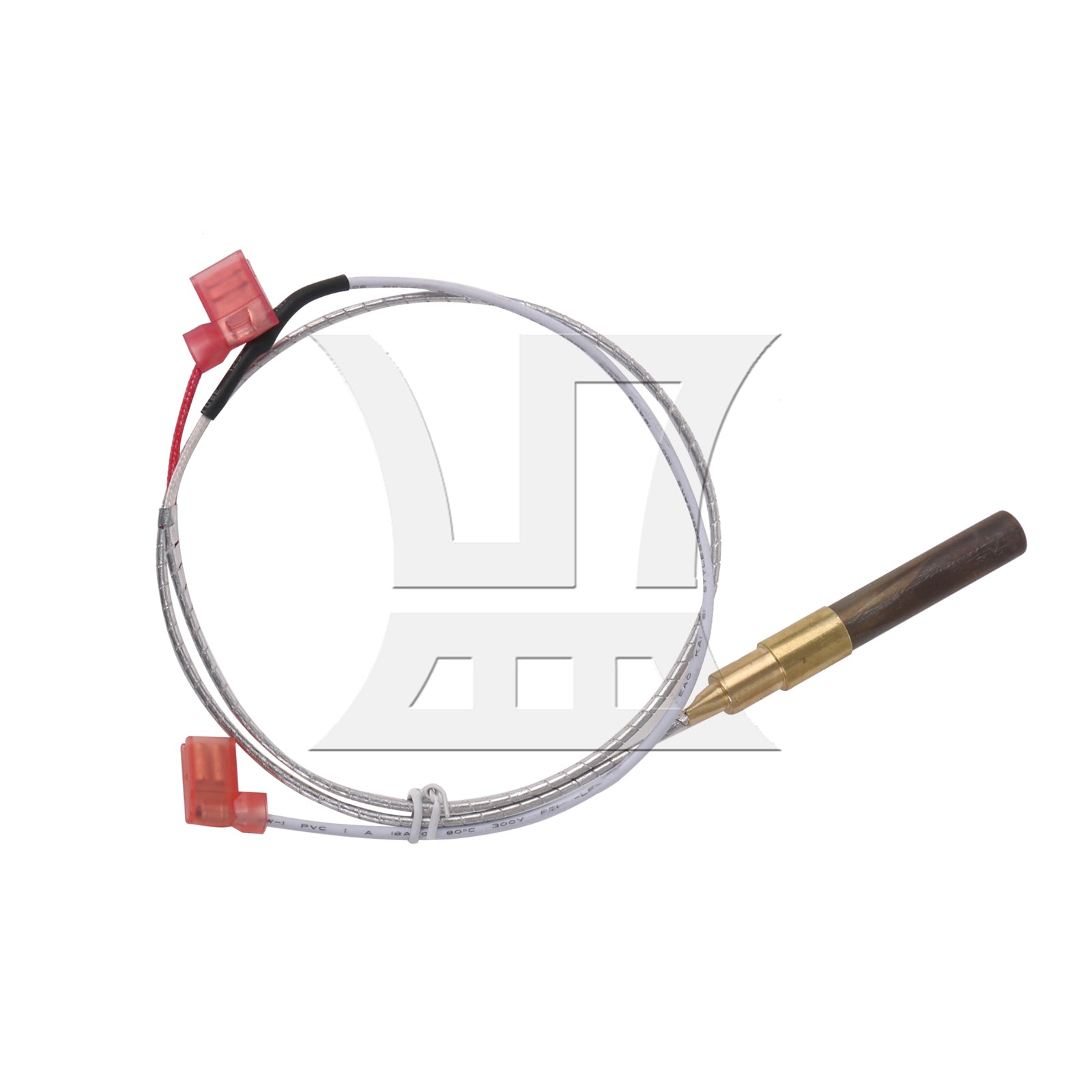

BQLZR 3 Pieces 6911197 Gas Water Heater Thermopile Part Replacement Parts

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Maximum operating temperature: 750 degrees; Rating: (650 degrees)≥750mV; Internal resistance: 3.0Ω±10%(20 degrees)
4.Compatible brands:
Replacement for Reliance、
Replacement for State,
Replacement for American Water Heater.
5.Replacement part codes: 6911197, 9007872005, 100094024.
6.Made of high quality raw materials, it has an extra long service life.
7.It can solve problems such as the water heater indicator light not always on and the thermocouple being damaged causing the water heater to not heat up.

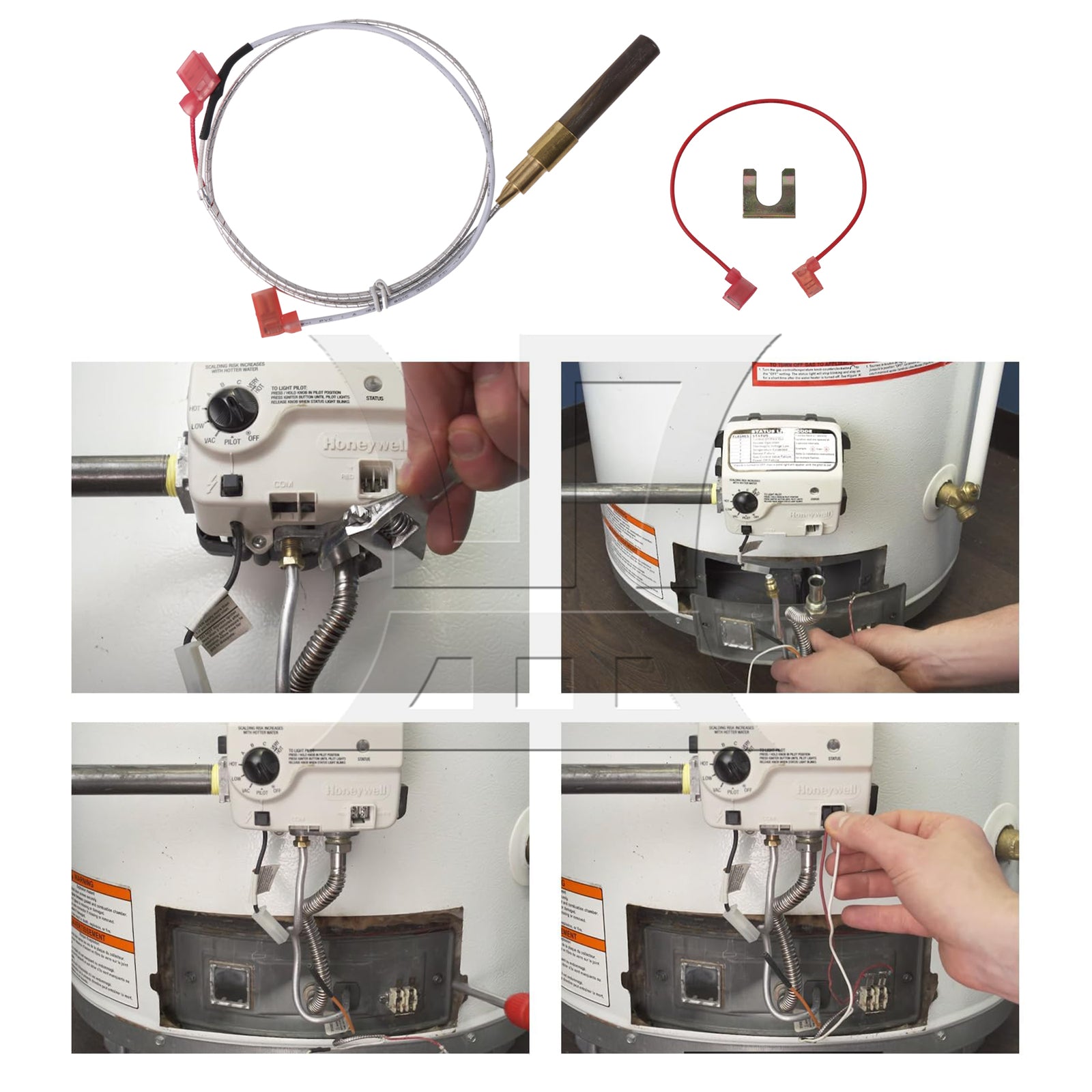

installation steps:
1. Turn off the gas supply.
2. Unplug all accessories from the gas valve.
3. Remove the burner assembly.
4. Remove the thermocouple from the ignition assembly.
5. Install new thermocouple.
6. Put everything back into position
7. Turn on the air source and check for leaks

Note: Please make sure the part number is correct before purchasing.
This product is not replacement for Reliance C3 FAIR and not replacement for C3 FVIR water heater.

Specifications:
Maximum operating temperature: 750 degrees
Rating: (650 degrees)≥750mV
Internal resistance: 3.0Ω±10%(20 degrees)
Material: Stainless Steel & Brass & Metallic Aluminum Covered Wire
Color: Multicolor
Brand name: BQLZR

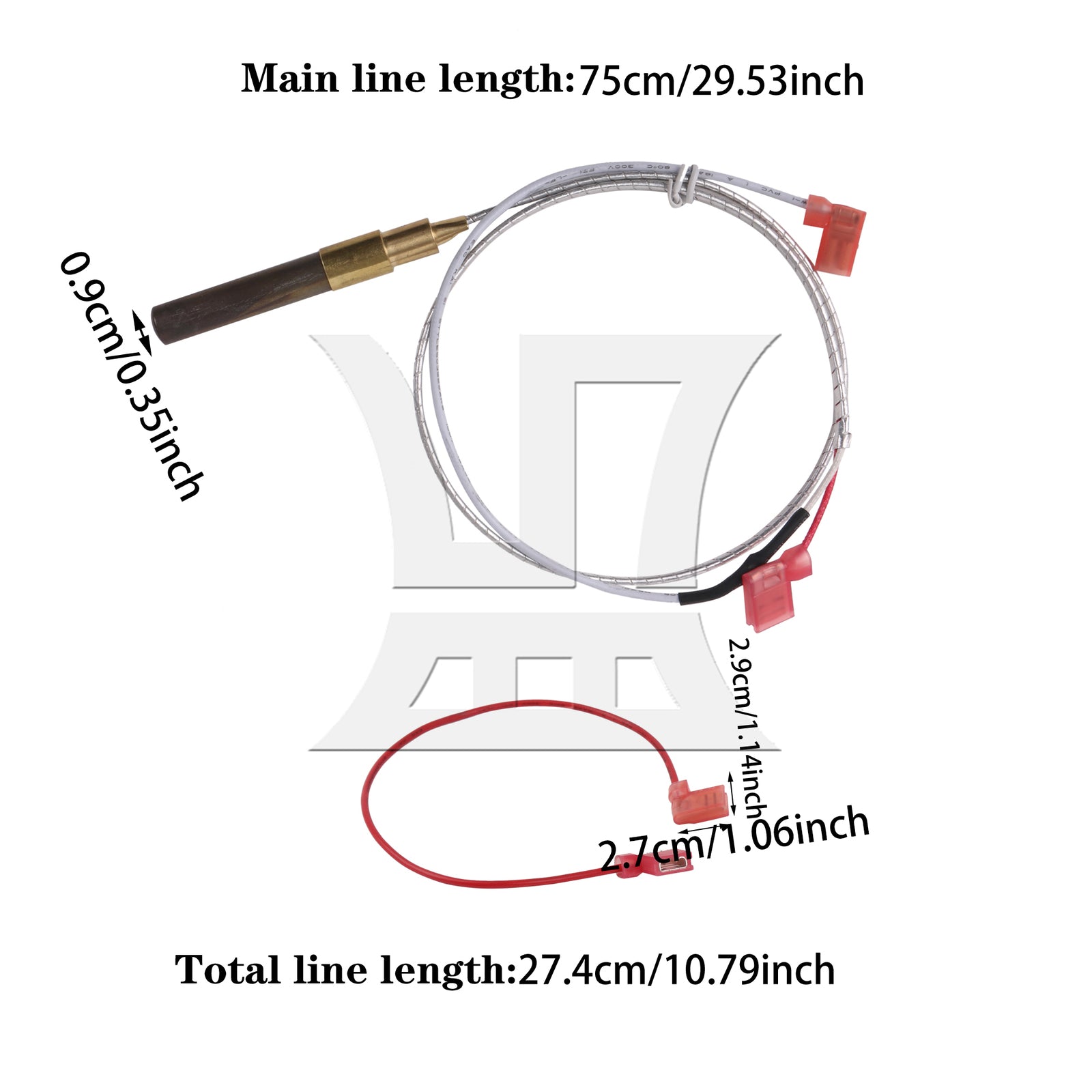

Size:
Total length of thermocouple main wire: 750mm/29.53"
Diameter: 9mm/0.35"

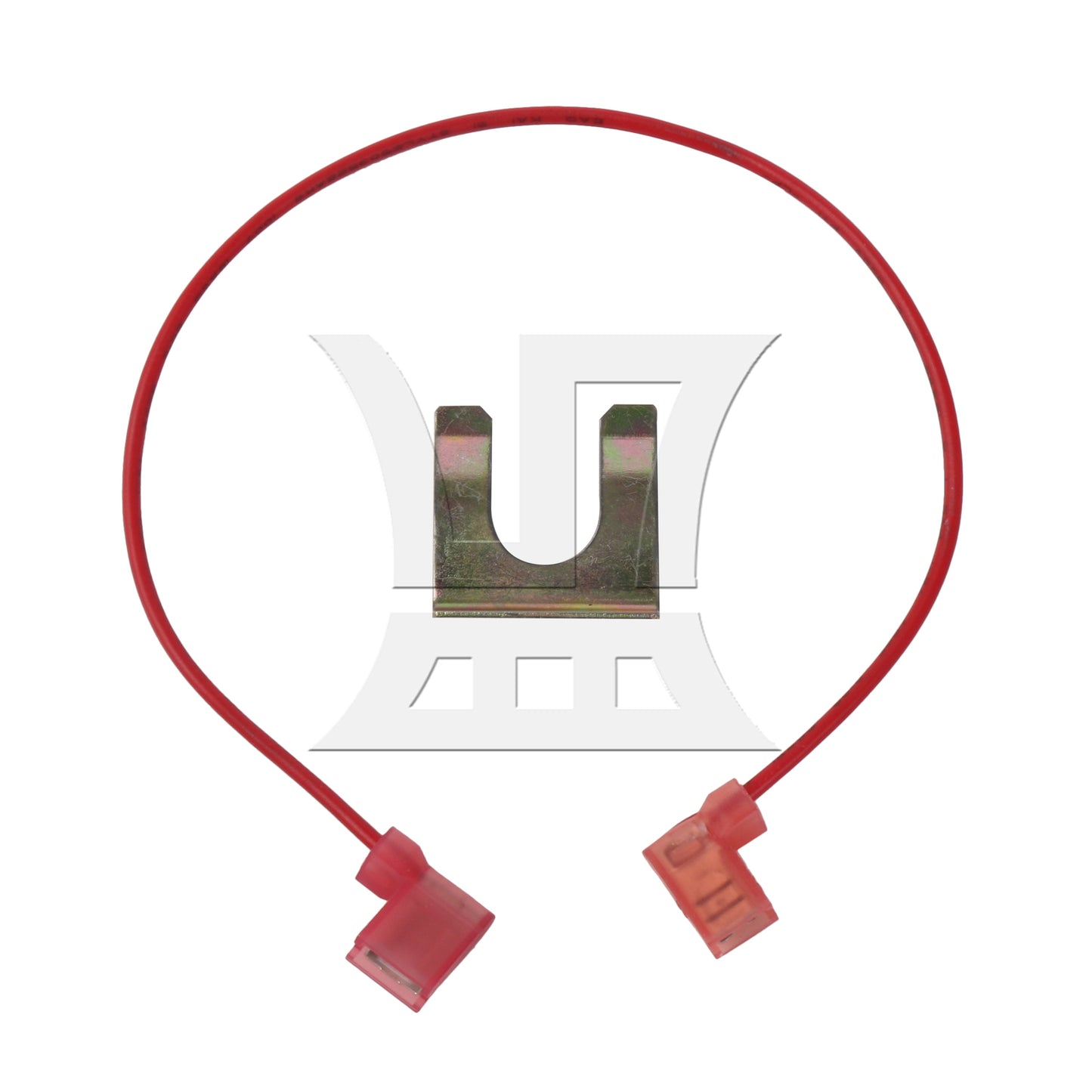

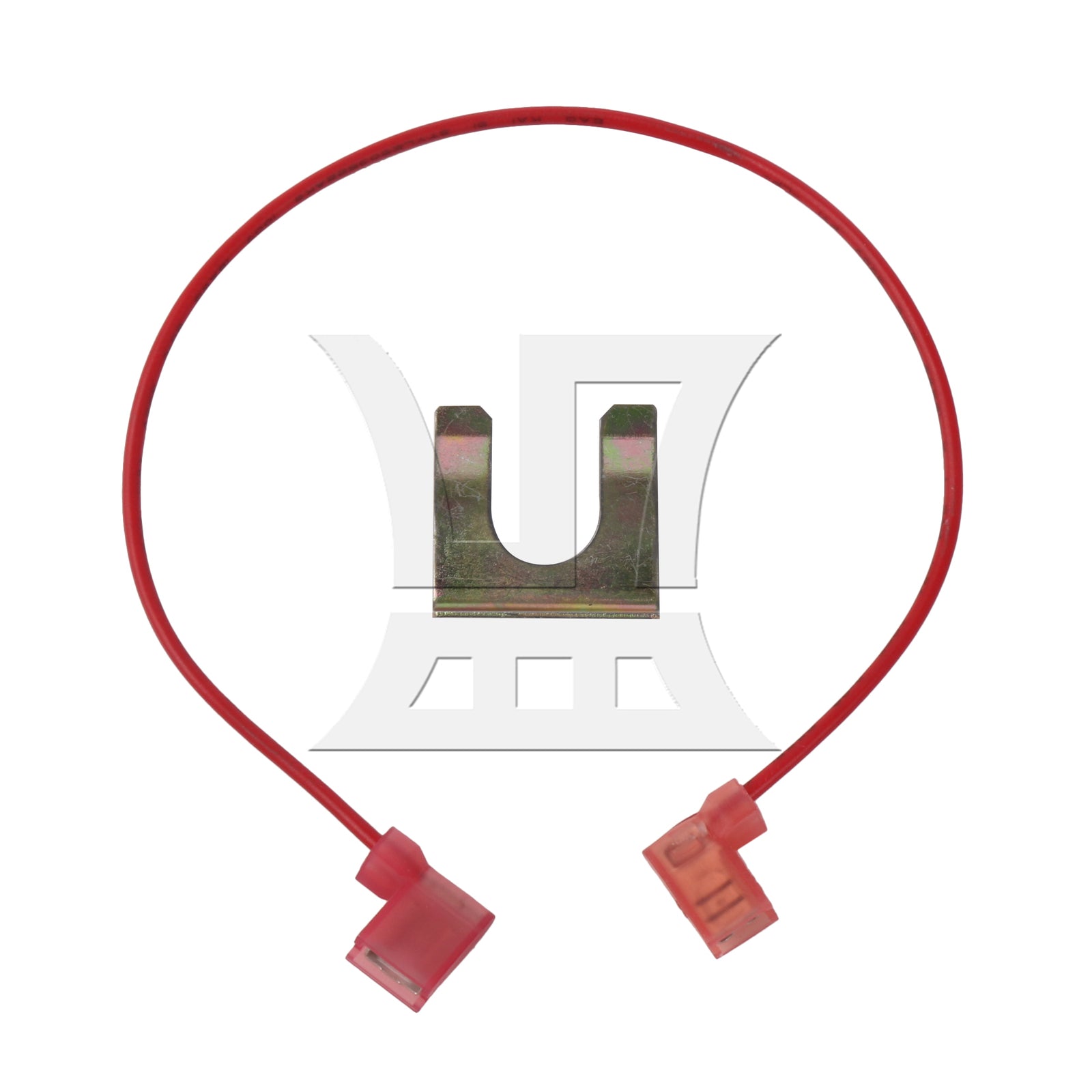

Total length of red wire: 274mm/10.79"
Insert: 27x29mm/1.06"x1.14" (LxW)
Weight: 48 g

Package include:

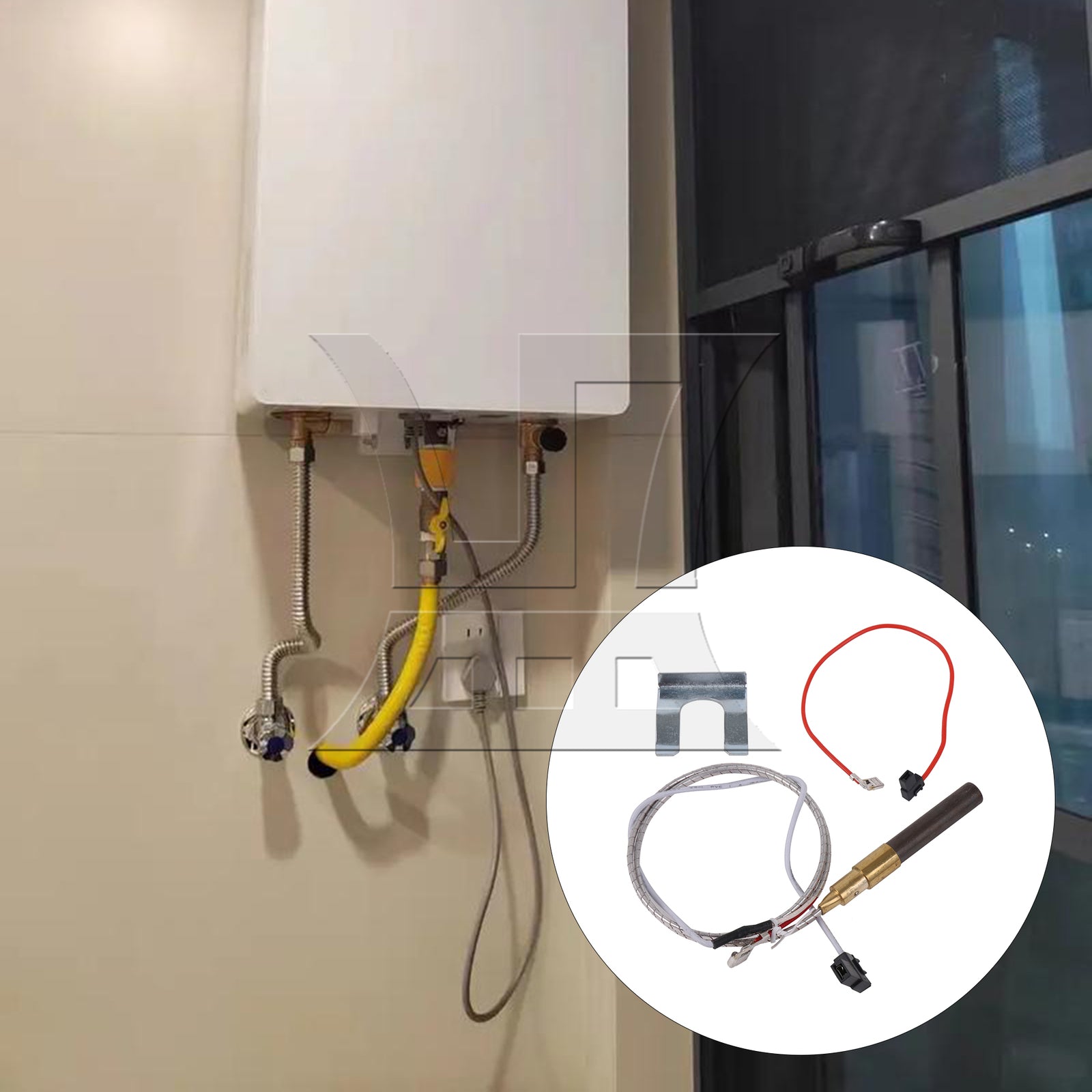

3 x Thermopile Assembly for Gas Water Heater
