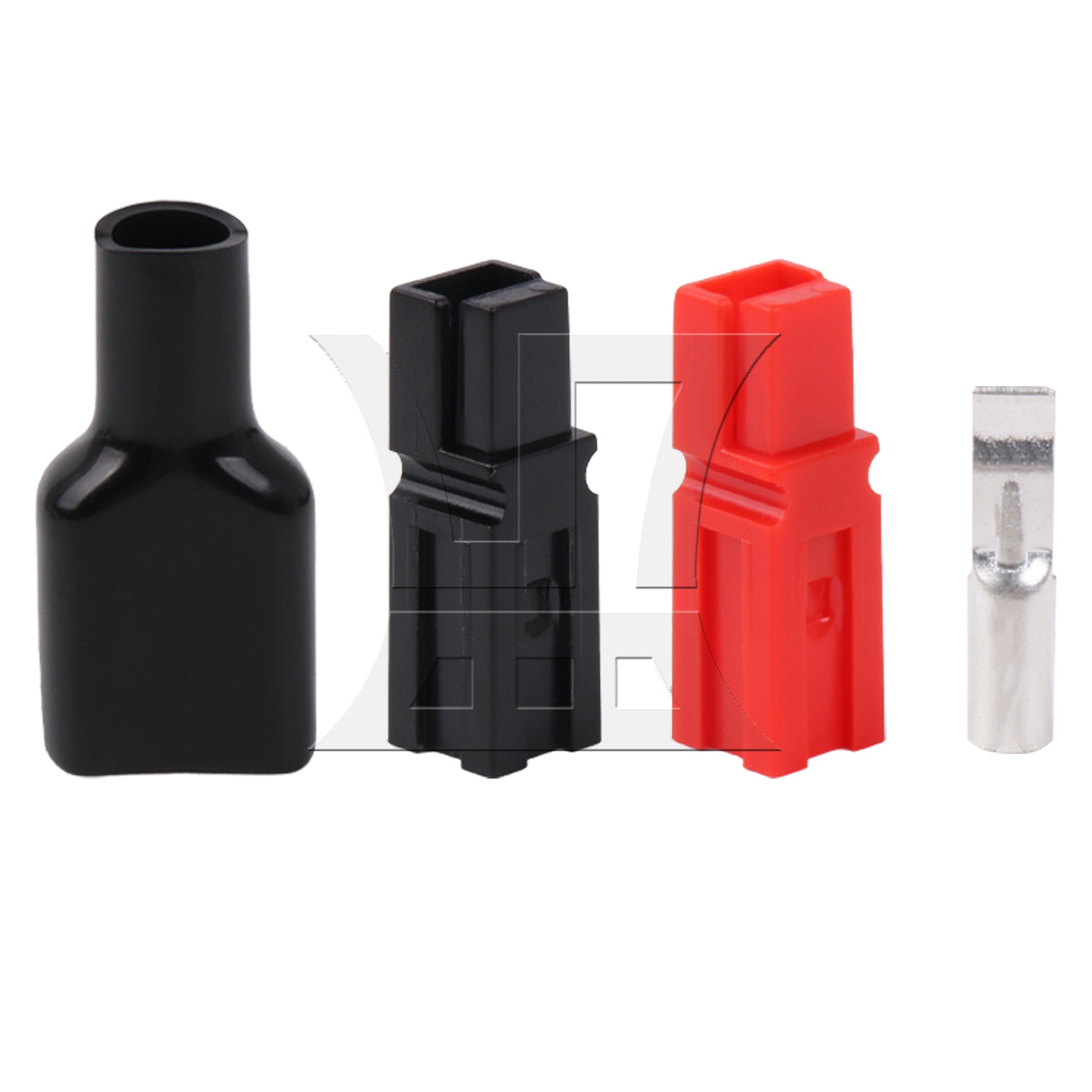

BQLZR 30Pieces Black Red Flame Retardant Sleeve Housings w/ Power Connector 30A 600V

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Powerpole Connectors: The outer shell is made of plastic material to ensure flame retardancy and insulation.
4.Replacement for ANDERSON connector 30A.
5.Easy and fast to use and install.
6.Flame Retardant Sleeve: Fix individual connectors in "keyed" assemblies, preventing configuration-like connection errors.

Specifications:
Rated current (amps): 30 A
Rated voltage (volts): 600 V
Contact wire size [AWG]: 14, 12, 10awg
Wire Insulation Diameter [inches]: 0.175 inches (4.45mm)
Medium contact resistance (micro ohms): <500
Insulation resistance voltage (AC/DC voltage): 2200V
Contact holding force (lbf): 25lbf
No load (contact/disconnect cycle): 10000
Download (hot swap 250 cycles @120V)
Average insertion force (pounds): 3-5lbf
Operating temperature: -20 to 105 degree
Flame resistance grade: UL 94-V0
Material: Plastic
Color: Black & Red
Brand name: BQLZR

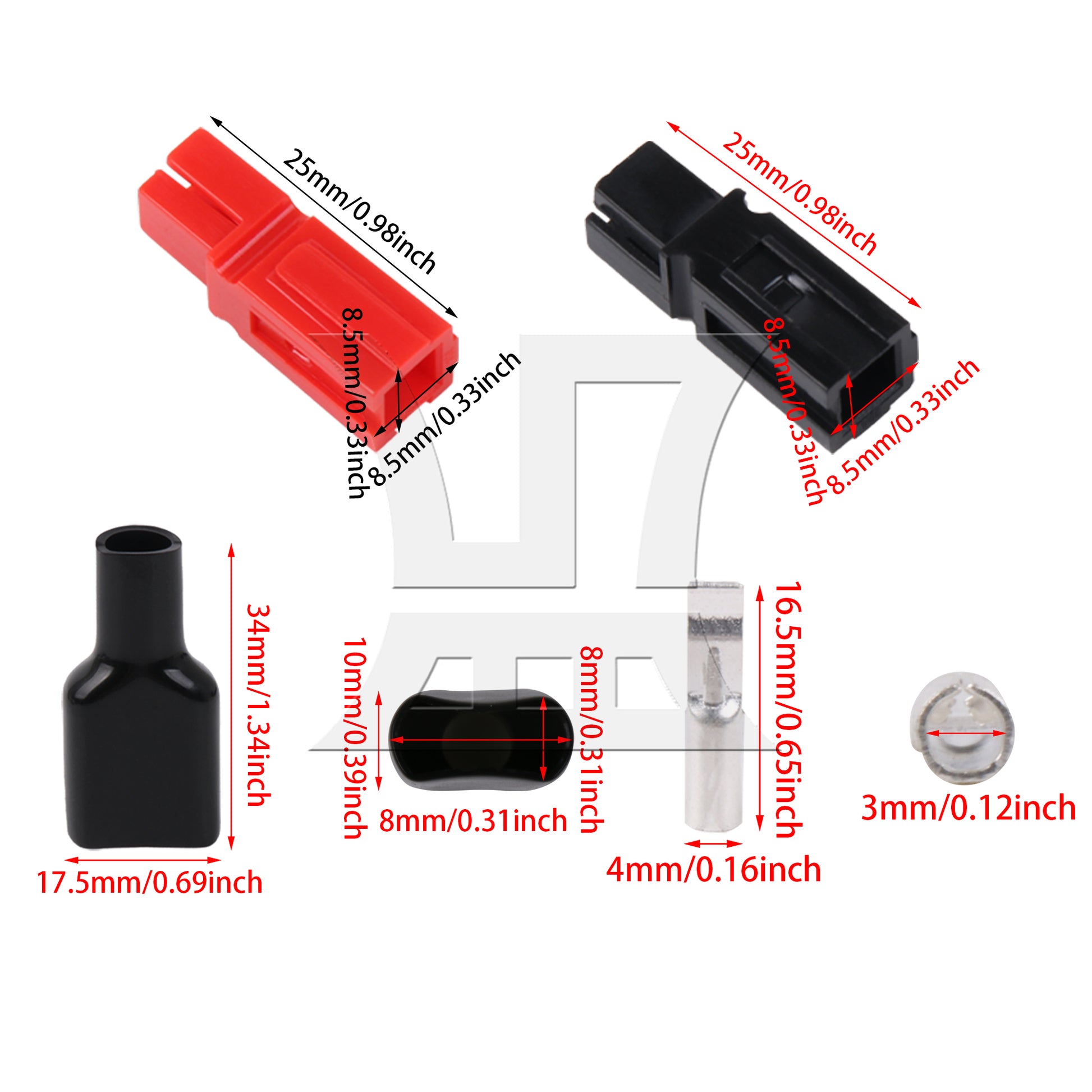

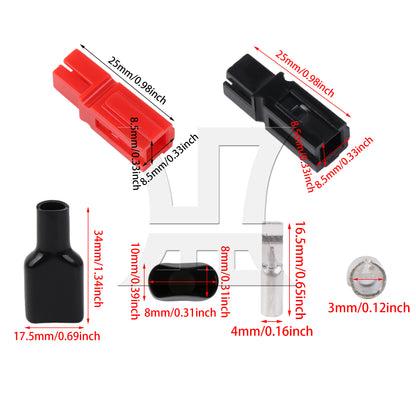

Size:
Sleeve: 17.5x10x34mm/0.69"x0.39"x1.34" (LxWxH)
Internal opening: 15x8mm/0.59"x0.31" (LxW)
Black housing: 8.5x8.5x25mm/0.33"x0.33"x0.98" (LxWxH)
Red housing: 8.5x8.5x25mm/0.33"x0.33"x0.98" (LxWxH)
Silver housing: 16.5x4x3mm/0.65"x0.16"x0.12" (LxWxID)
Weight: 59 g

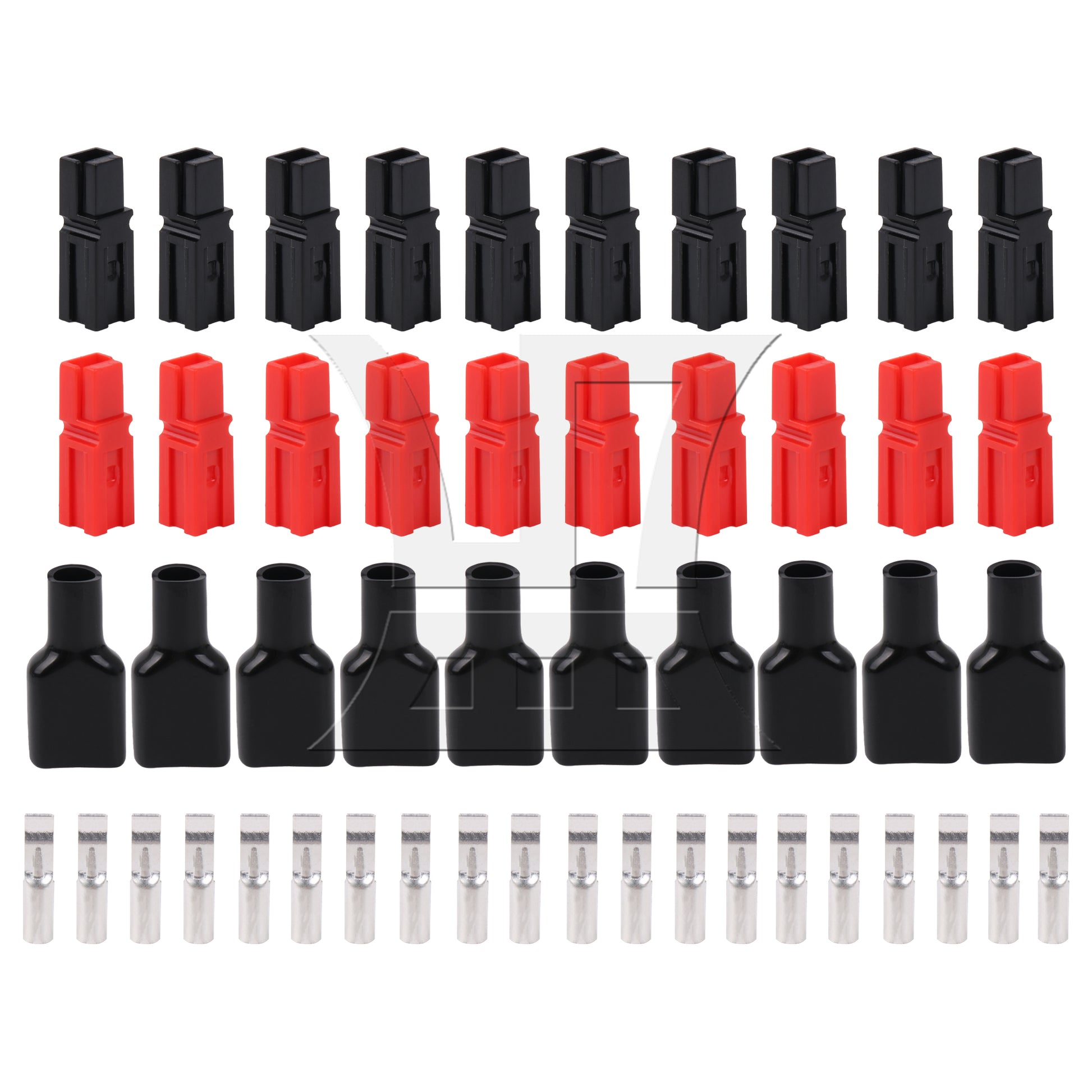

Package include:
10 x Sleeve
10 x Black Housing
10 x Red Housing
20 x Silver Plated Terminals
