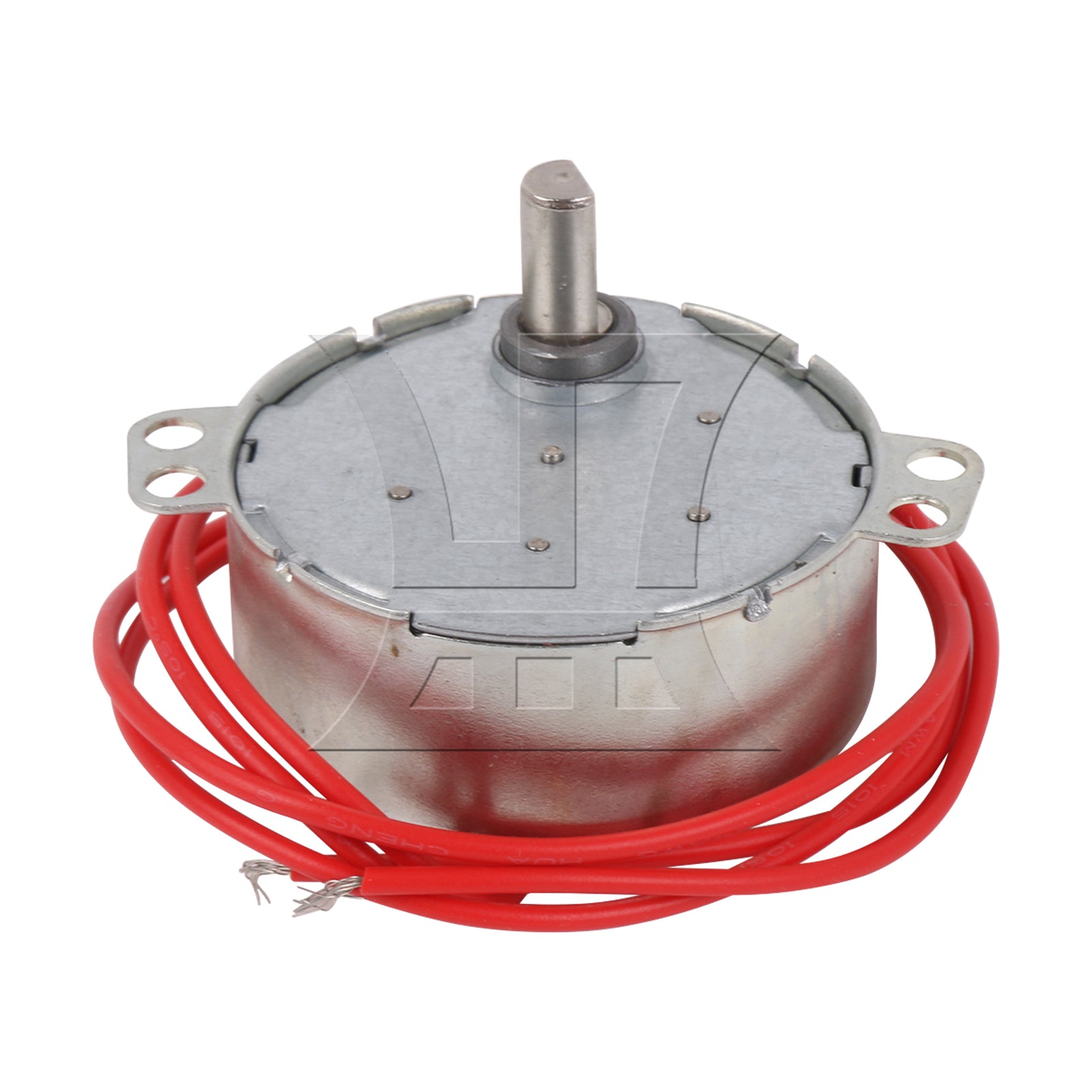

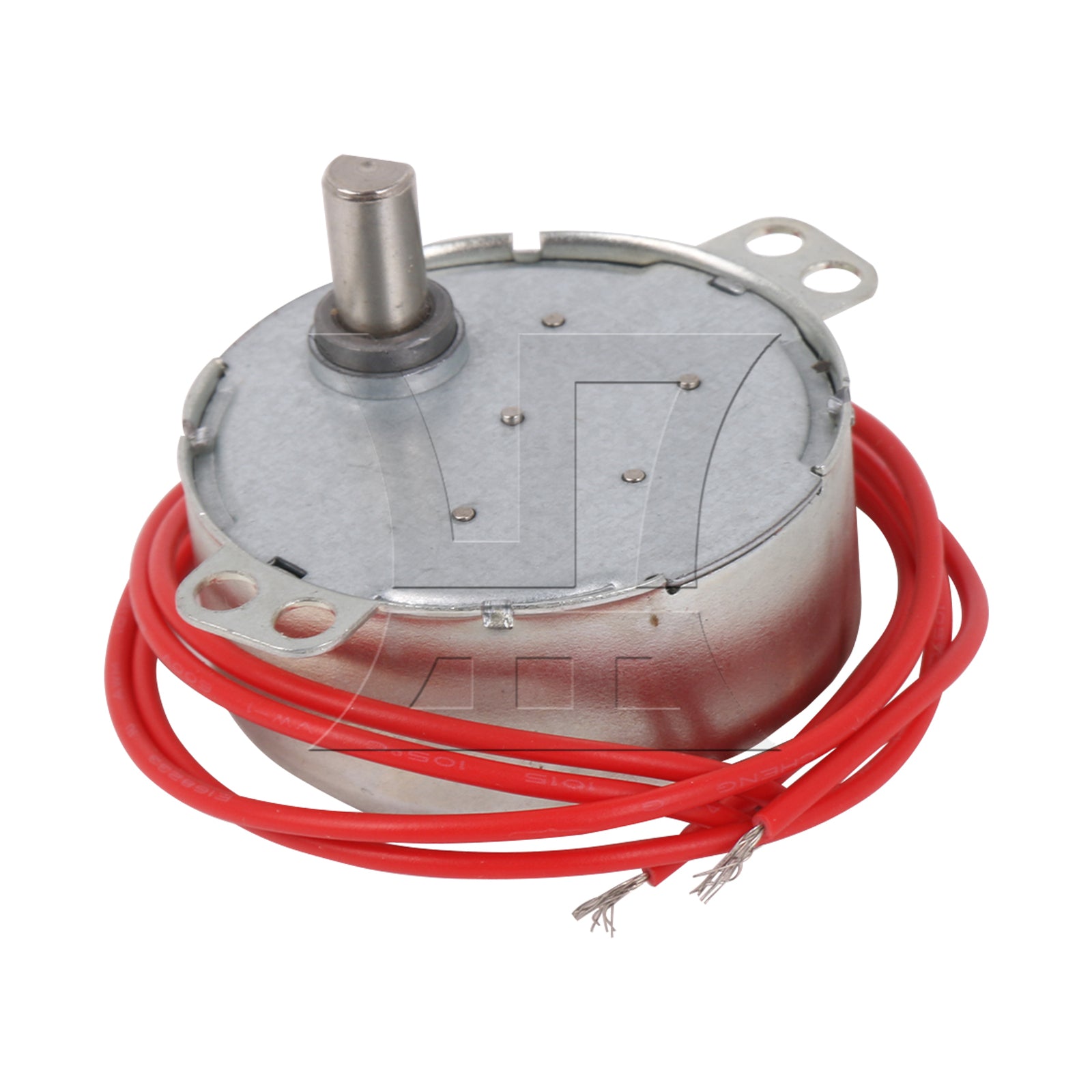

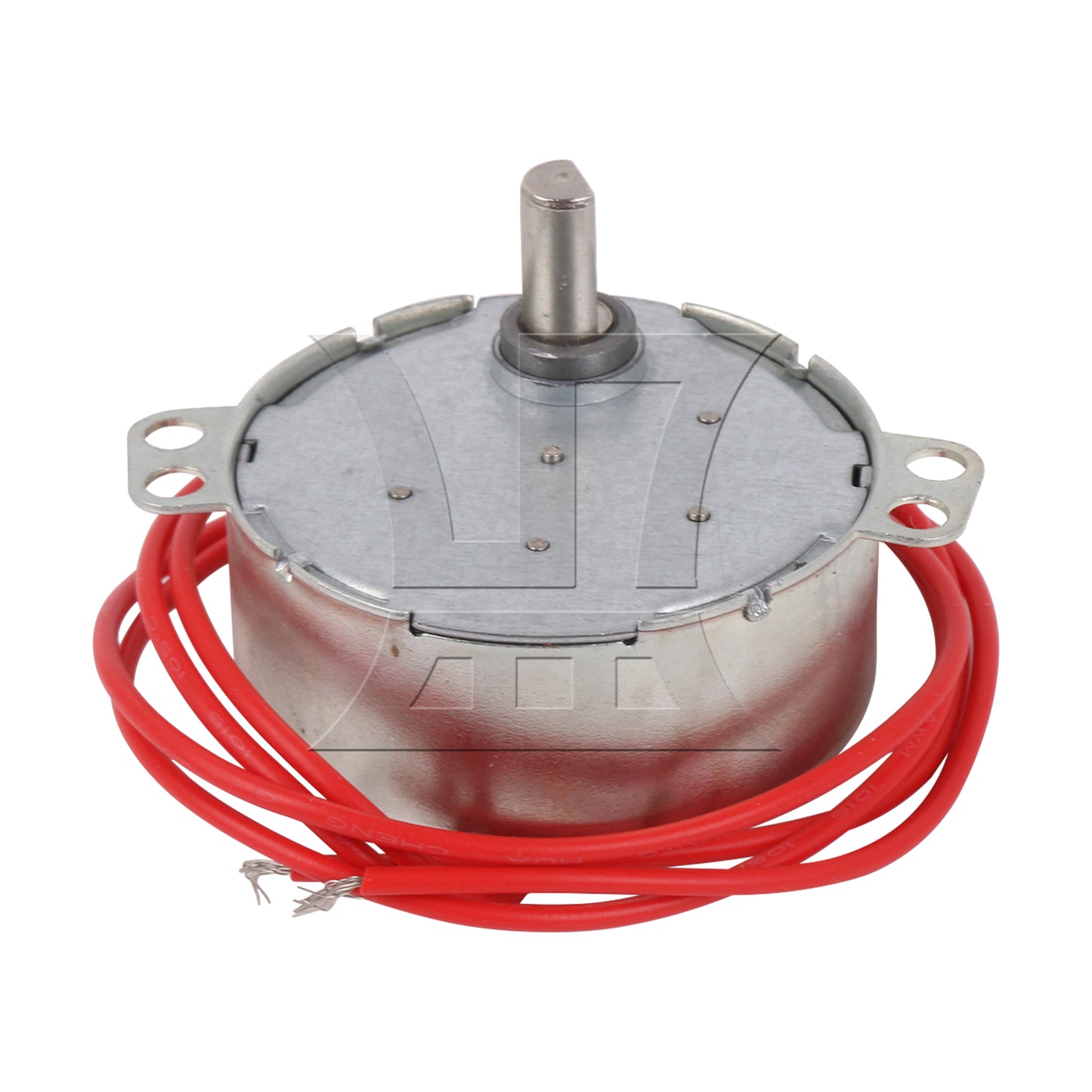

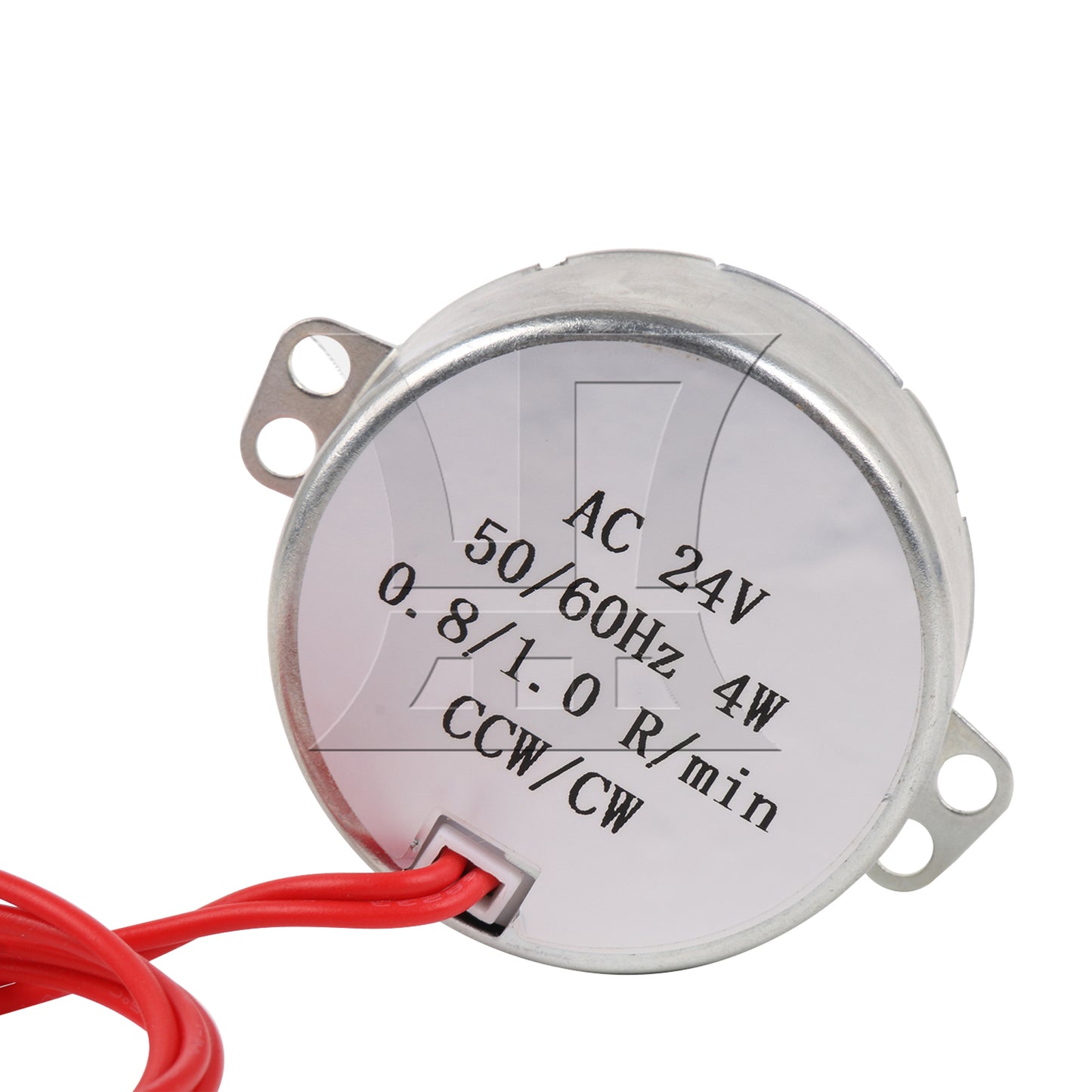

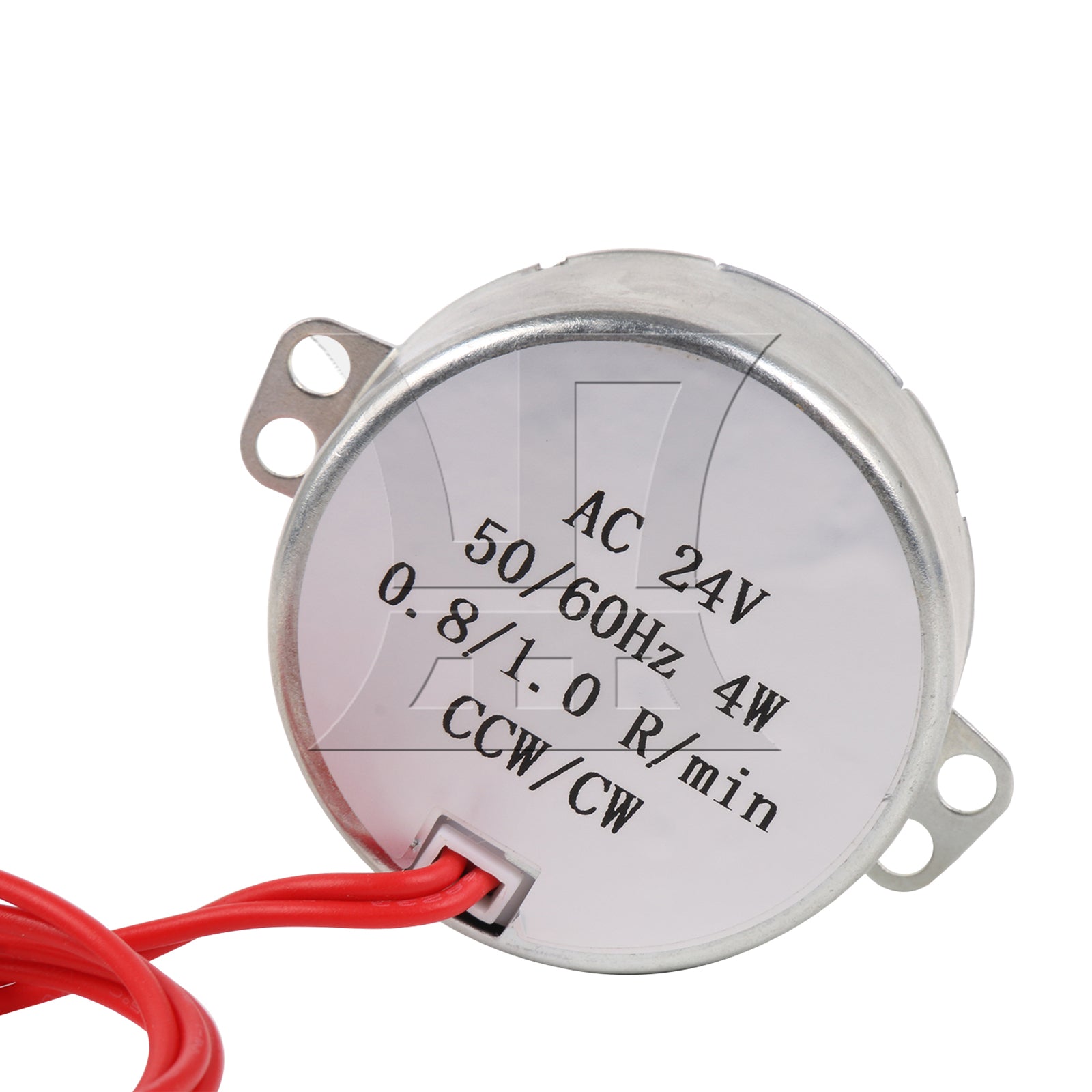

BQLZR AC24V Turntable Shaft Synchronous Motor 0.8-1.0RPM Speed for Air Conditioner

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Rated voltage: AC 24V, current: 20-100mA, power: ≤ 4W.
4.Rotation speed: 0.8-1.0RPM, torque: 12KGF.CM, single flat shaft length: 15.5mm, shaft diameter: 7mm.
5.Direction of rotation: no orientation (CW/CCW will automatically reverse when encountering large resistance).
6.Mainly used for air guiding mechanism, moving head mechanism, heaters, various display stands, handicrafts, lamps and lanterns,and other appliances.

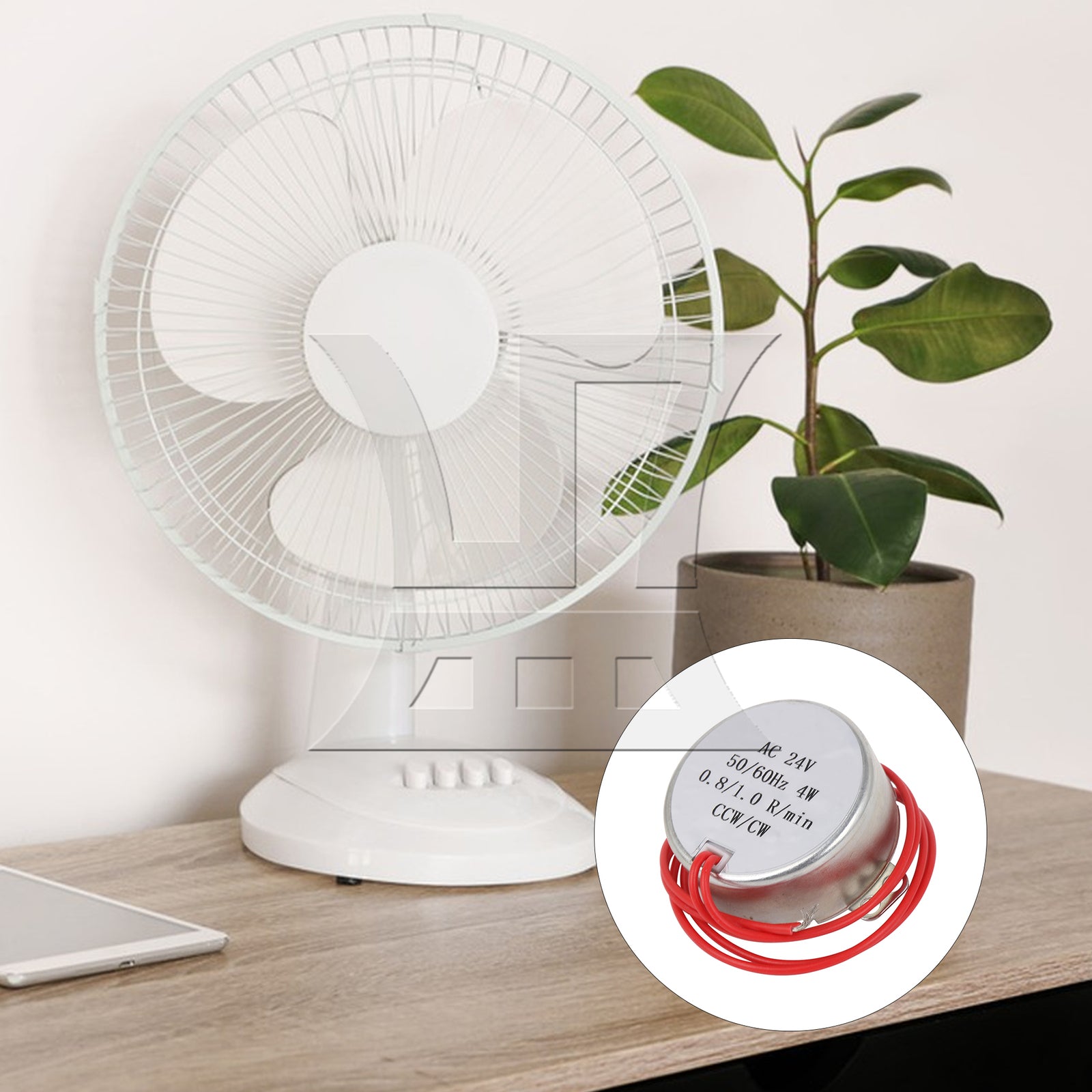

7.Typical applications: heater / electric fan / Christmas tree / heating and cooling air conditioner / massager / dynamic display stand / lighting / crafts / popcorn machine.

Note:
1. The slower the speed, the greater the torque.
2. The synchronous motor is a non-directional synchronous motor. When the load reaches the rated torque of the motor, it will automatically reverse.
3. Do not use external force to rotate the motor shaft.
4. Use within the specified voltage and power scope of the product.

Specifications:
Material: Metal
Color: Silver
Brand name: BQLZR

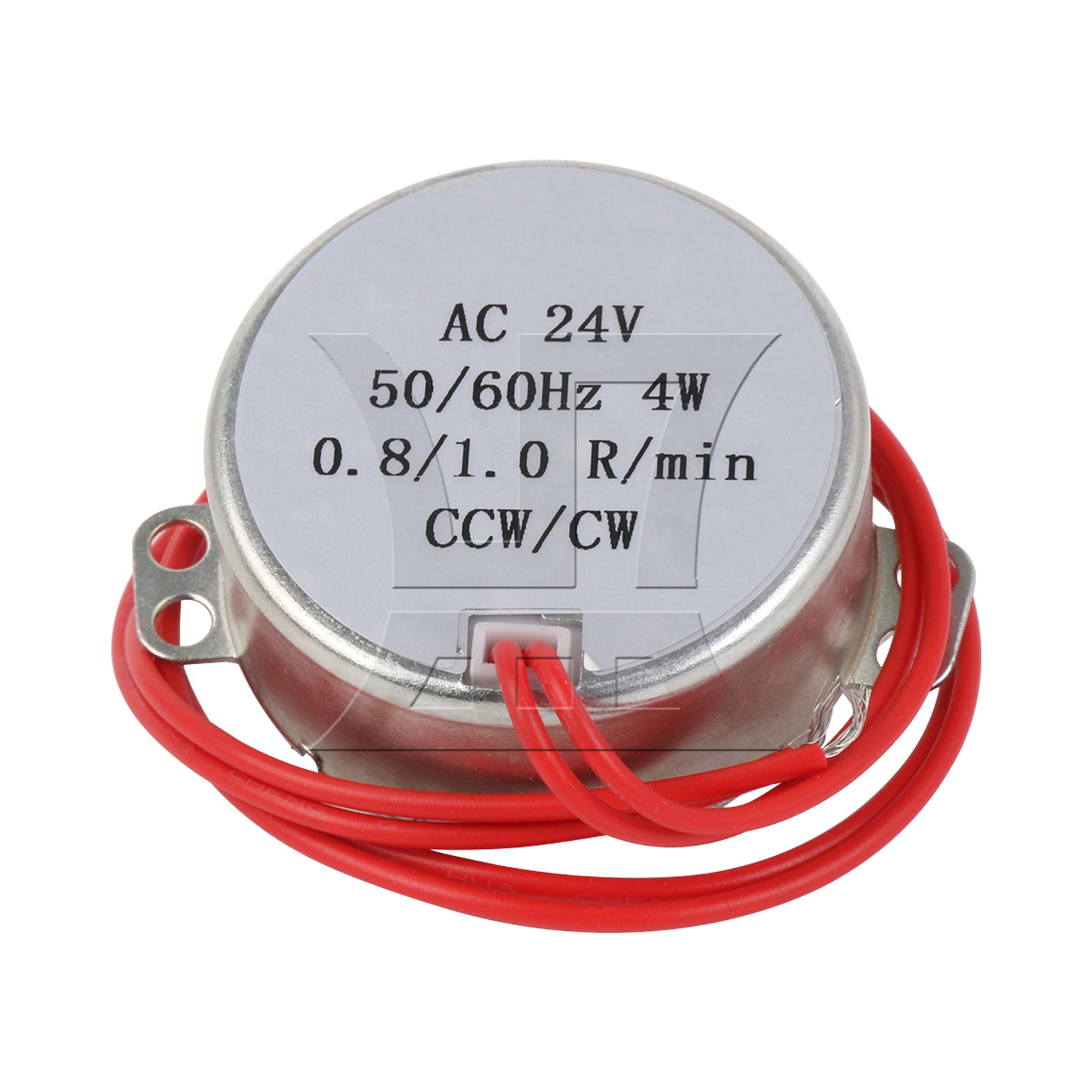

Rated voltage: AC 24V
Speed: 0.8-1.0rpm
Torque: 12KGF.CM
Current: 20-100mA
Power: ≤ 4W

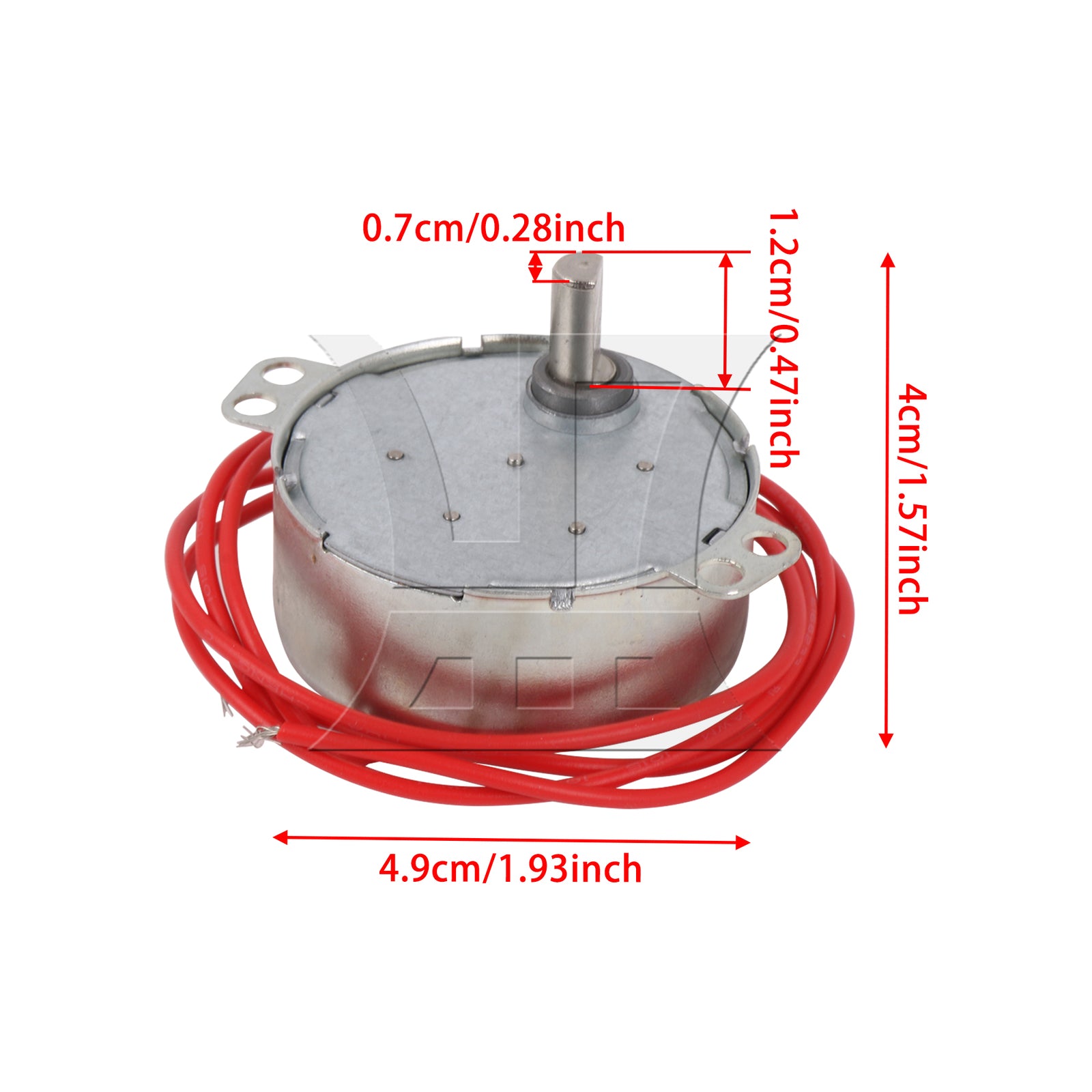

Single flat shaft length: 15.5mm
Shaft diameter: 7mm

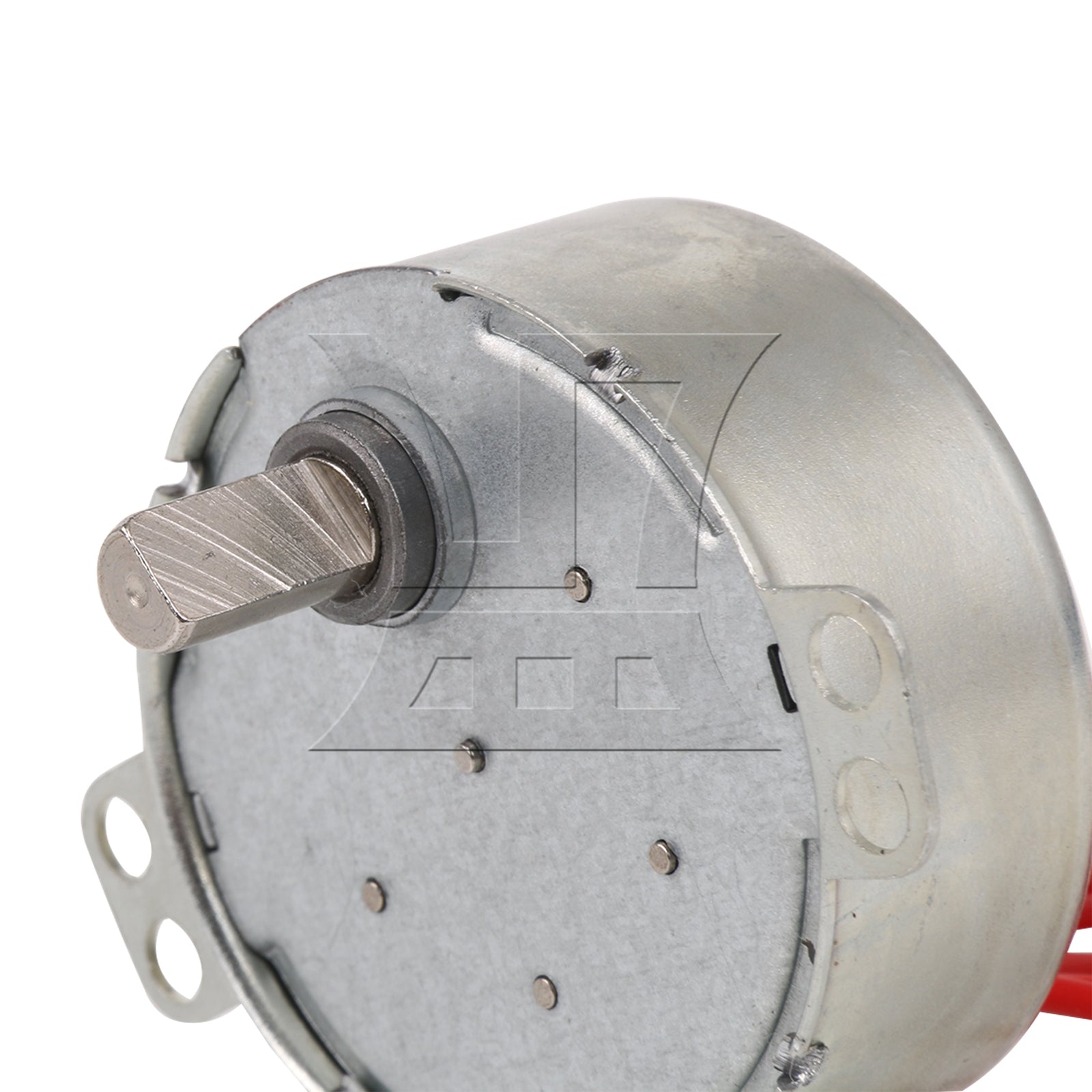

Flat shaft part: 12mm
Flat shaft thickness: 5mm
Product diameter: 49mm
Product height: 40mm
Weight: 84 g

Package include:
1 x Synchronous Motor
