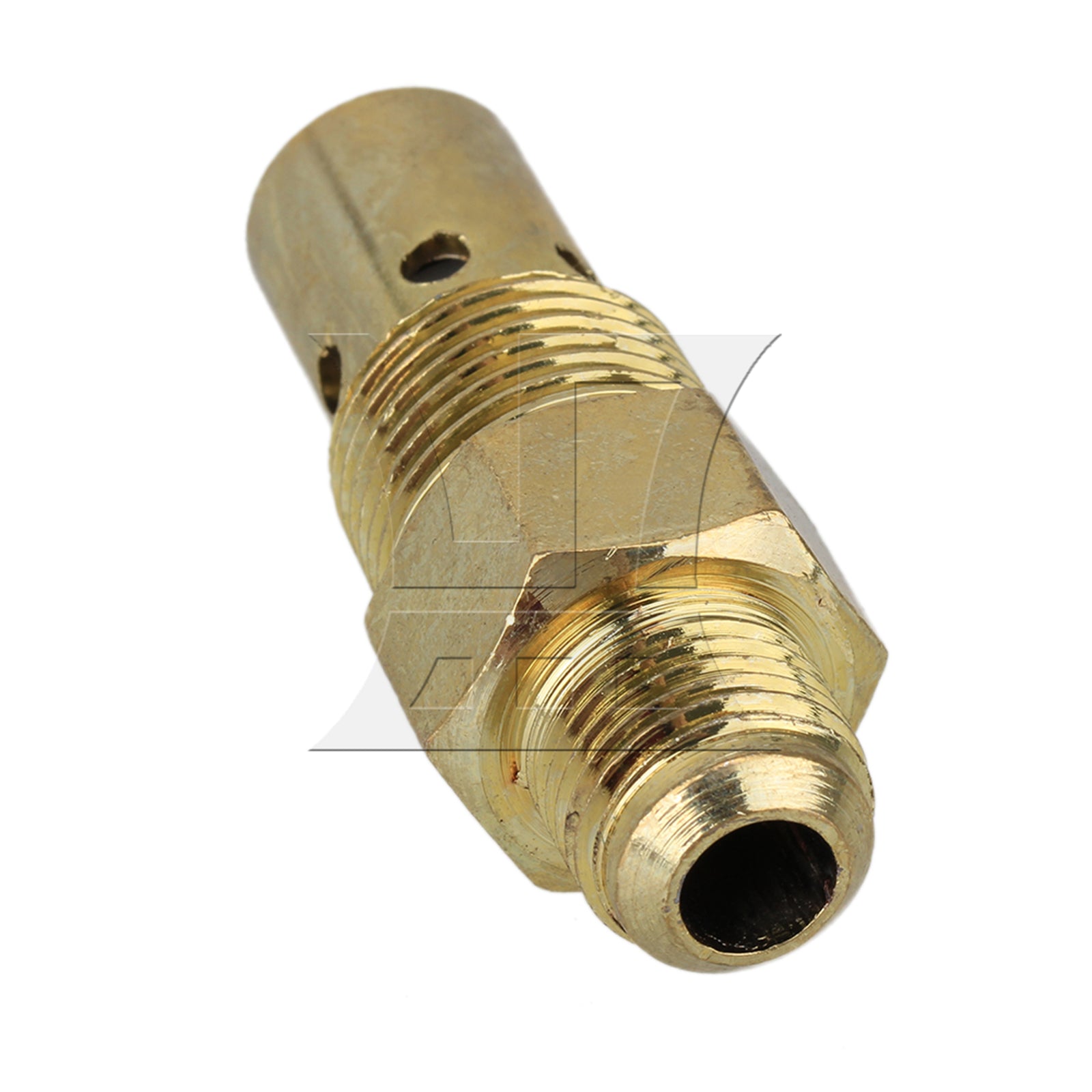

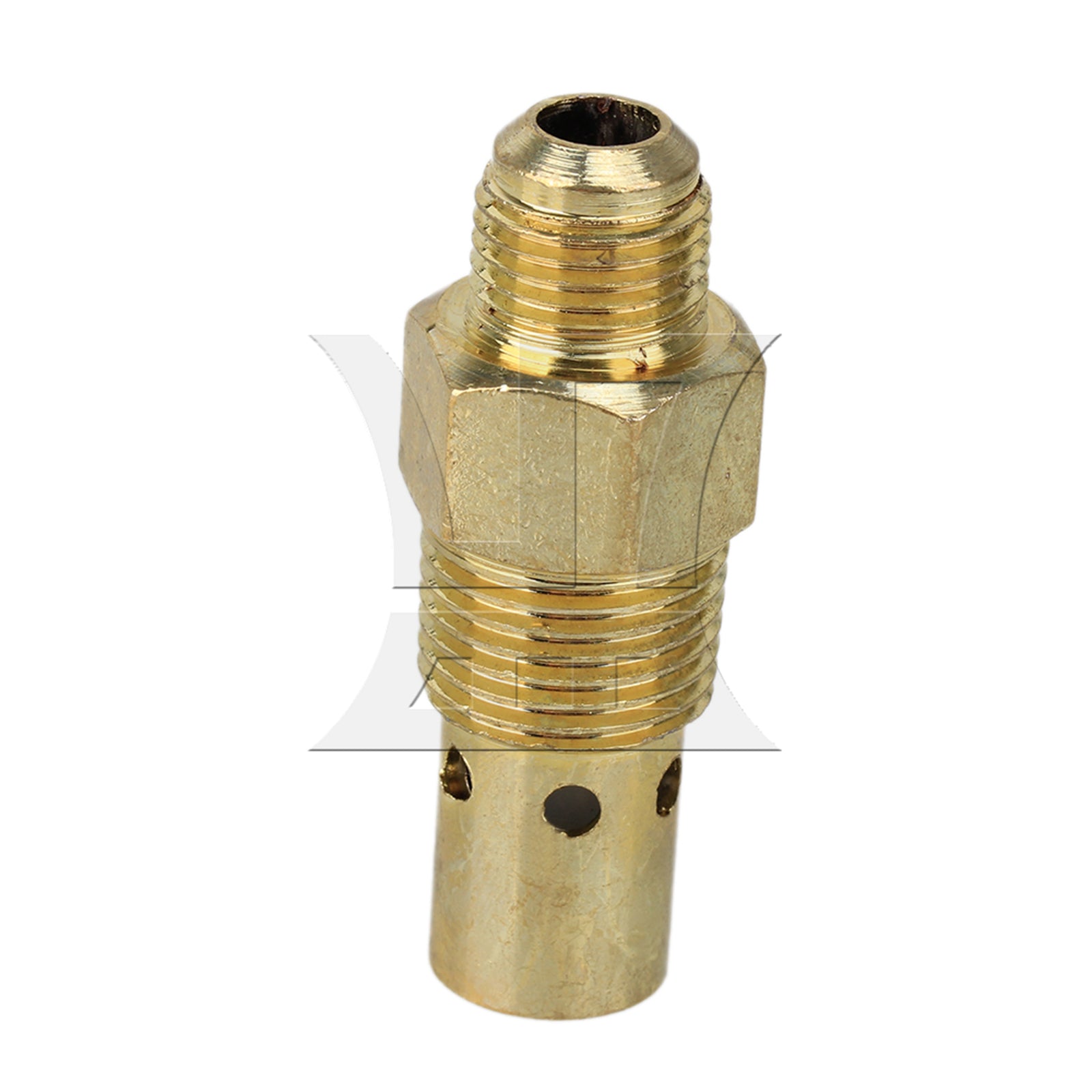

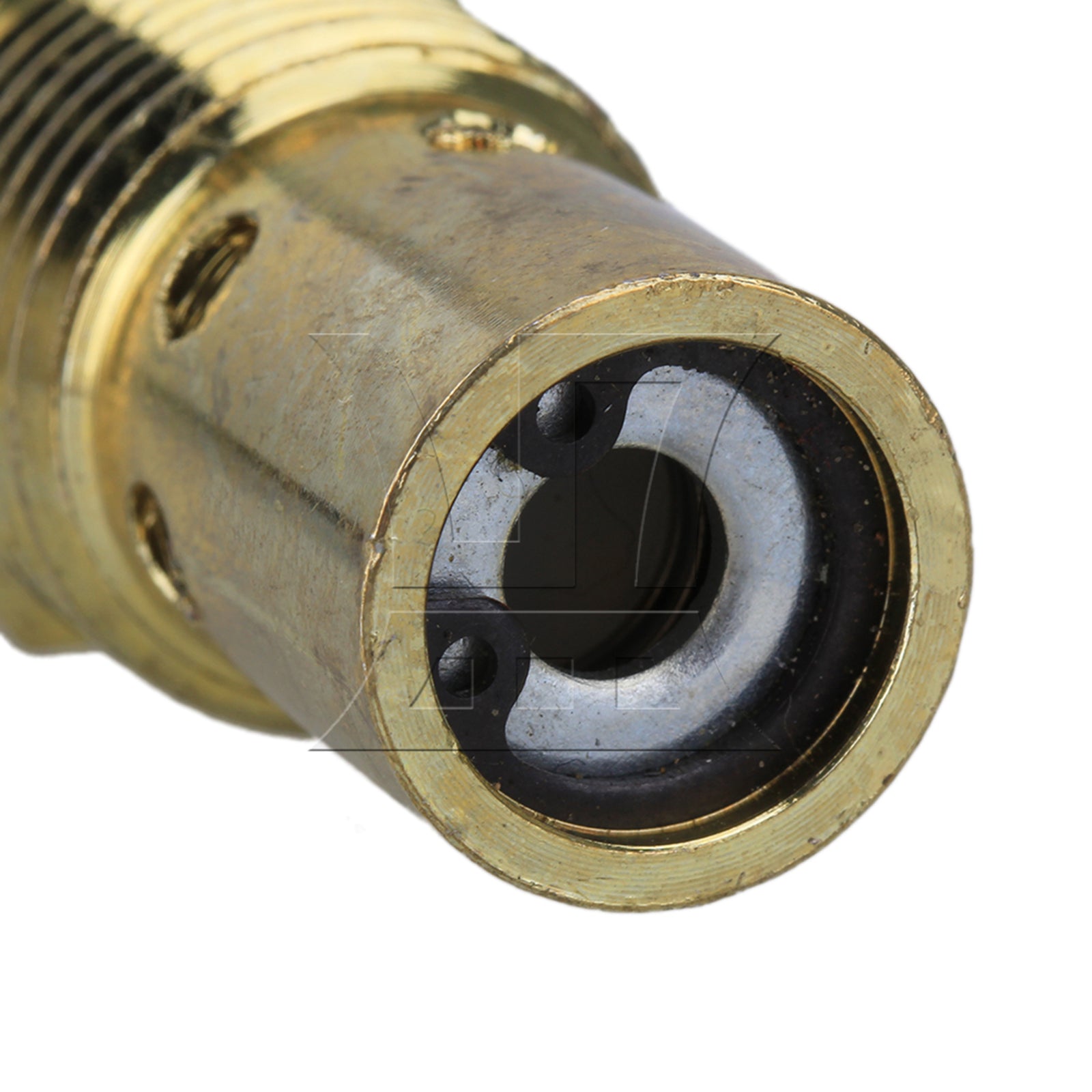

BQLZR Al Alloy 3/8" Male Threaded 1/2" Air Compressor Tank Check Valve

Note: The color of the item may vary slightly due to photography and your own computer
Feature:
1.Air compressor 1/2" Compression thread pipe thread x 3/8" male NPT in tank check valve.
2.The 1/2" compression side is usually used to screw into the air tank and the 3/8" male NPT side is the inlet for the incoming air coming from the compressor pump.

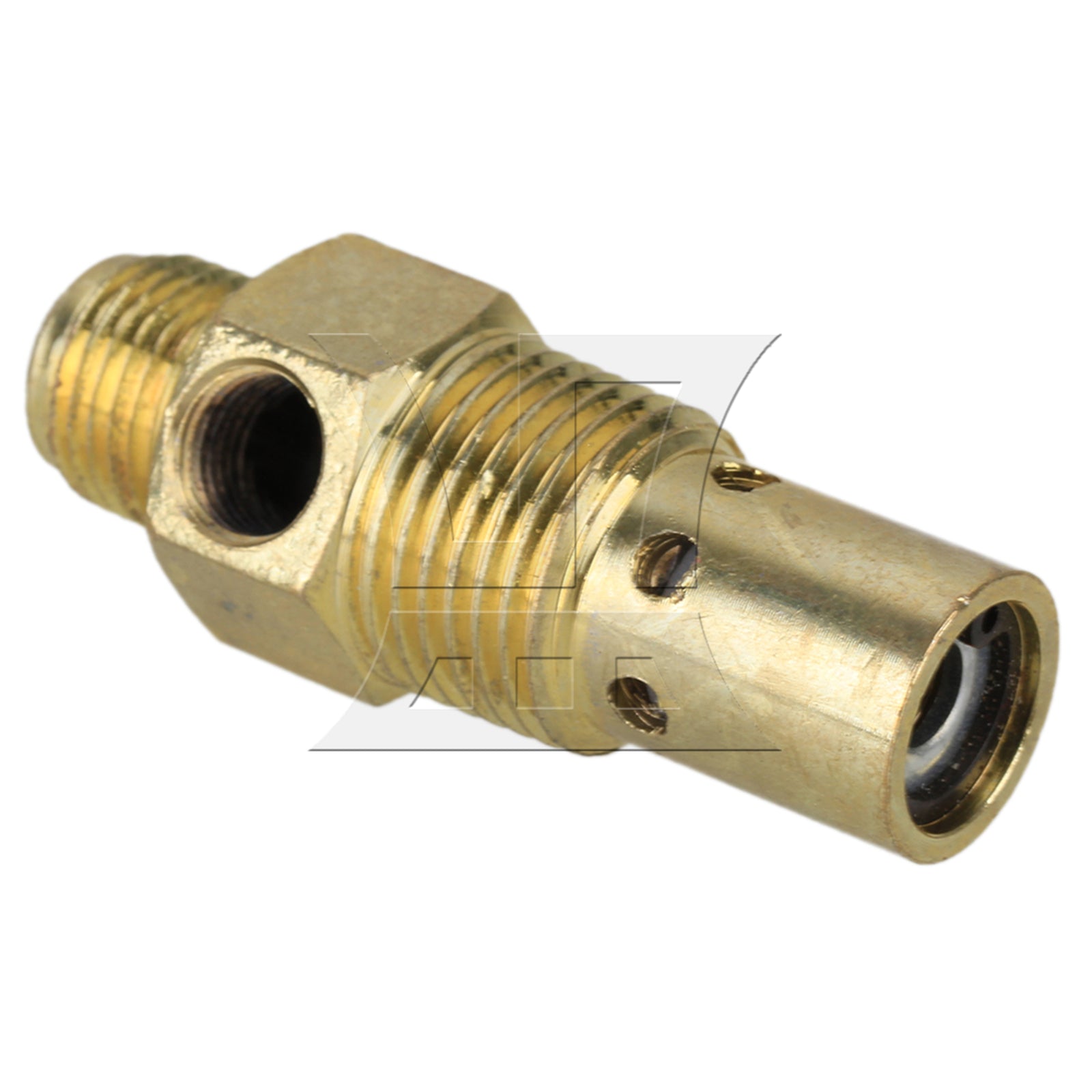

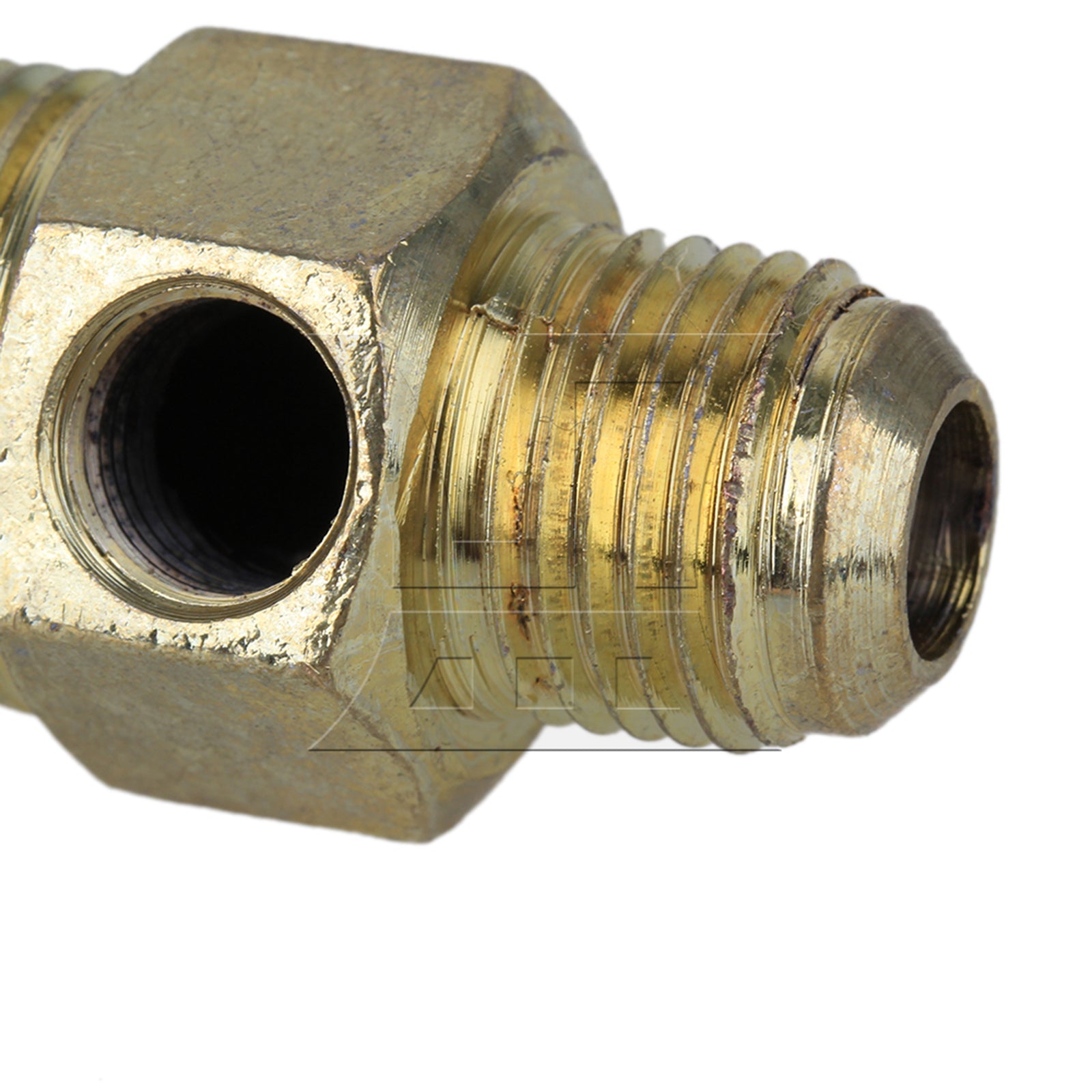

This Valve is also equipped with a 1/8" female npt threaded port on the side for a u3.nloader line, if your compressor does not need the unloader port it can simply be plugged with a 1/8" npt pipe plug.

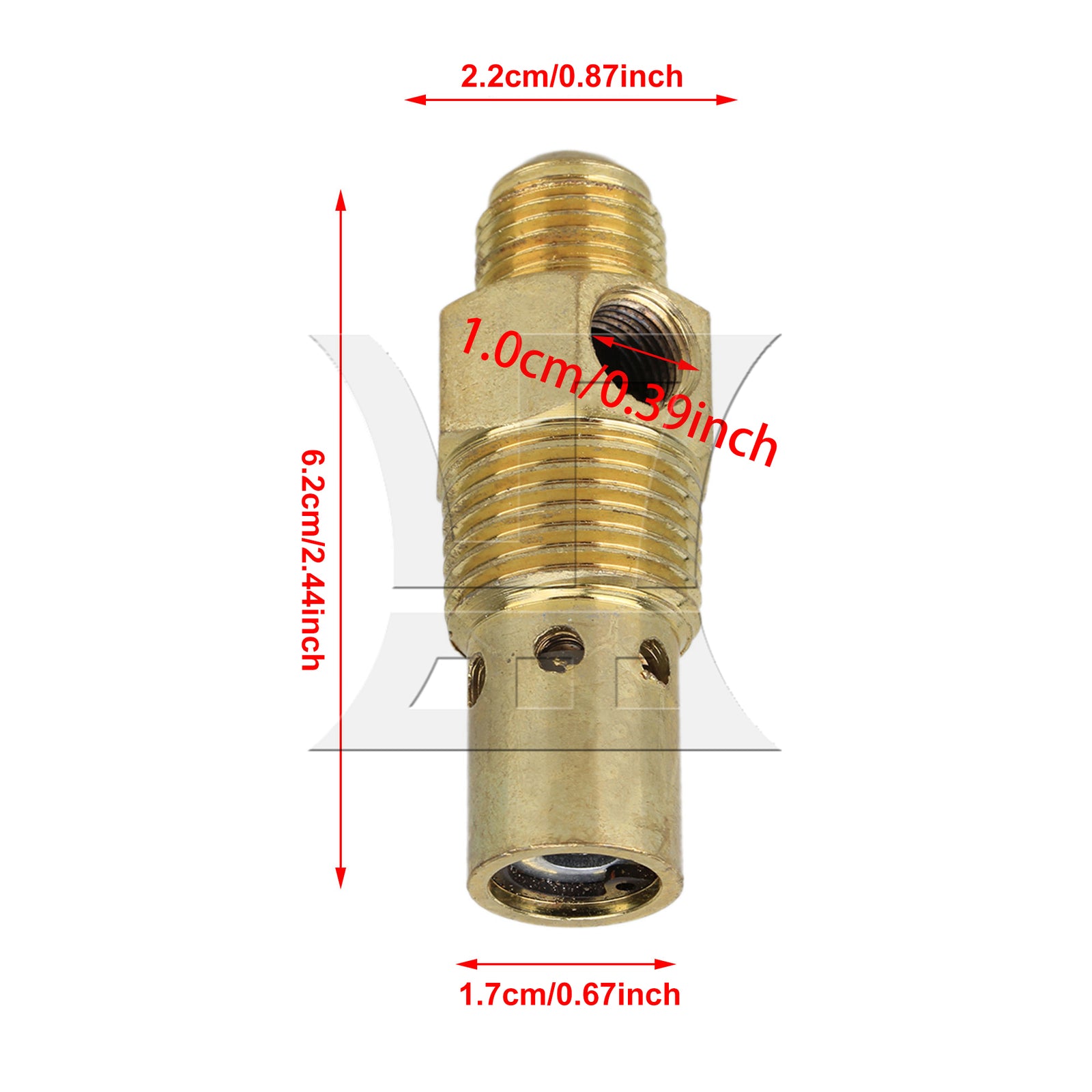

4.Dimensions: length 62mm (2.44 inches) width 22mm (0.87 inches) diameter 17mm (0.67 inches)
5.Material: zinc alloy
6.The one-way check valve only allows air flow to flow in a direction and does not allow reverse flow.
7.It can make the medium (air, water, oil) flow in a direction, and the threaded connection is easy to install.
8.Suitable for: industrial use, good replacement for broken ones. "

Specification:
Material: Aluminum Alloy
Color:Golden
Thread Size Used To Screw Into Air Tank:1/2" Compression thread
Compressor Line Input Threads: 1/2" Compression Thread
Unloader Line Input Threads: 1/8" Female NPT
Suitable For: 0.036 Air Compressor
Size:64 x 22mm/2.52 x 0.87"(L x Dia)
Weight:80g

Package Include:
1 x Aluminum Alloy Air Compressor Single Way Check Valve
