BQLZR ER16A 6mm Motor Shaft Collet Chuck Holder Tool CNC Lathe Milling Part and 10Pcs Spring Collet Set Kit

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.ER straight rod type collet extension handle, the handle body is relatively long, suitable for deep hole processing.
4.Use for motor Rod Extension,can replace the drill clip,with ER collet perfect match for all kinds of straight shank tools.
5.The outer diameter of the rod and other parts of the rod can be eliminated by precision grinding, which can eliminate the unbalance and increase the stability of the cutting.
6.Spring Collet Set:Highly clamping force, wide clamping range, high accuracy

Specifications:
Brand name: BQLZR
Color:Silver & Black
Weight: 296g

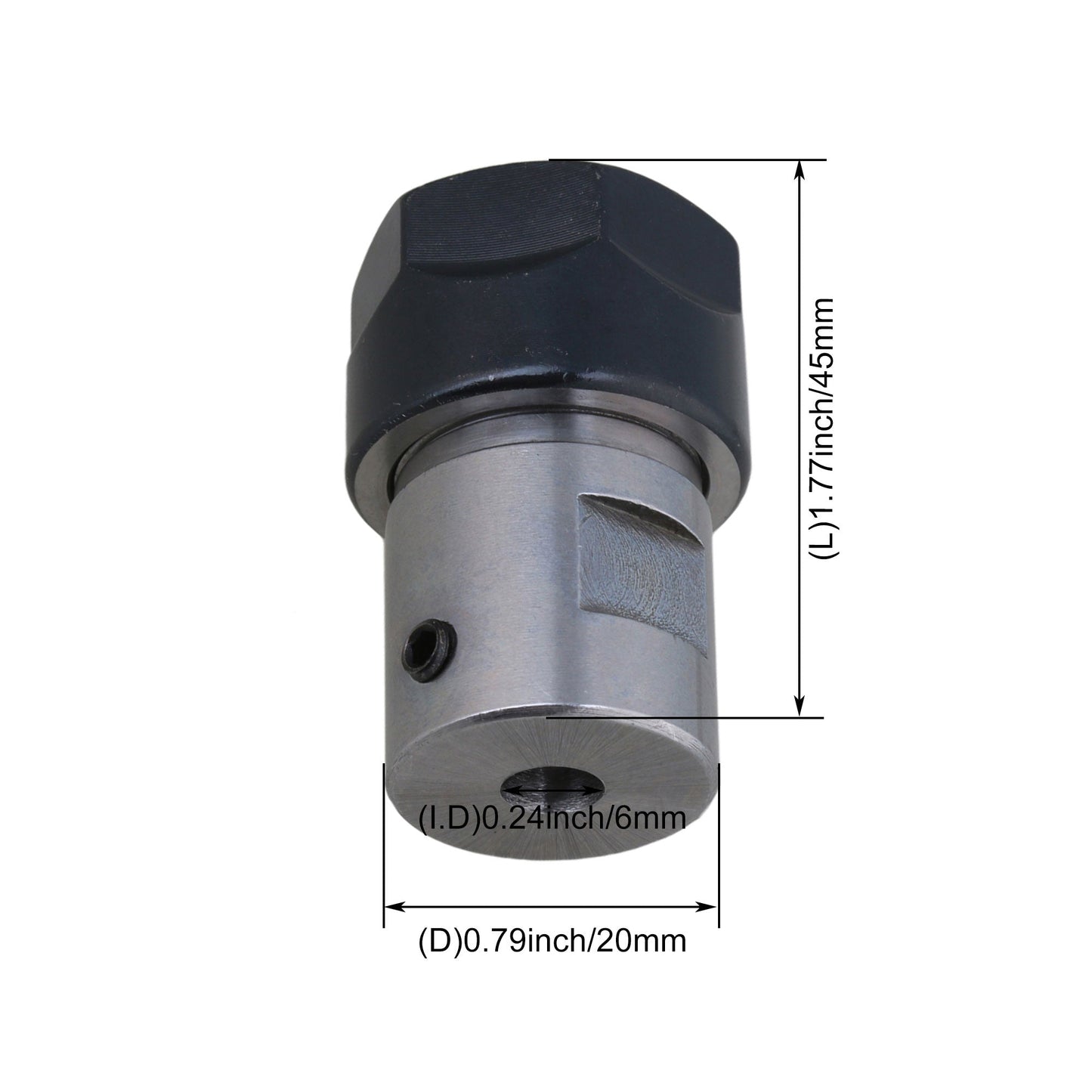

Motor Extension Rod
Material:40CR
Suitable Chuck: ER16
Nut Type: Type A
Rod Hole Dia:6mm
Rod Diameter:20mm
Size:38.6x25mm/1.51x0.98inch(L x Dia)

The traditional ER chuck is easy to be locked in the cutter bar when it is installed, and cannot be removed. The eccentric nut is removed together with the chuck and cutter tool when the nut is removed. It nicely solves that problem.

Installation Steps:
1.Remove the nut and insert the collet eccentrically
2.Insert the cutter
3.Tighten the nut
4.Pull out the cutter
5.Eccentrically remove the collet

Package include:
1 x Motor Shaft Extension Rod;10 x ER16 Collets
