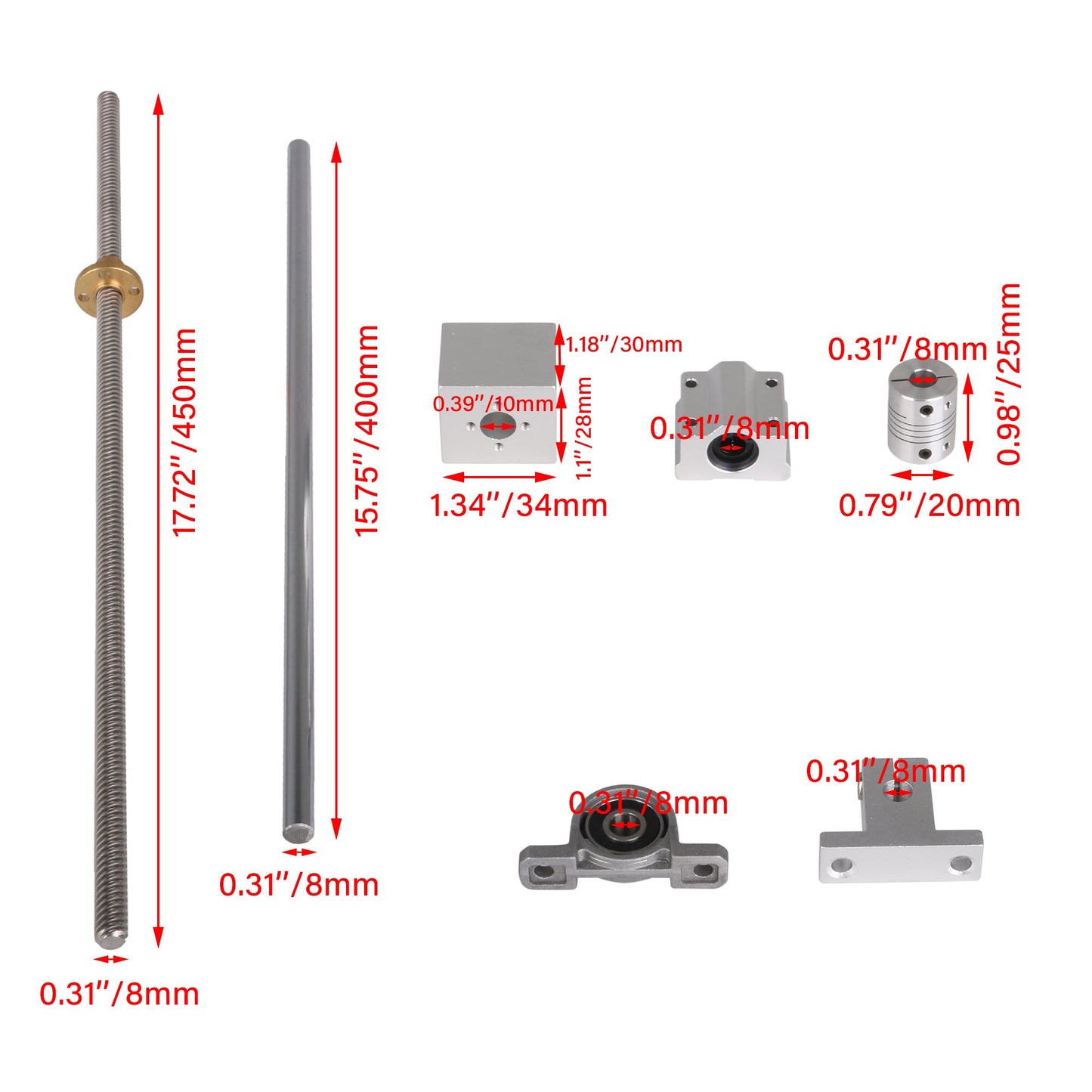

BQLZR Horizontal Dual Rail Guide T8 450x8mm Lead Screw Coupling Support Slide Kit

BQLZR Horizontal Dual Rail Guide T8 450x8mm Lead Screw Coupling Support Slide Kit

常规价格 $81.56
常规价格 $106.03 促销价 $81.56
促销 售罄
Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Suitable for stepper motors, machine tool guide rails and other equipment.
4.Good wear resistance and strength, high precision.
5.Good performance, low friction coefficient and long service life.

Specifications:
Material: Bearing steel & Aluminum & Stainless steel
Color: Silver & Black
Brand name: BQLZR
Size:
Lead screw: 450x8mm/17.72x0.31inch (LxW)
Screw lead: 8mm/0.31inch
Screw nut seat length: 34x30x28mm/1.34x1.18x1.1inch (LxWxH)
Screw nut diameter: 10mm/0.39inch
Straight optical axis: 8x400mm/0.31x15.75inch
Aperture of optical axis support frame: 8mm/0.31inch
Inner hole of bearing housing: 8mm/0.31inch
Inner diameter of linear bearing: 8mm/0.31inch
Coupler: 20x25mm/0.79x0.98inch (DxH)
Coupler aperture: 5x8mm/0.2x0.31inch
Weight: 937g

Package include:
1 x Shaft Coupler
1 x T8 Screw seat Nut
1 x Lead Screw
4 x Bearing
4 x Ball Bearing
2 x Linear Rail Shaft Optical Axis
2 x Mounted Support (8mm Inner Dia)
