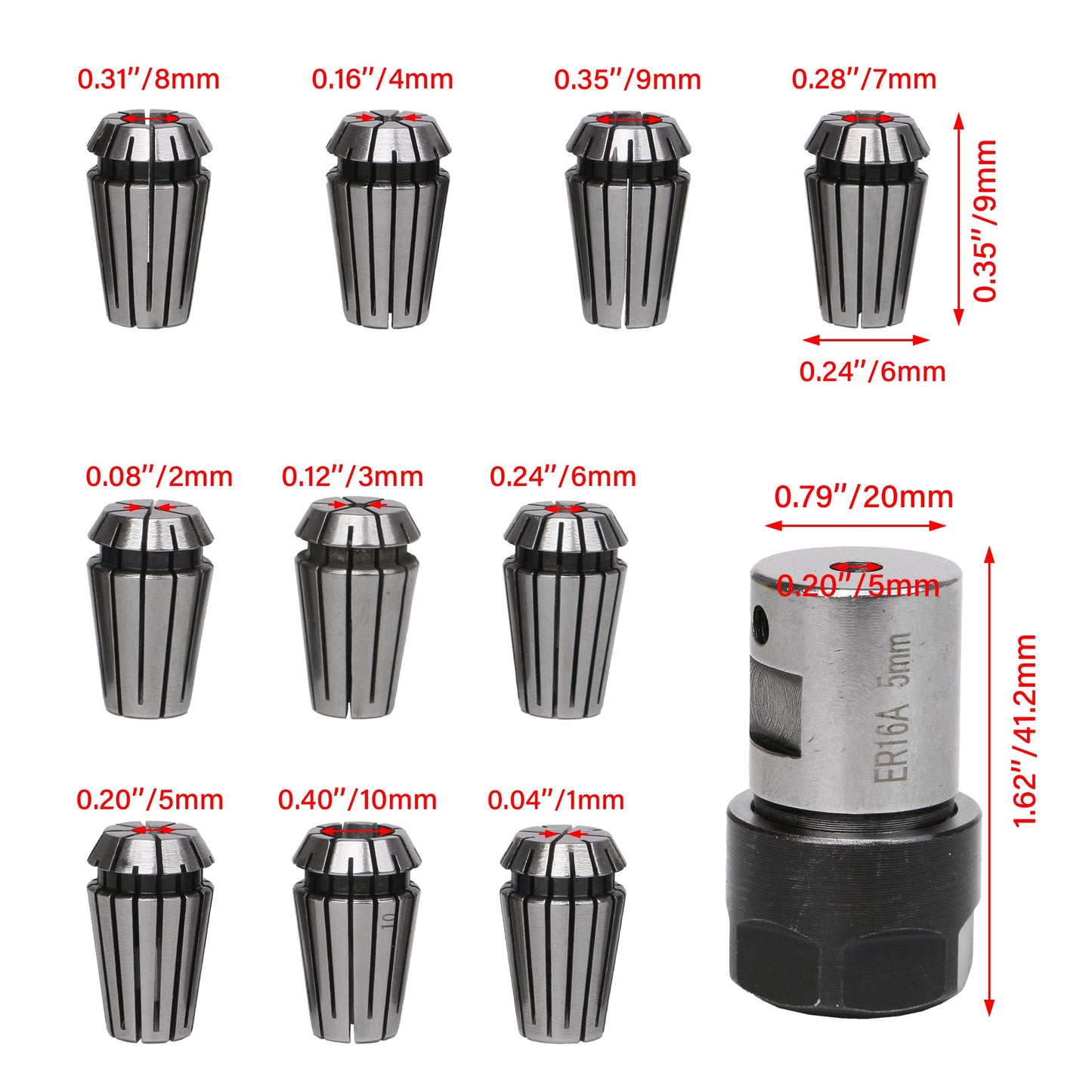

BQLZR Motor Shaft Extension Rod ER16 Collets CNC Holding Kit for Industrial Pack of 11

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.The motor extension rod is made of 40 chrome steel, it is used to extend the motor shaft, it can replace the drill chuck, and can be used with the ER chuck.
4.Collet inner diameters size from 1mm, 2mm,3mm to 10mm, 10 in total, 1piece for each size.
5.ER16 spring collet is widely used in milling, boring, drilling, tapping operations, suitable for all kinds of CNC, engraving machines and other equipment.
6.High rigidity,strong clamping, wear resistance.

Specifications:
Color: Black & Silver
Brand name: BQLZR
Weight: 299 g

Motor Shaft Extension Rod:
Material:40 chrome steel
Suitable Chuck: ER16
Nut Type: Type A
Rod Hole Dia: 5mm/0.19Inch
Rod Diameter:20mm/0.78Inch
Size:41.2x25mm/1.62x0.98inch(L x Dia)

Spring Collets:
Material:Steel
Model: ER16(10pcs,1mm-10mm)
1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm
Length: 27.5mm/1.08inch
Diameter: 17mm/0.67inch

Installation Steps:
1.Remove the nut and insert collet eccentrically
2.Insert the blade
3.Tighten the nut
4.Pull out the tool
5.Eccentrically remove the collet

Package include:
1 x ER16 Motor Extension Rod
10 x ER16 Lathe Collet
