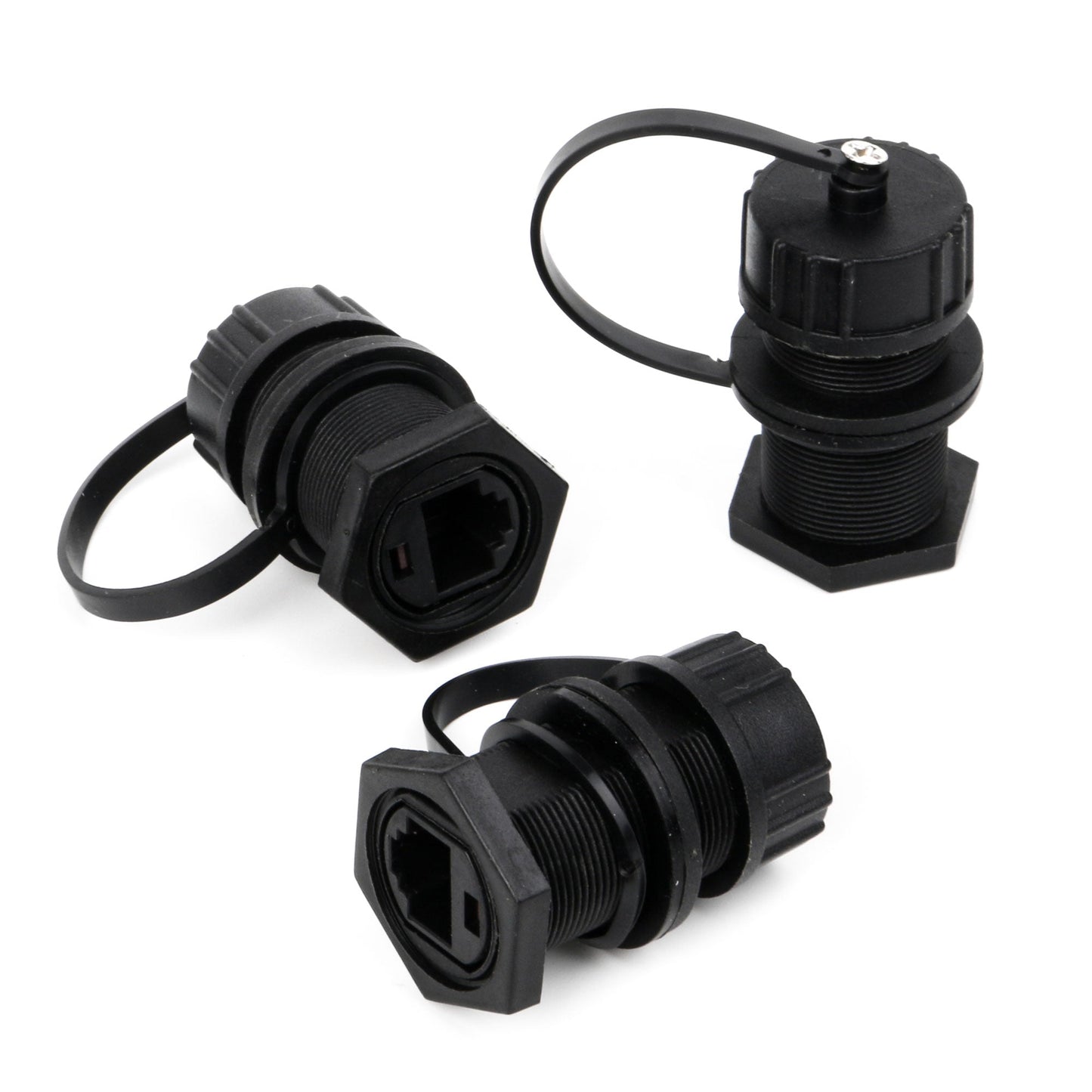

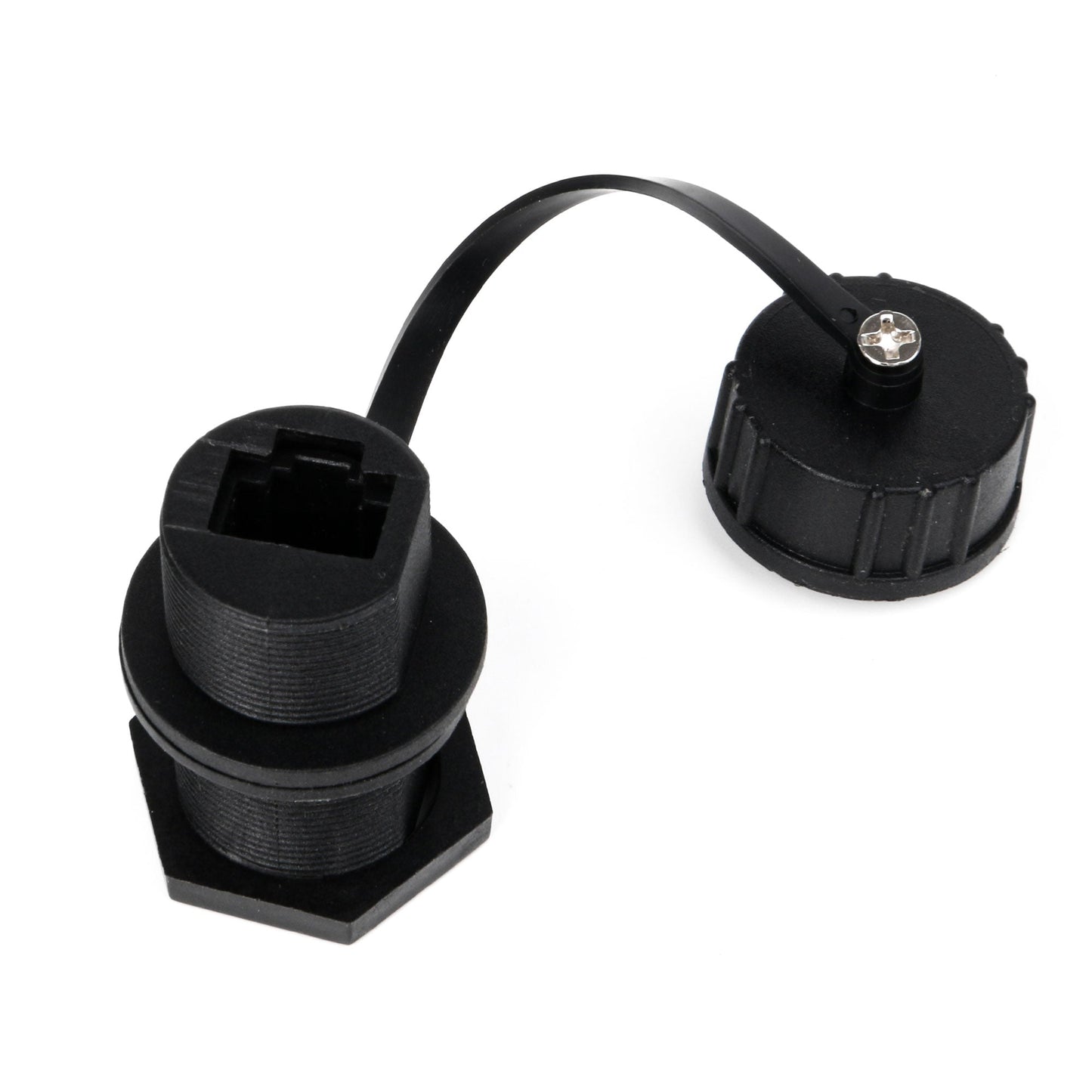

BQLZR Panel Mounting RJ45 M20 Connector with Shielded 12V 1.69x1.06inch IP68 Pack of 50

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Plated with 6FU gold, the contact is better and the network speed is faster.
4.New structure and new mold manufacturing, uniform surface, less burrs, smaller volume, saving installation space.
5.The rubber pad has back glue, which is not easy to fall off. The female seat adopts injection molding and cold pressing structure, which is firm and not easy to break. The overall material is excellent and the life is longer.
6.The new inverted rubber ring, IP68, is beautiful and does not enter the water.

Note: This RJ45 connector is M20 inch thread, both ends are RJ45 female sockets, and the thread length at the end can reach 20.3mm, which can be installed in a thicker chassis, with a specification of 13/16-24.

Specification:
Working temperature: -40 to 60 degrees
Threaded Press Fit Seals
Rated current: 1.5AMPS
Rated voltage: 12VAC
Insulation resistance: not less than 500 megohms
Compressive strength: AC1000V 50HZ/min
Contact resistance: no more than 20 milliohms
Plug fit strength: 5KG
Material: Plastic & Metal
Size: 43x27mm/1.69x1.06inch (HxD)
Brand name: BQLZR
Color: Black
Weight: 950g

Package Include:

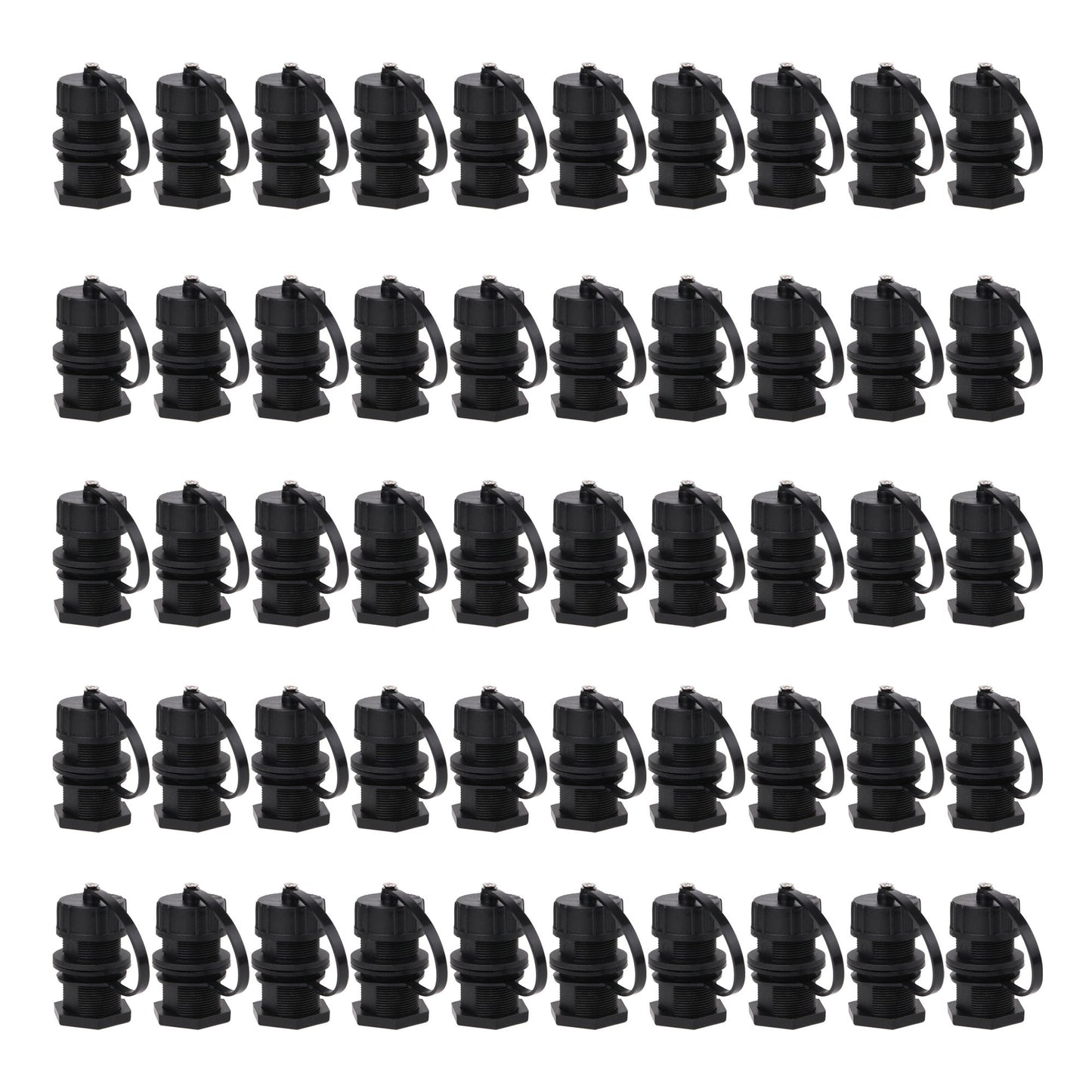

50 x Panel Mounting RJ45 Connector
