BQLZR Stainless Steel 1/4BSP Female Thread Humidification Spray Air Atomizing Mist Nozzle External Mixing Type

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.The spray angle is about 45 degrees and the spray distance is about 1.5 meters
4.This is a pressure device,used for dust,humidification,cooling.
5.Gas and liquid are mixed externally,viscous liquid is also suitable for use.
6.The amount of mist can be adjusted.
7.Two-fluid minimum can reach 10 microns.

Specifications:
Material:Stainless Steel
Color:Silver
Brand name: BQLZR

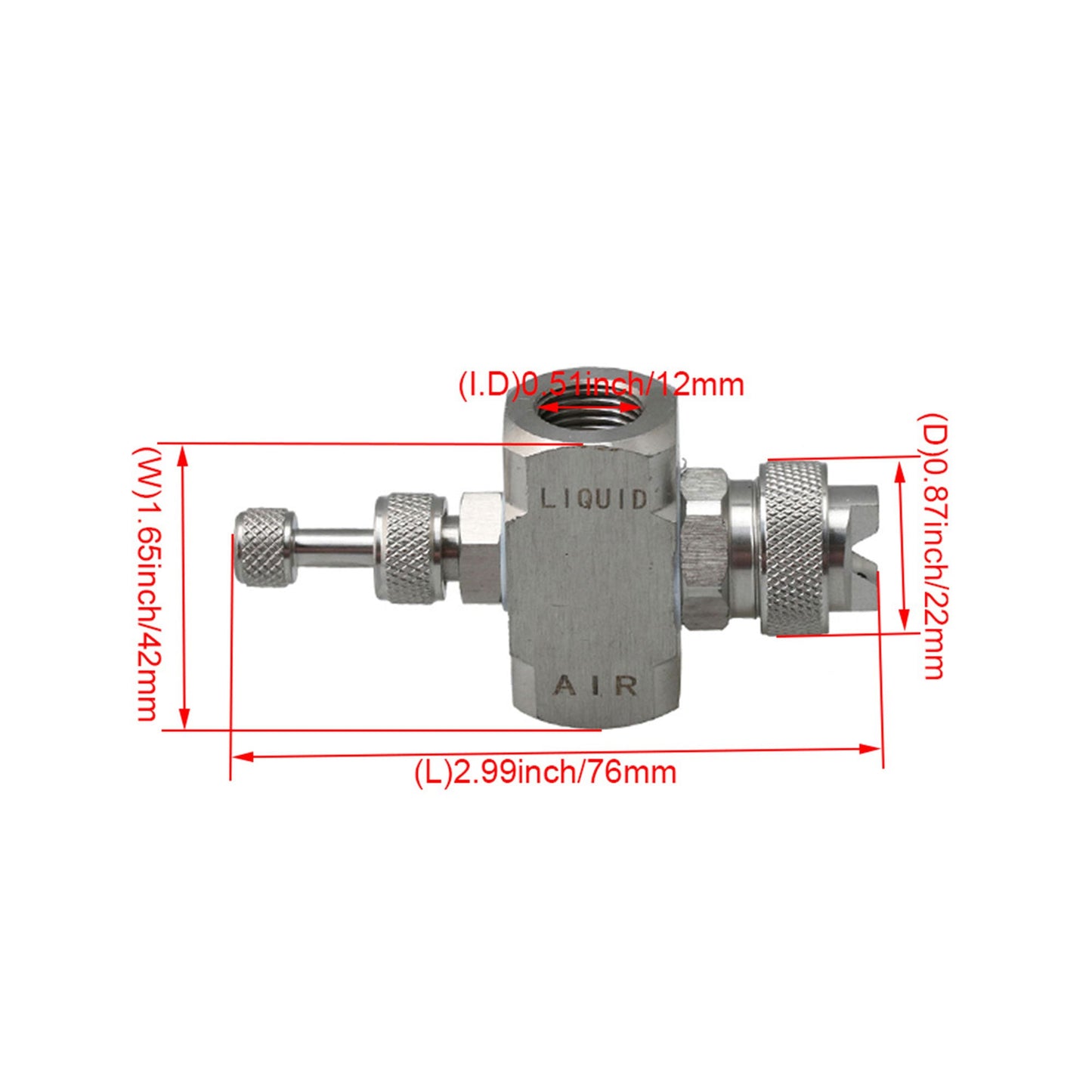

Size:7.6x4.2x2.2cm/2.99x1.65x0.87inch(LxWxH)
Female Thread Dia.:BSP1/4(12.5mm)
Gas pressure: 0.3-0.5mpa
Fluid pressure: 0.1-0.3MPA
Weight:154g

Package include:
1 x Air Atomizing Nozzle( external mixing type)

Description: The air atomizing nozzle is a device that generates air mist becuase of the mutual effect of liquid flow and air flow. The special internal structure enables the liquid and gas to be uniformly mixed to produce small droplet spray or coarse droplet size. Generally, a finer droplet spray can be obtained by increasing the gas pressure or lowering the liquid pressure, resulting in a higher gas flow rate liquid flow ratio.
