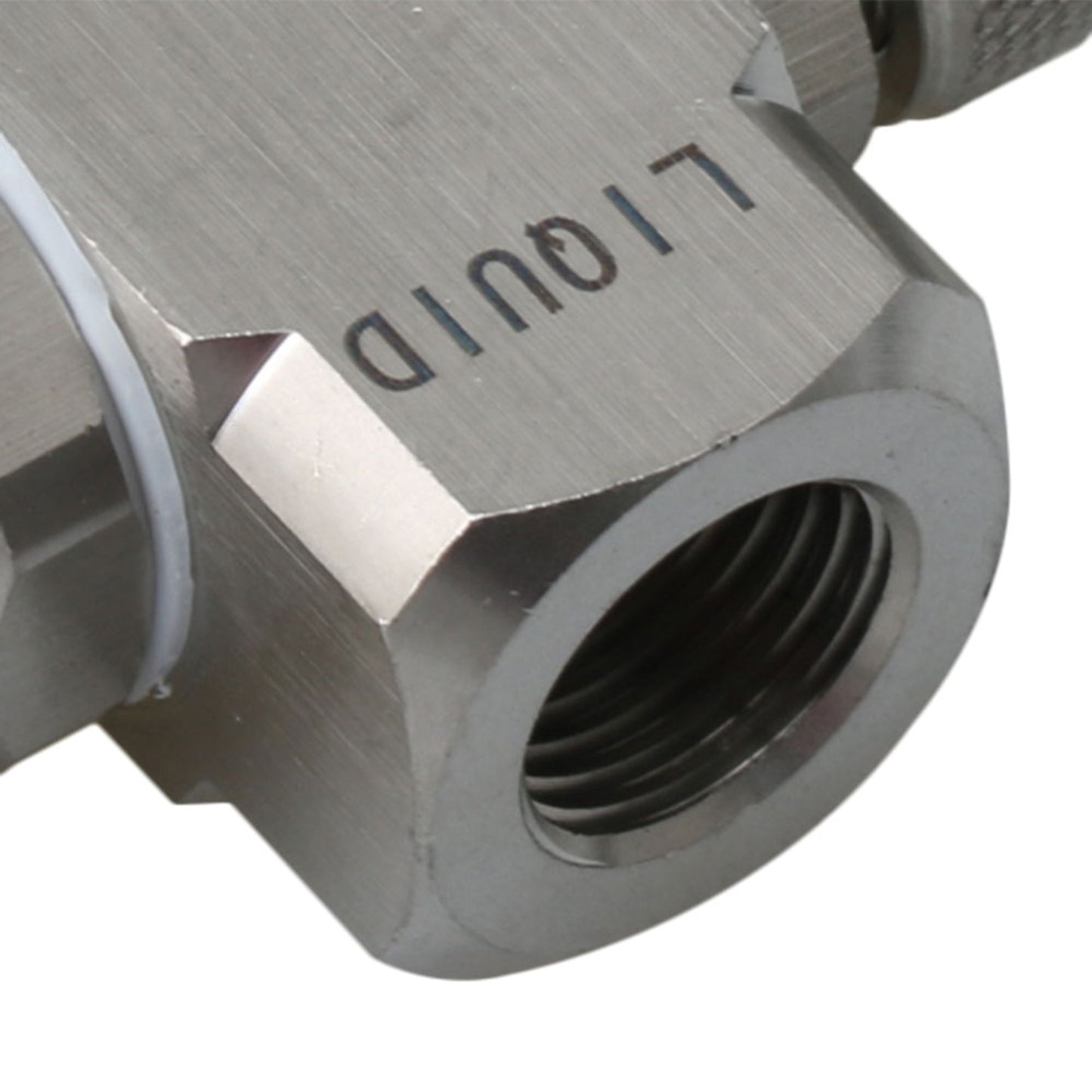

BQLZR Stainless Steel 1/4BSP Female Thread Spray Air Atomizing Mist Nozzle Cone-shaped Spray Siphon Type

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.The spray angle is about 15 degrees and the spray distance is about 2.5 meters
4.This is a siphon device,used for dust,humidification,cooling.
5.The amount of mist can be adjusted.
6.No pressure is needed for siphon type and siphon height can be within 1 meters

Specifications:
Material:Stainless Steel
Color:Silver
Brand name: BQLZR
Size:7.3x4.2x2.2cm/2.87x1.65x0.87inch(LxWxH)
Female Thread Dia.:BSP1/4(12.5mm)
Gas pressure: 0.3-0.5mpa
Fluid pressure: No pressure needed
Weight:152g

Package include:
1 x Air Atomizing Nozzle(cone-shaped spray)

Description: The air atomizing nozzle is a device that generates air mist because of the mutual effect of liquid flow and air flow. The special internal structure enables the liquid and gas to be uniformly mixed to produce small droplet spray or coarse droplet size. Generally, a finer droplet spray can be obtained by increasing the gas pressure or lowering the liquid pressure, resulting in a higher gas flow rate liquid flow ratio.
