BQLZR

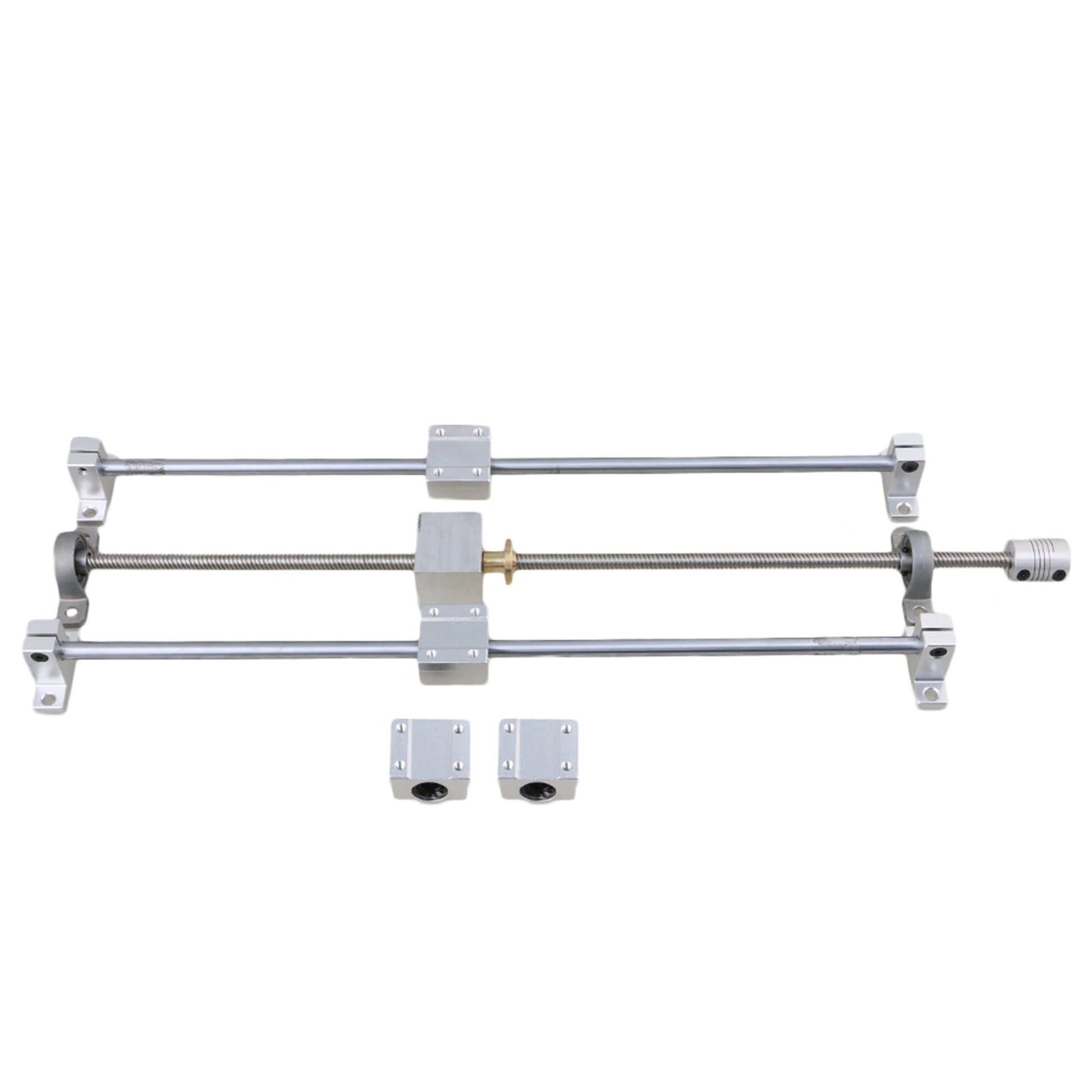

BQLZR T8 Horizontal Dual Rail Linear 400mm Optical Axis & 450mm 8mm Screws Coupler Set

BQLZR T8 Horizontal Dual Rail Linear 400mm Optical Axis & 450mm 8mm Screws Coupler Set

常规价格 $77.70
常规价格 $101.01 促销价 $77.70
促销 售罄
Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Suitable for stepper motors, machine tool guide rails and other equipment.
4.Good wear resistance and strength, high precision.
5.Good performance, low friction coefficient and long service life.

Specifications:
Material: Bearing steel & Aluminum & Stainless steel
Color: Silver & Black
Brand name: BQLZR

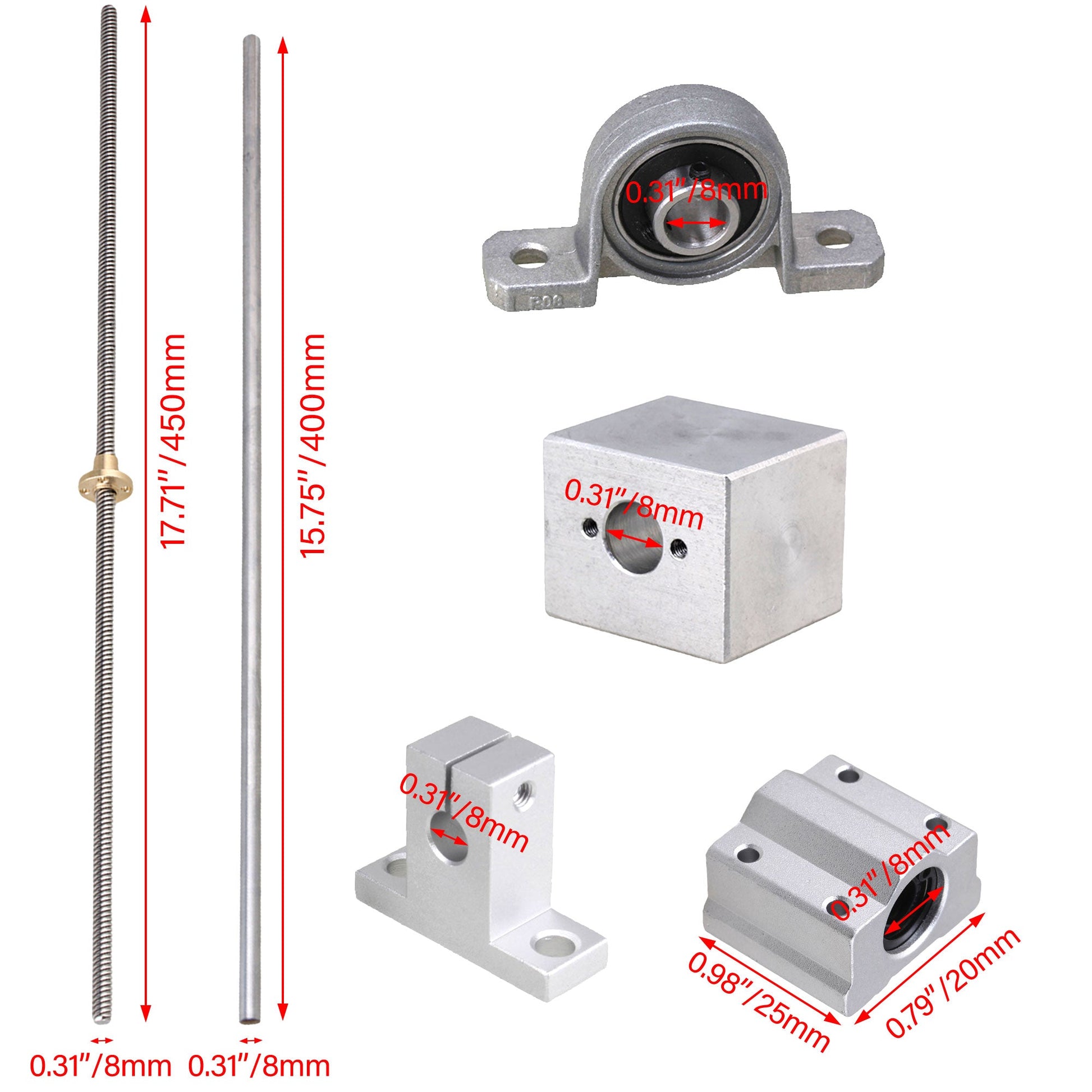

Size:

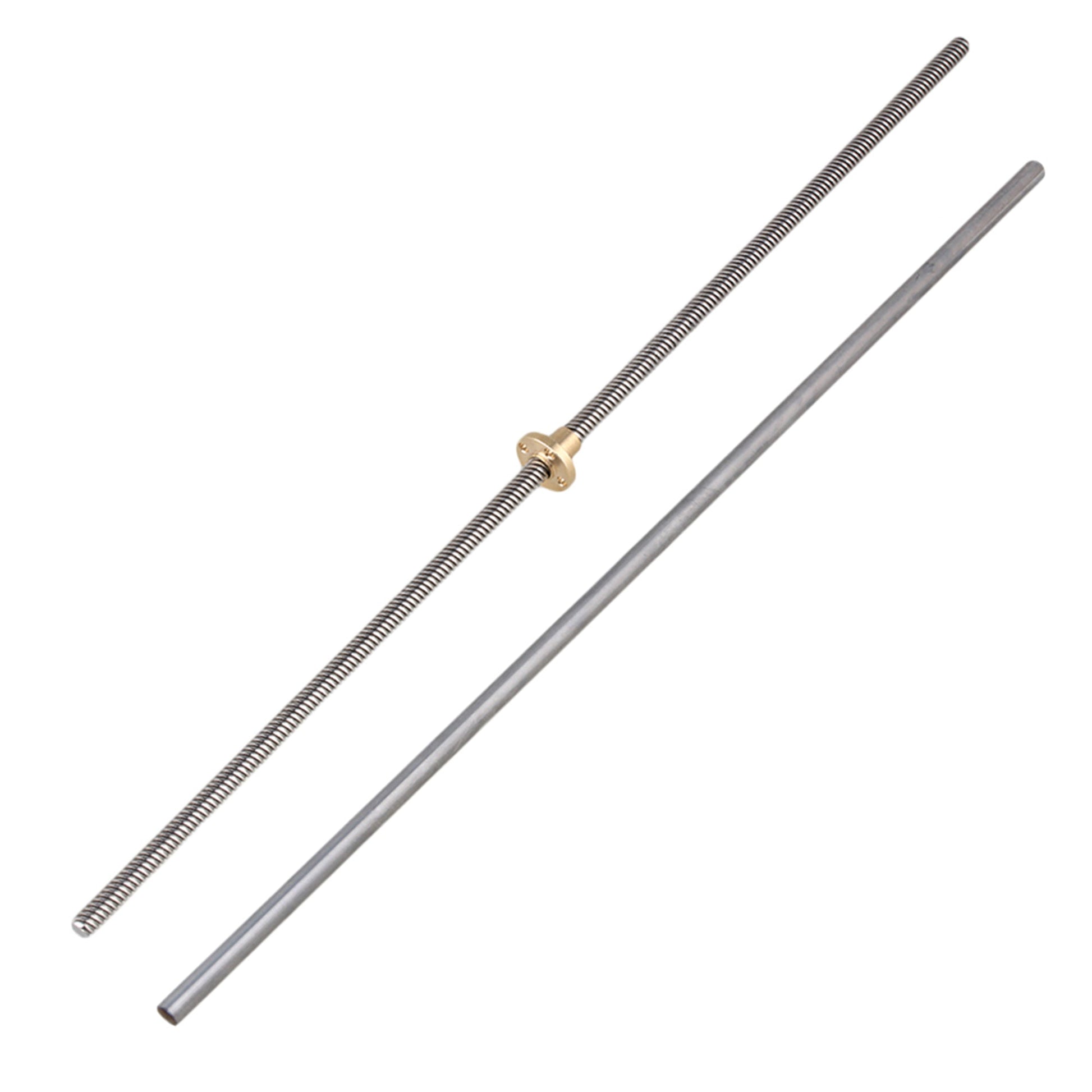

Lead screw: 450x8mm/17.72x0.31inch (LxW)
Screw lead: 8mm/0.31inch
Screw nut seat length: 34x30x28mm/1.34x1.18x1.1inch (LxWxH)
Screw nut diameter: 10mm/0.39inch
Straight optical axis: 8x400mm/0.31x15.75inch
Aperture of optical axis support frame: 8mm/0.31inch
Inner hole of bearing housing: 8mm/0.31inch
Inner diameter of linear bearing: 8mm/0.31inch
Coupler: 20x25mm/0.79x0.98inch (DxH)
Coupler aperture: 5x8mm/0.2x0.31inch
Weight: 936g

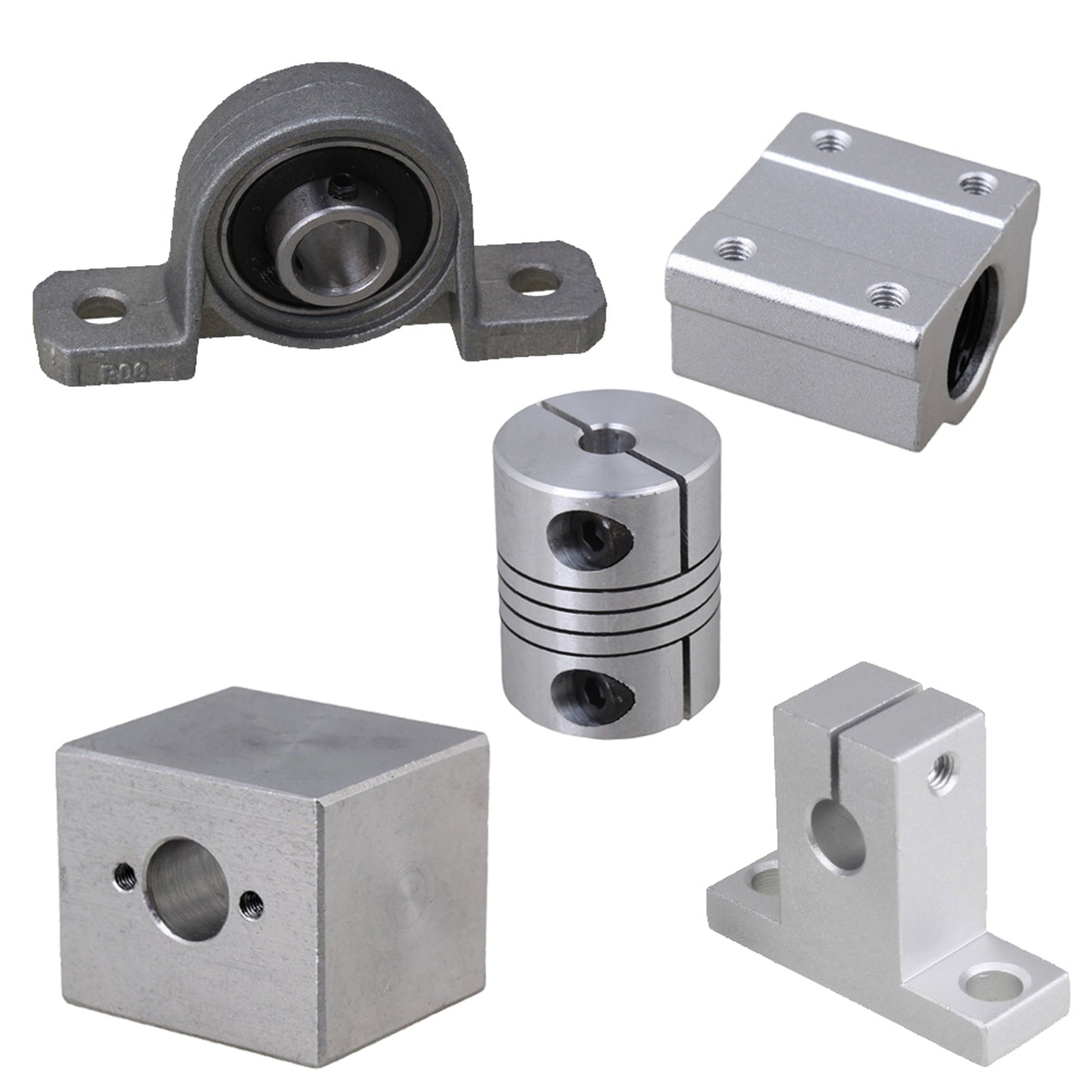

Package include:
1 x Shaft Coupler

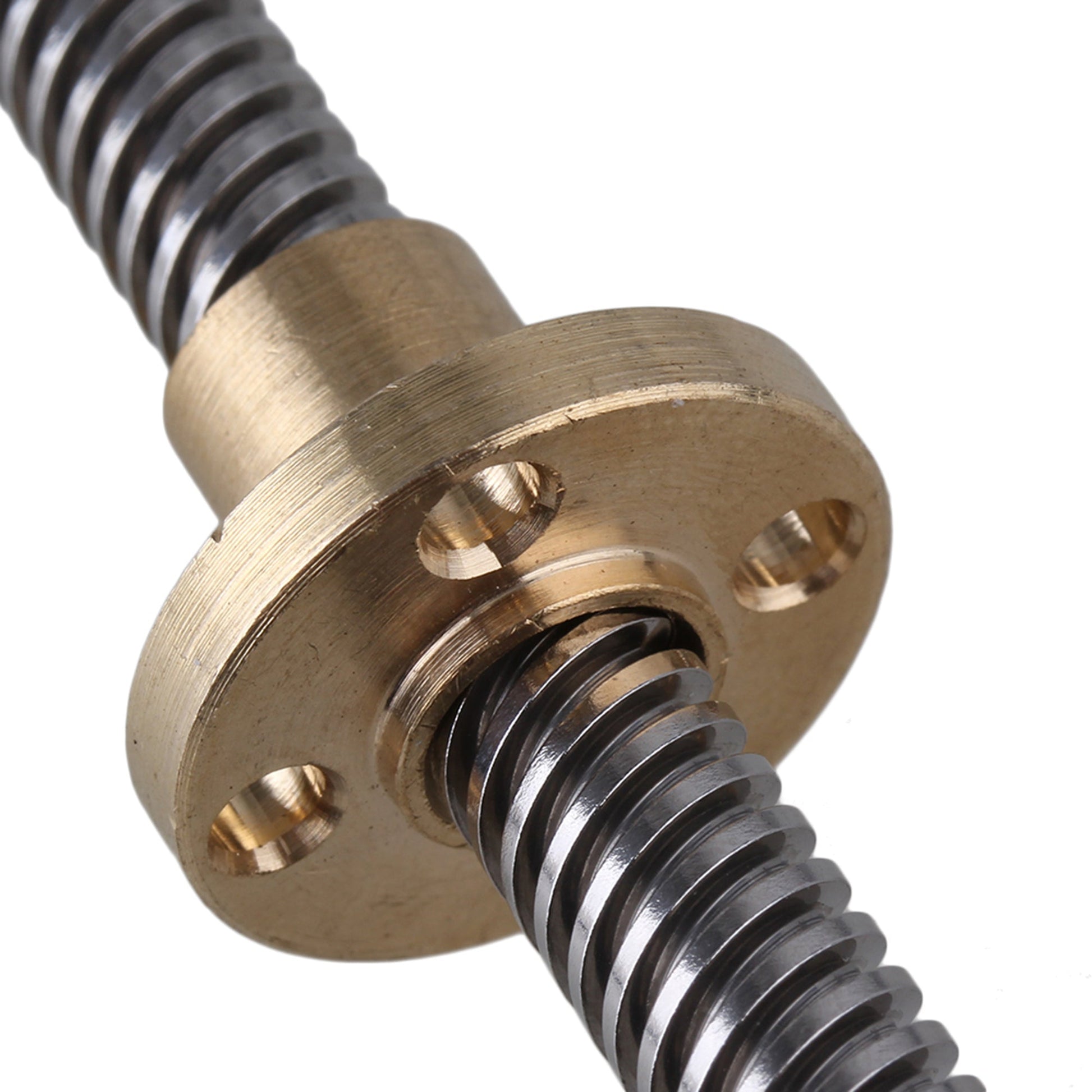

1 x T8 Screw Seat Nut
1 x Lead Screw
4 x Bearing
4 x Ball Bearing
2 x Linear Rail Shaft Optical Axi
2 x Mounted Support (8mm Inner Dia)
