BQLZR T8 Lead Screw Set Bearing Pillow Block Bracket Handwheel Gear Wheel BQLZR

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Include Lead Screw + Ball Bearing Pillow Block + T8 Ballscrew Nut Bracket + Handwheel + Tapered Gear Wheel.
4.This Bearing is a self-aligning, pillow block bearing, you can adjust or replace the bearing easily.
5.This is a simple manual slide unit,by controlling the hand wheel, gear, linear bearings,more suitable for a variety of low-precision machining applications.

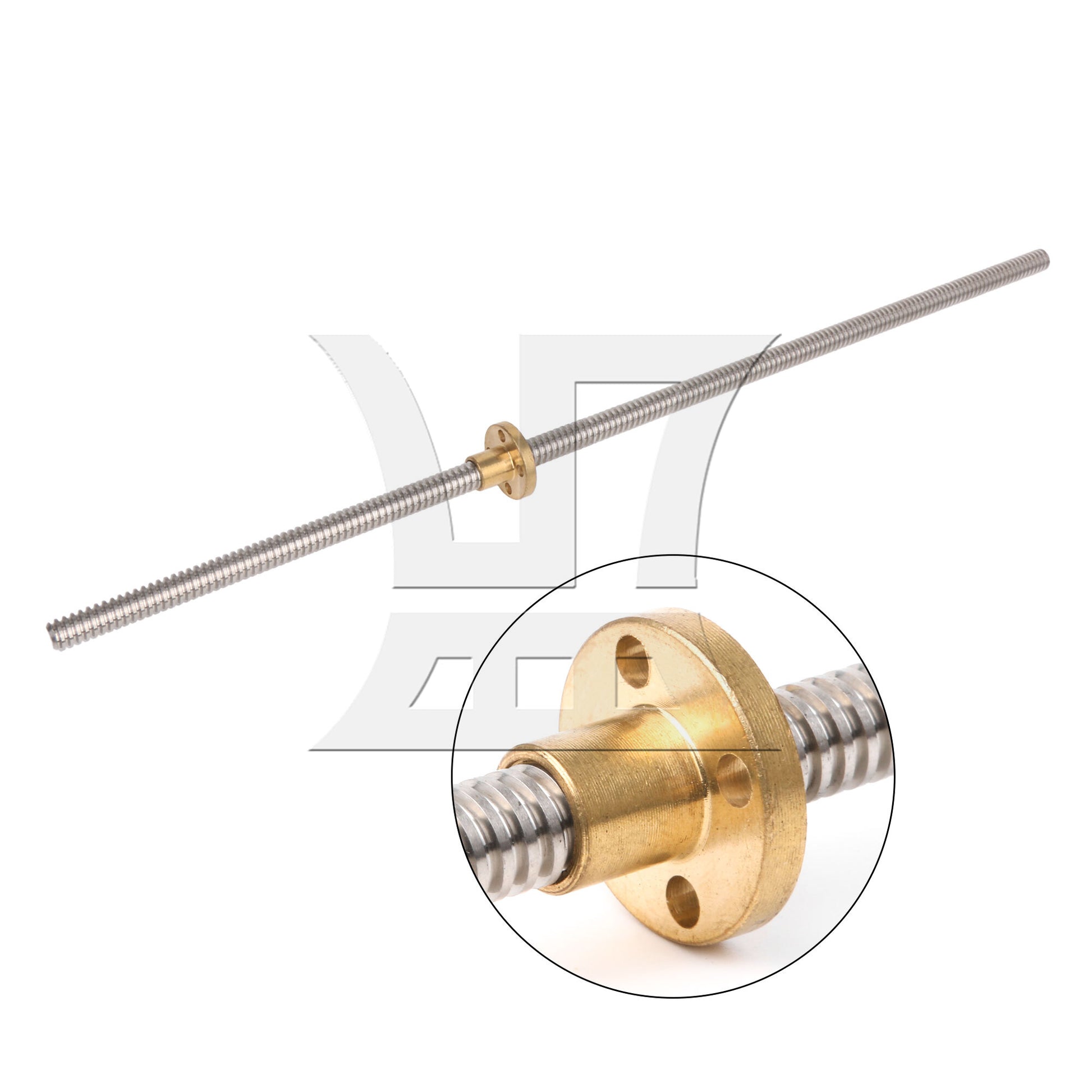

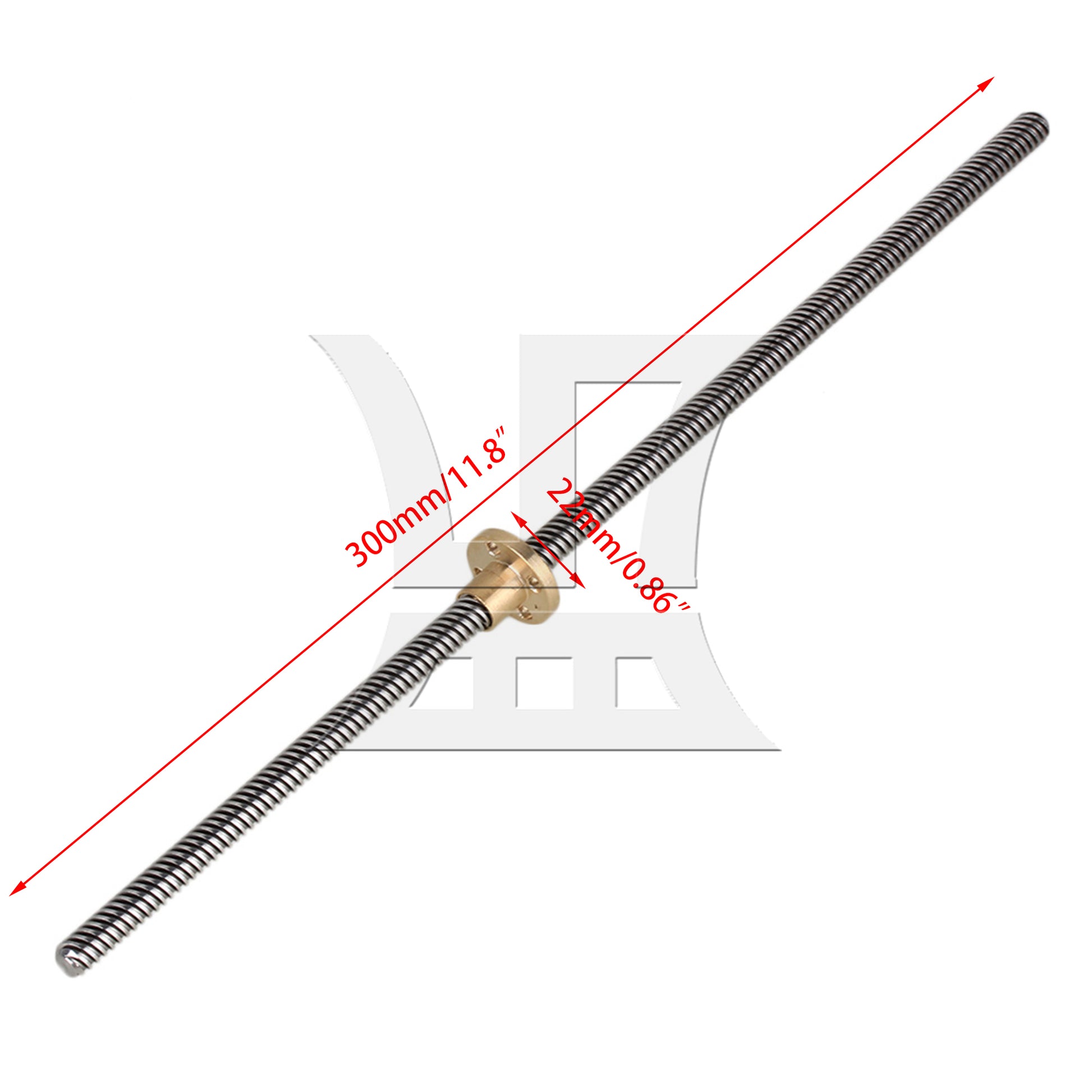

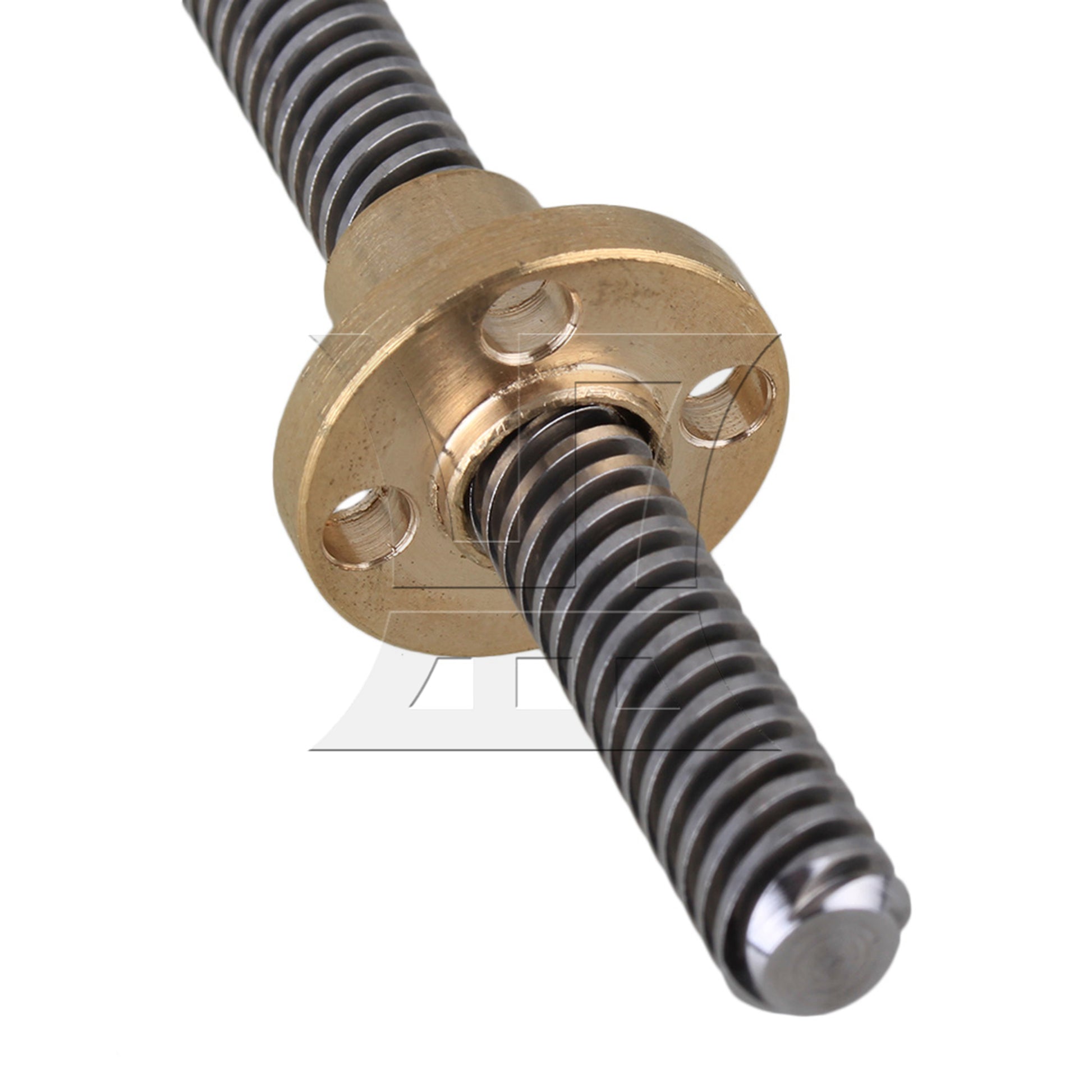

Lead Screw:
Screw Material: Stainless Steel
Nut Material: Brass
Diameter: 8mm/0.31"
Lead: 8mm (nut revolution movement 8mm)
Length: 1PCS is 300mm , 1pcs is 350mm
Color:Gold and Silver

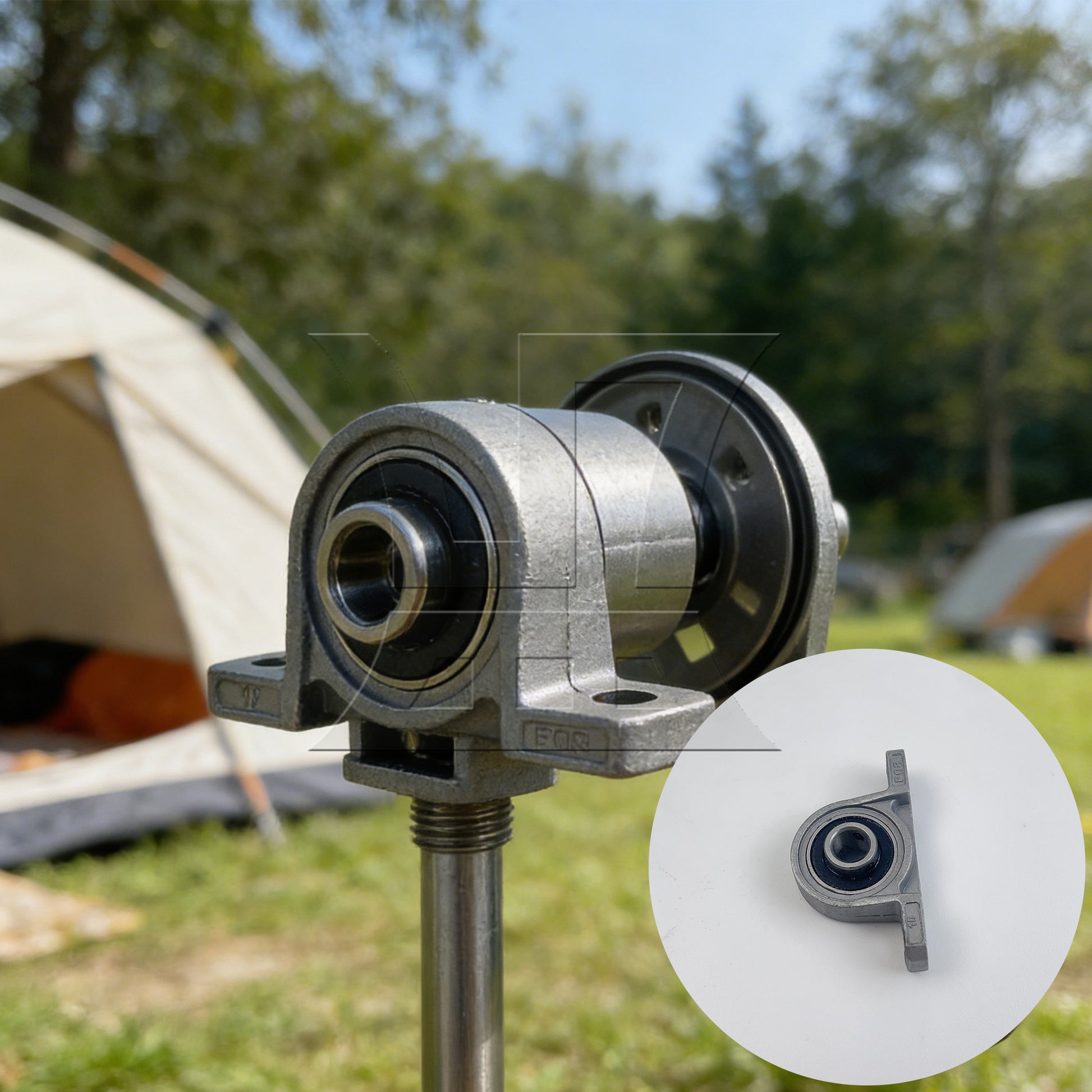

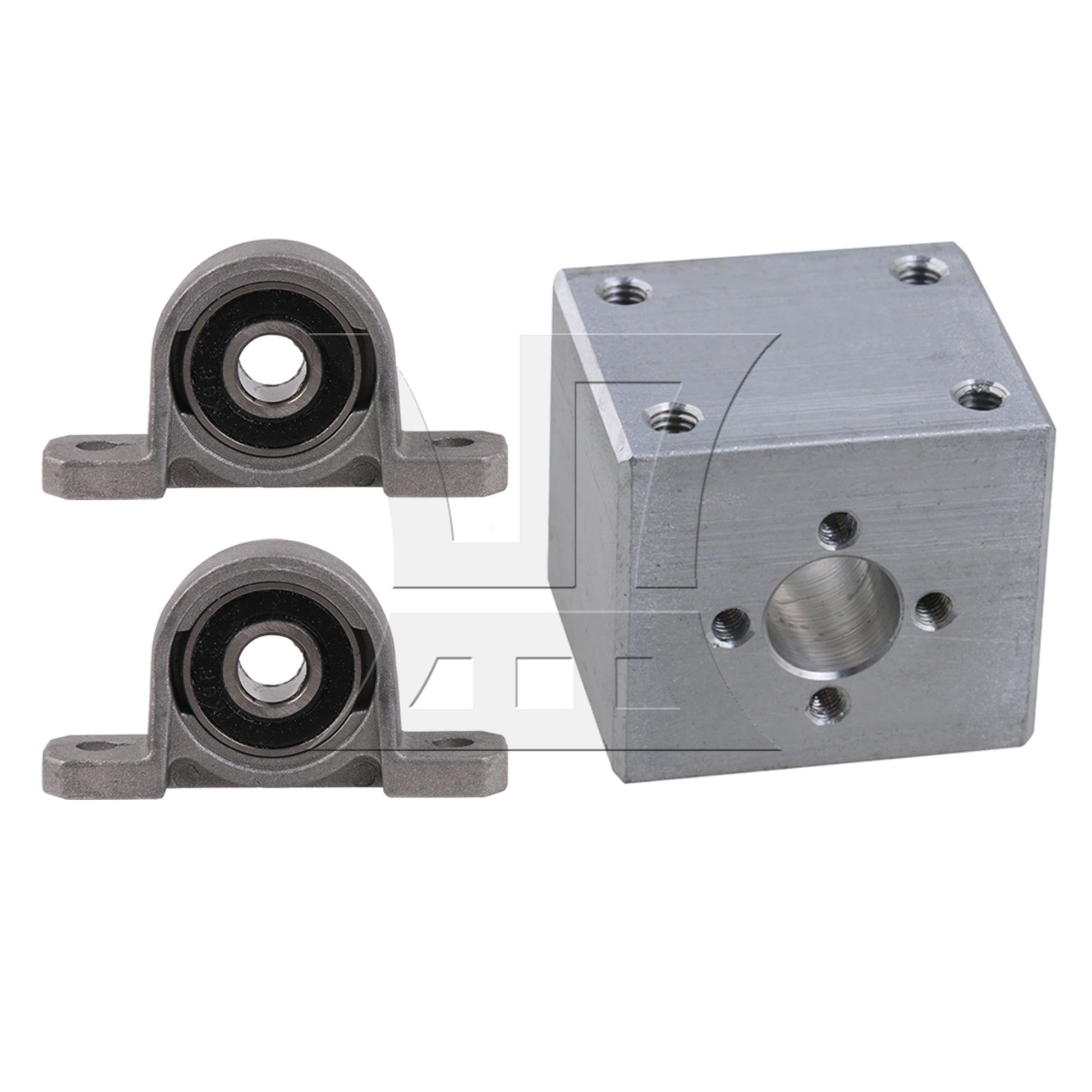

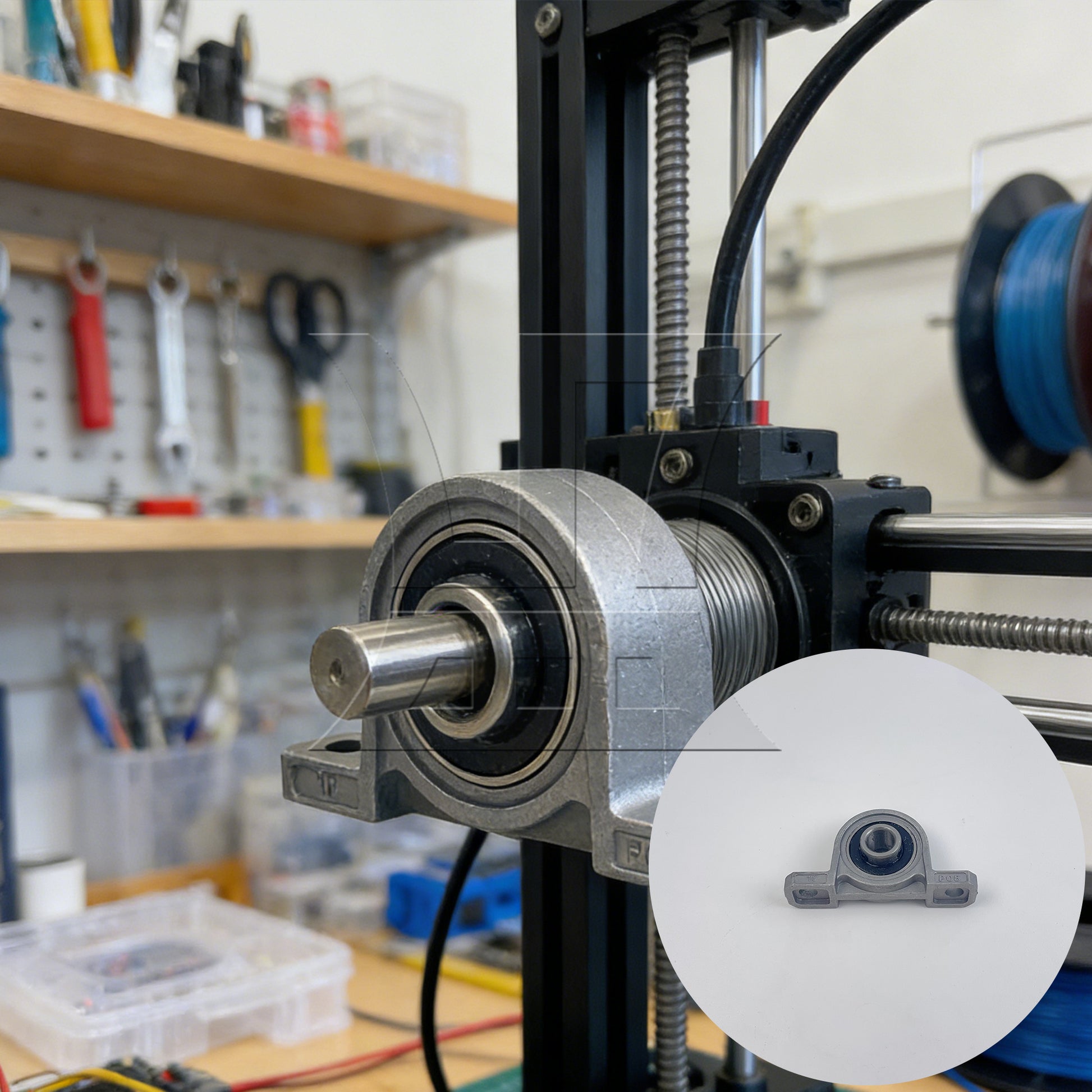

Ball Bearing Pillow Block:
Material:Zinc Alloy
Color:Gray
Mounting Type: Pillow Block
Bearing Internal Diameter:8mm/0.31"
Bearing Outside Diameter:12mm/0.47"
Bearing Width:12mm/0.47"
Mount Hole Distance:37mm /1.5"

Ballscrew Nut Bracket:
Material:Aluminum
Color:Silver
Brand name: BQLZR
Size:34x30x28mm/1.33x1.18x1.10"(LxWxH)

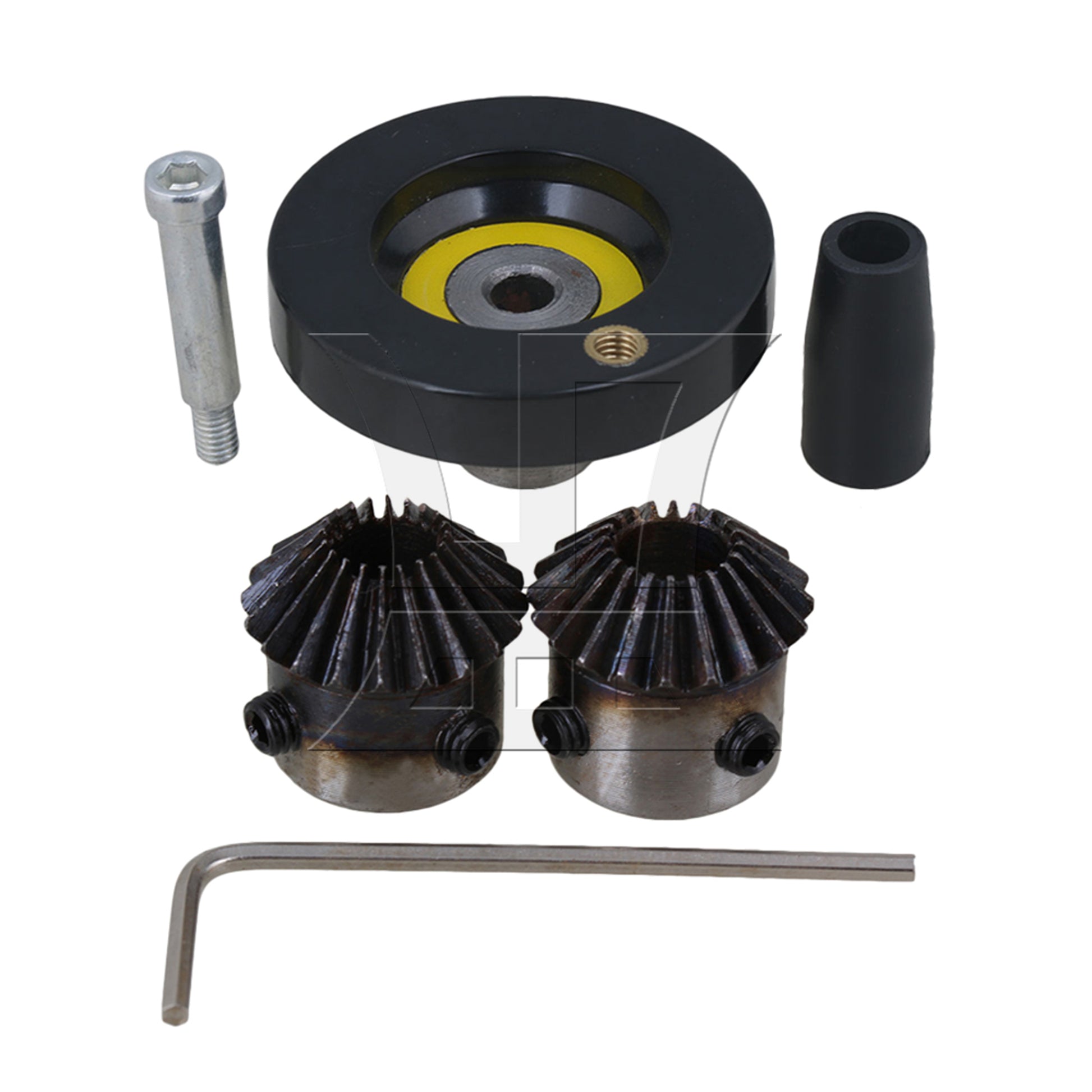

Handwheel:
Material: Special plastic,Metal
Color:Black and Silver
Diameter:63mm/2.48"
Hole diameter:8mm/0.31"
Hole Dia:M5

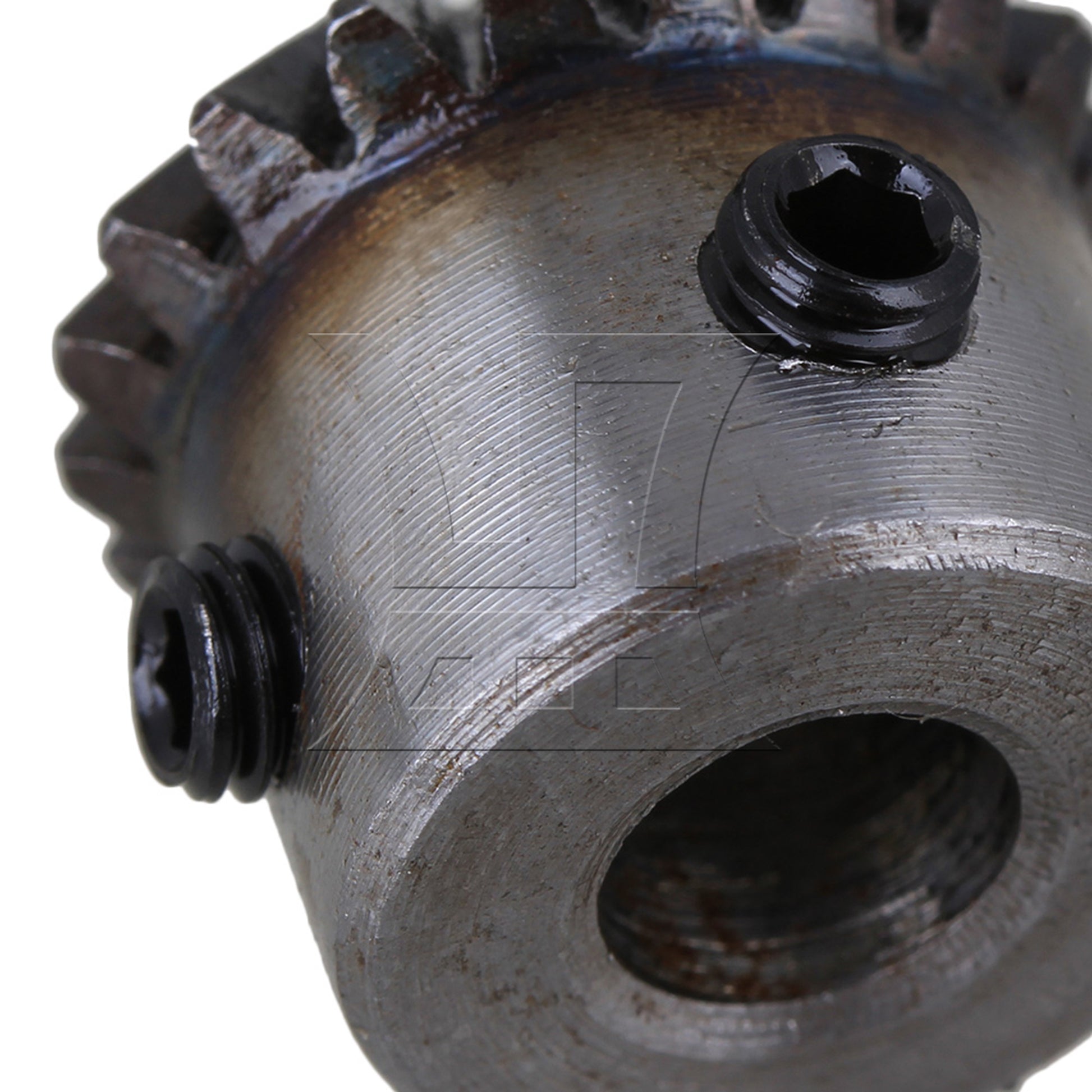

Tapered Gear Wheel:
Color: Silver
Material: 45 Steel
Teeth number: 20
Modulus: 1
Inner Diamter: 8mm/0.31"
Maximum Outer Diameter: 22mm/0.87"
Total Thickness: 22mm/0.87"
Base Diamater: 18mm/0.71"
Total Size: 22x22mm/0.87x0.87"(ODxT)

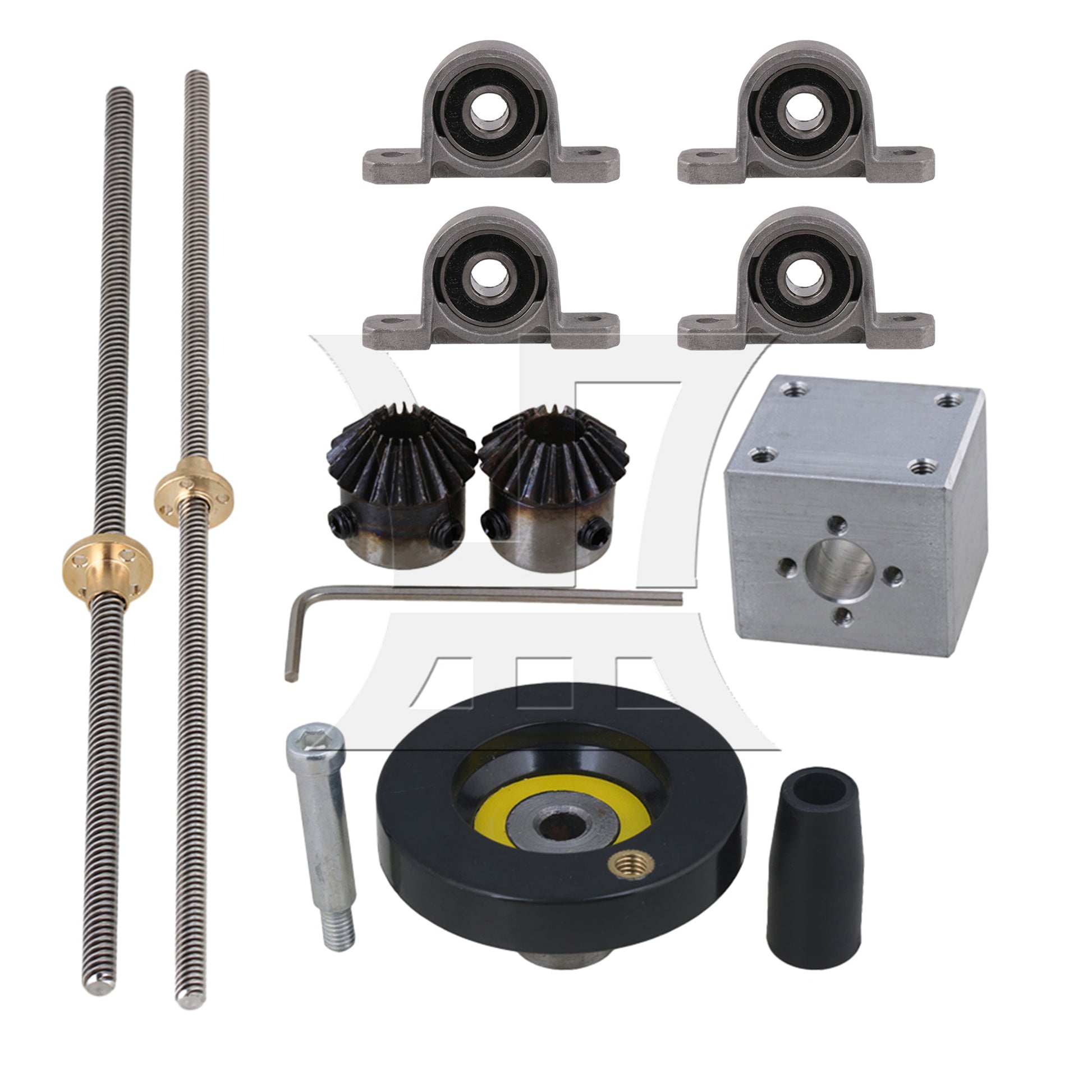

Package Include:
1 x Lead Screw(300mm)
1 x Lead Screw(350mm)
4 x Ball Bearing Pillow Block
1 x Ballscrew Nut Bracket
1 x Handwheel
2 x Tapered Gear Wheel
