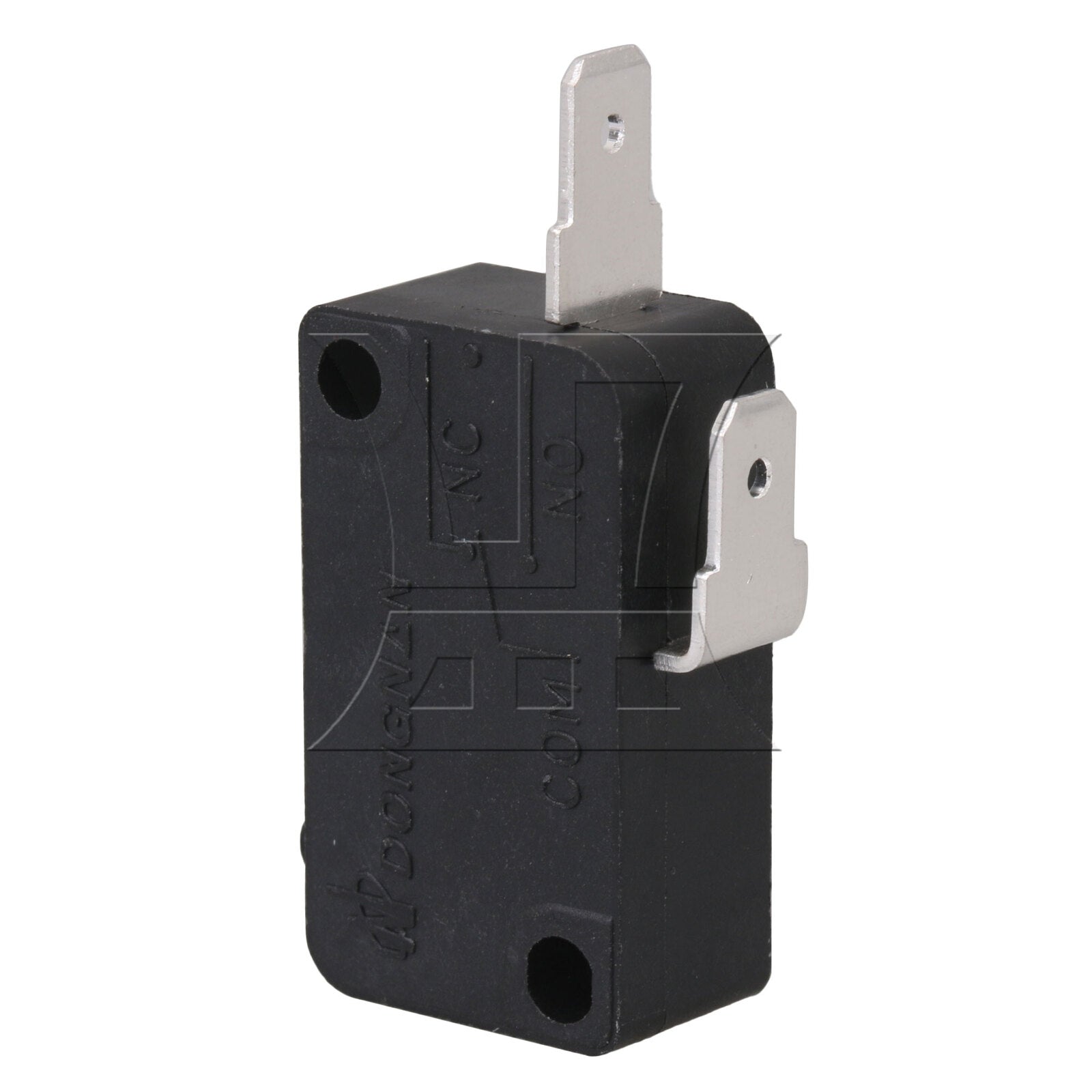

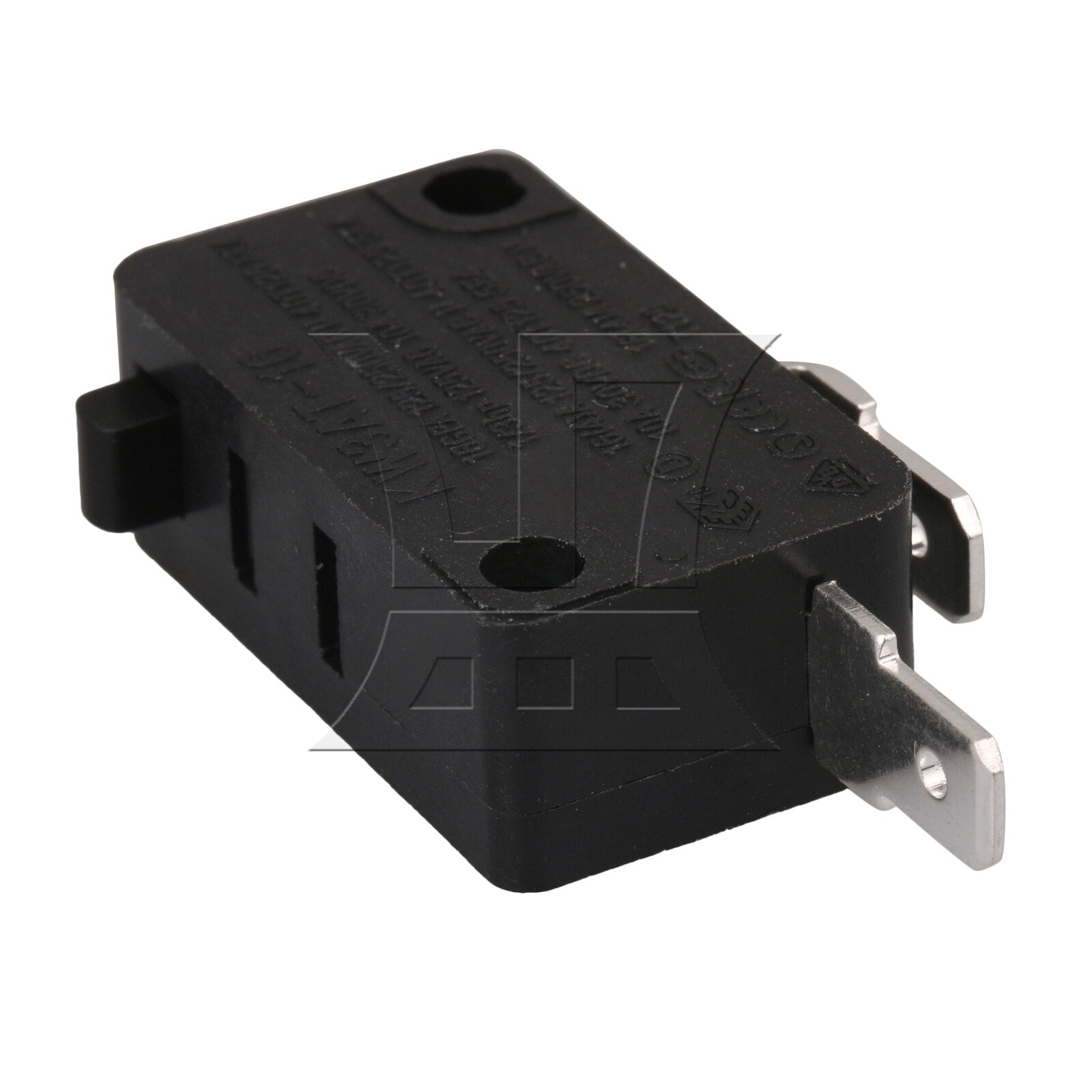

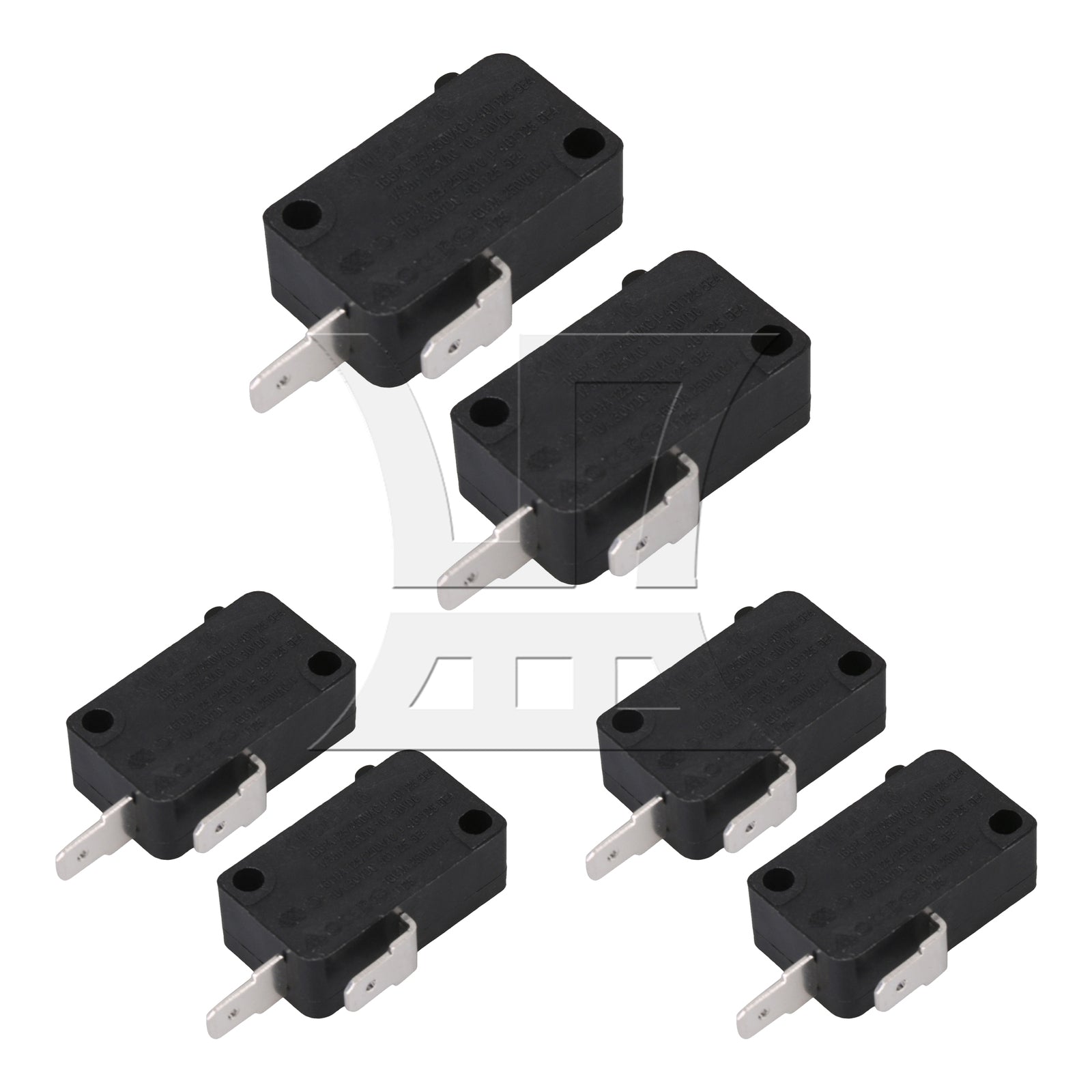

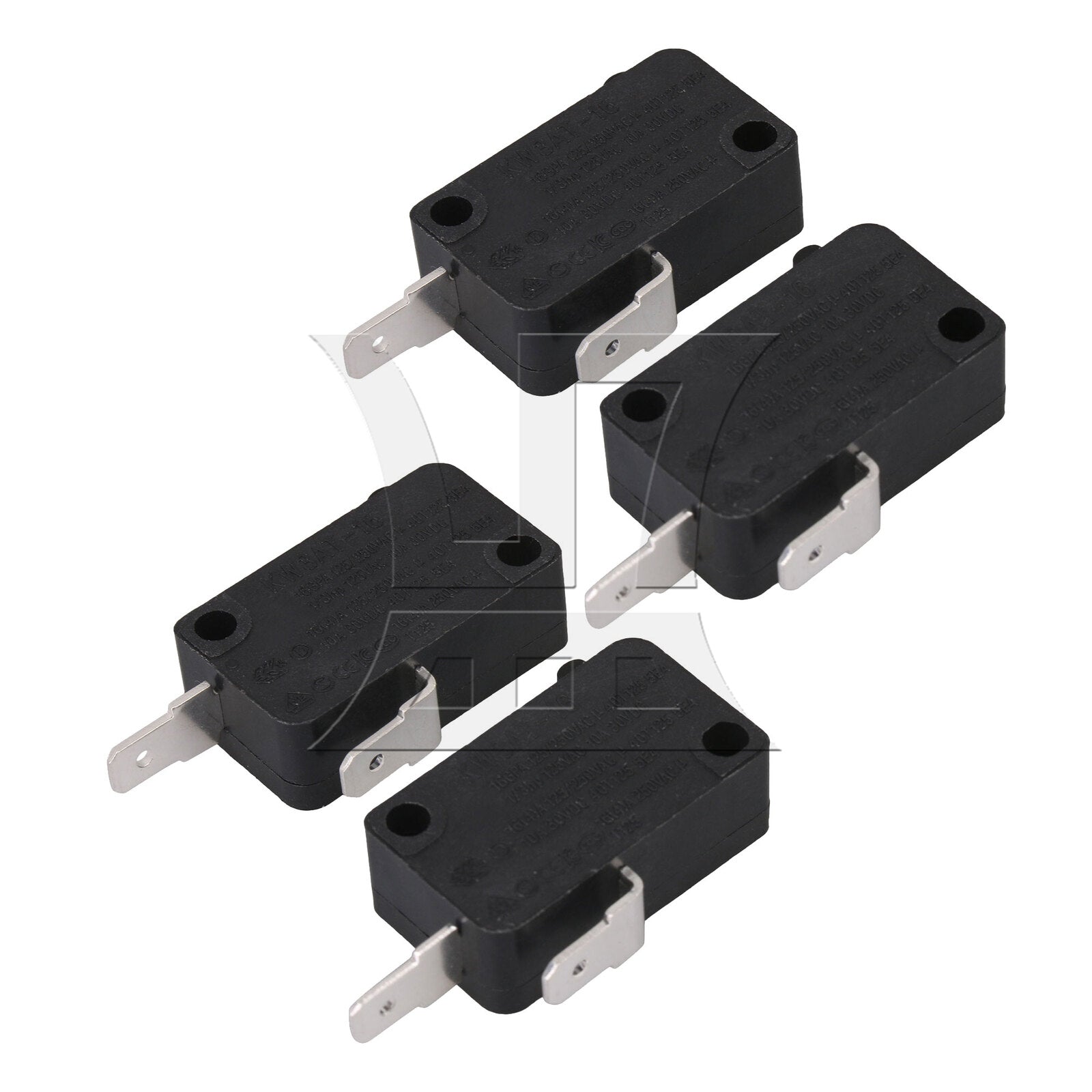

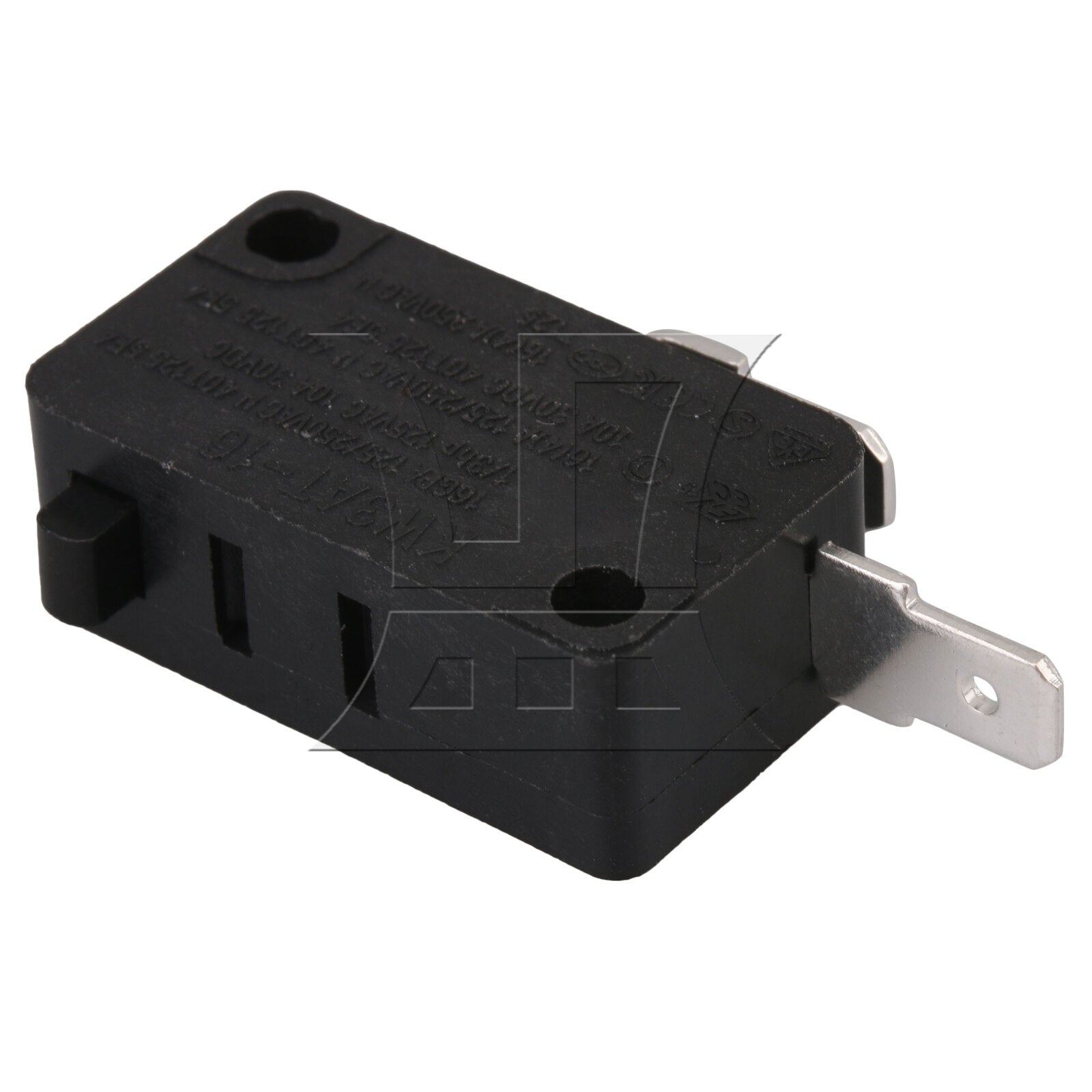

BQLZR Universal Microwave Door Switch KW3AT-16 Micro Replacement Parts

Features:
1.Every product has a unique Manufacturing Part Number label on the inner package that proves it has been qualified,which include Part Number,Model Number and inspection date information;
2.If you have any questions about the item,please provide us the Manufacturing Part Number for checking,your profits will be guaranteed.
3.Excellent touch switch, good touch effect and long service life.
4.Made of high-quality metal and plastic, it is and has a long service life.

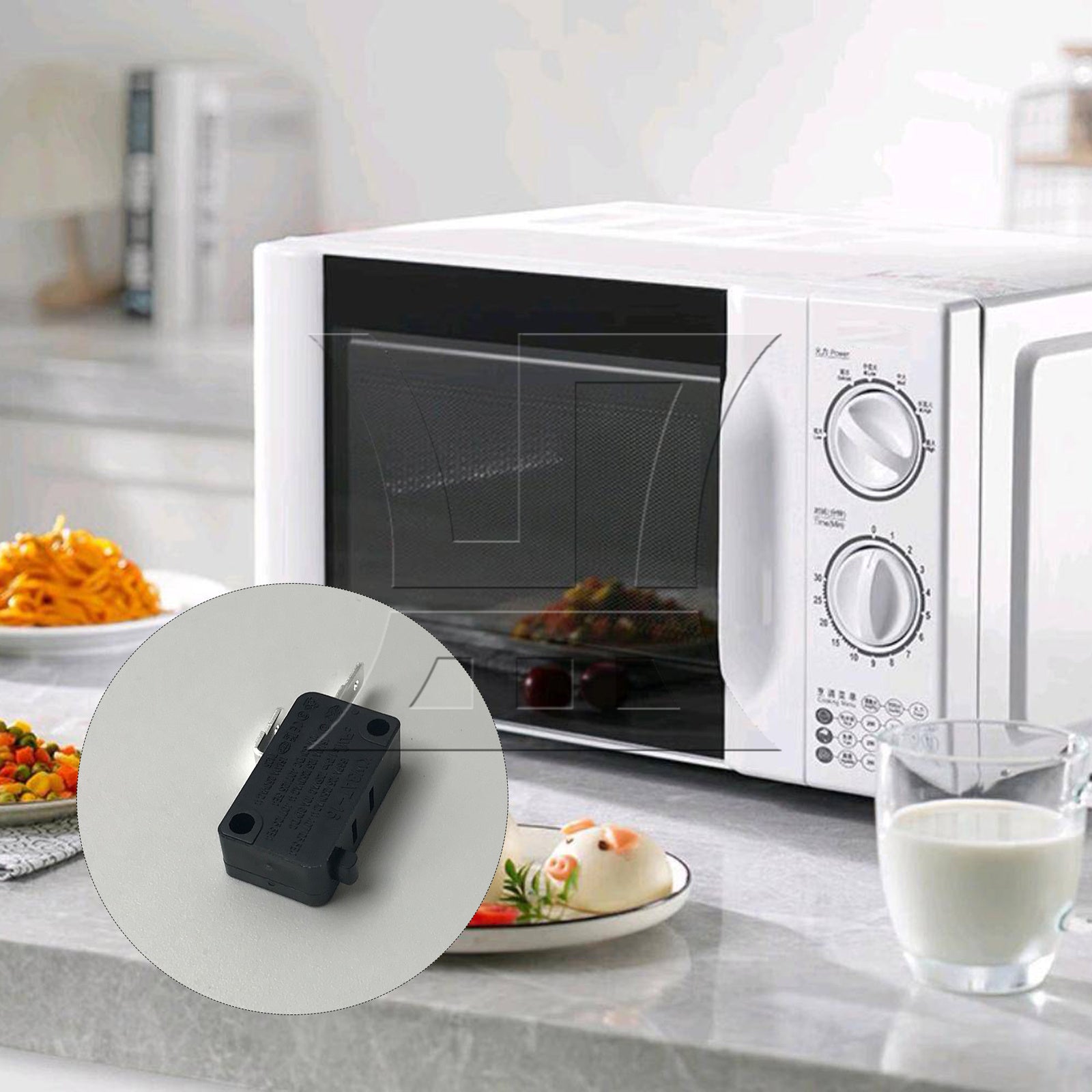

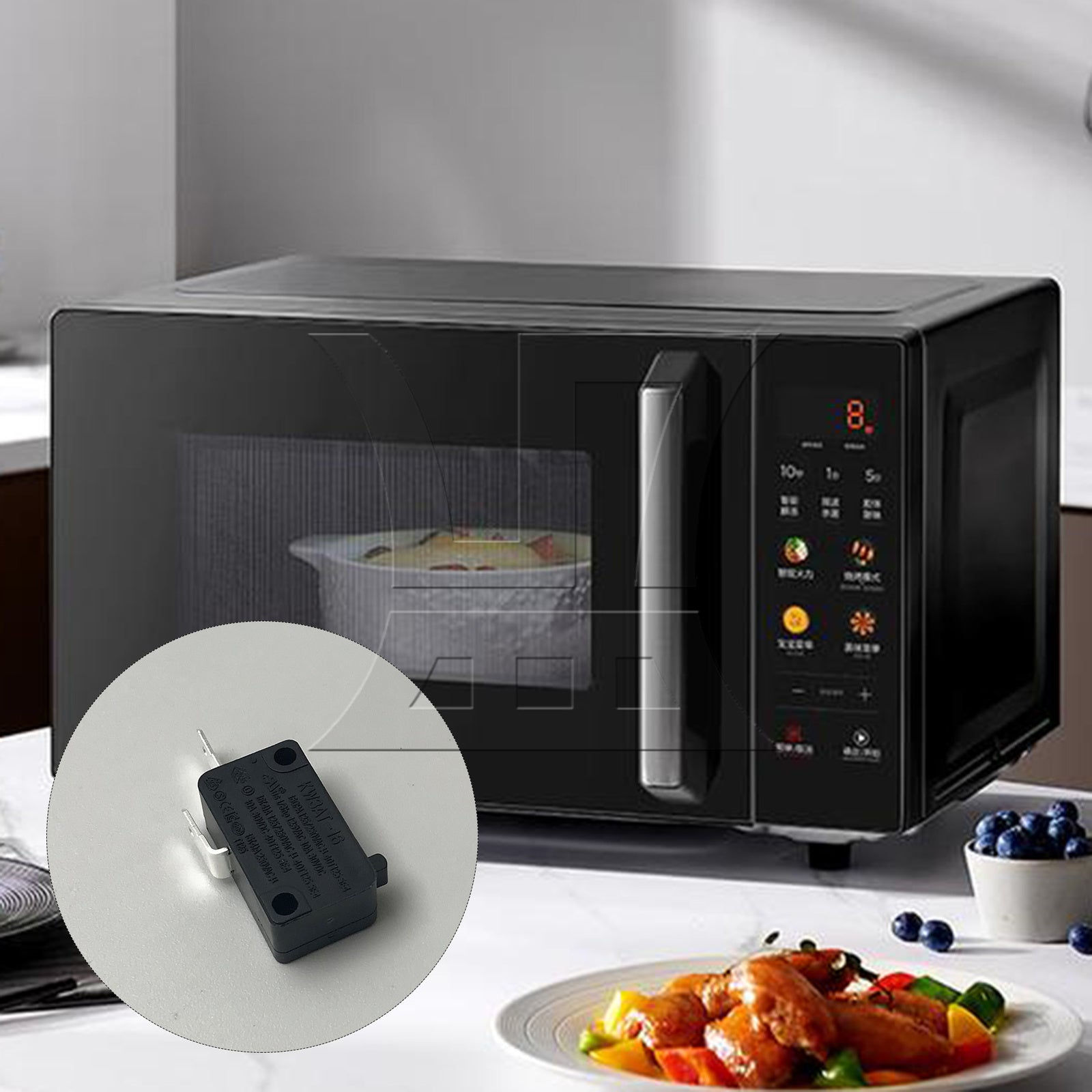

5.Commonly use in microwave ovens, this switch will close the circuit once the button is depressed. This switch may be used in many other appliances.

Compatible models:
Replacement for SZM-V16-FD-63,
Replacement for SZM-V16-FA-63,
Replacement for 3B73362F,
Replacement for PS3522738.
Replacement for Chefman KW11-7-1.

Note:
It is compatible with most microwave ovens. If the microwave oven cannot rotate or heat normally, the door switch may have problems. The new switch can restore the normal working of the microwave oven.

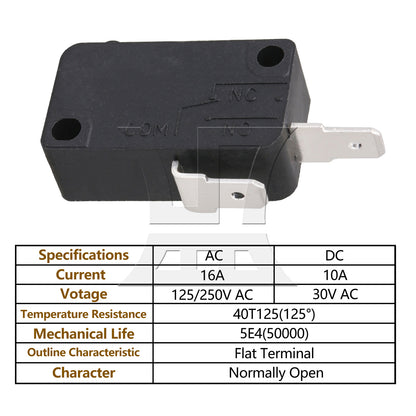

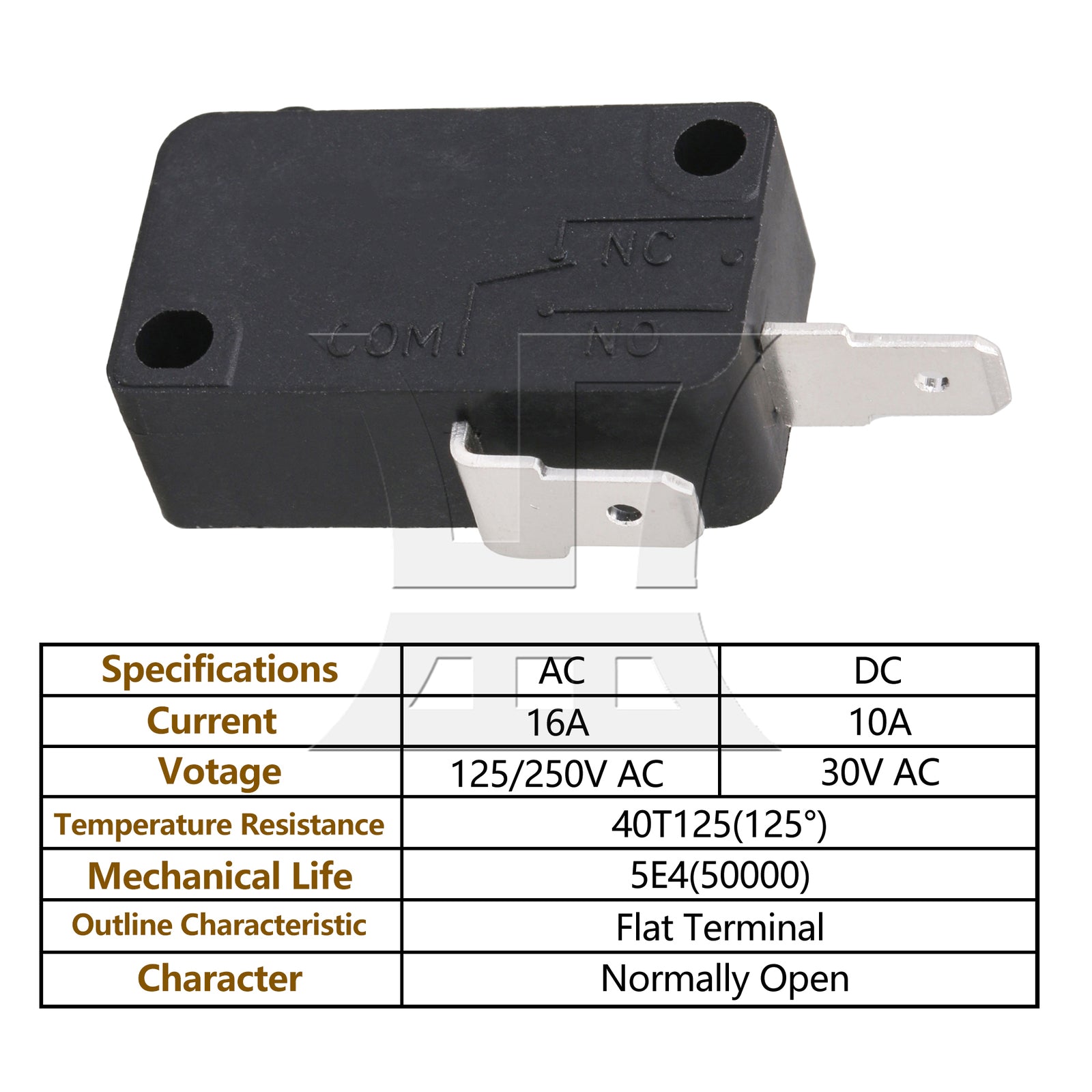

Specifications:
Material: Plastic+Metal
Color: Black
Brand name: BQLZR
Type: Normally Open
Temperature resistance: 125 Degree
Current: 16A
Voltage: 125V / 250V
Mechanical life: 5E4 (50,000 times)
Terminal type: Quick connect terminal #187 (t=0.8)
Shell size: 1.09 x 0.63 x 0.41inch (27.8 x 15.9 x 10.3 mm)

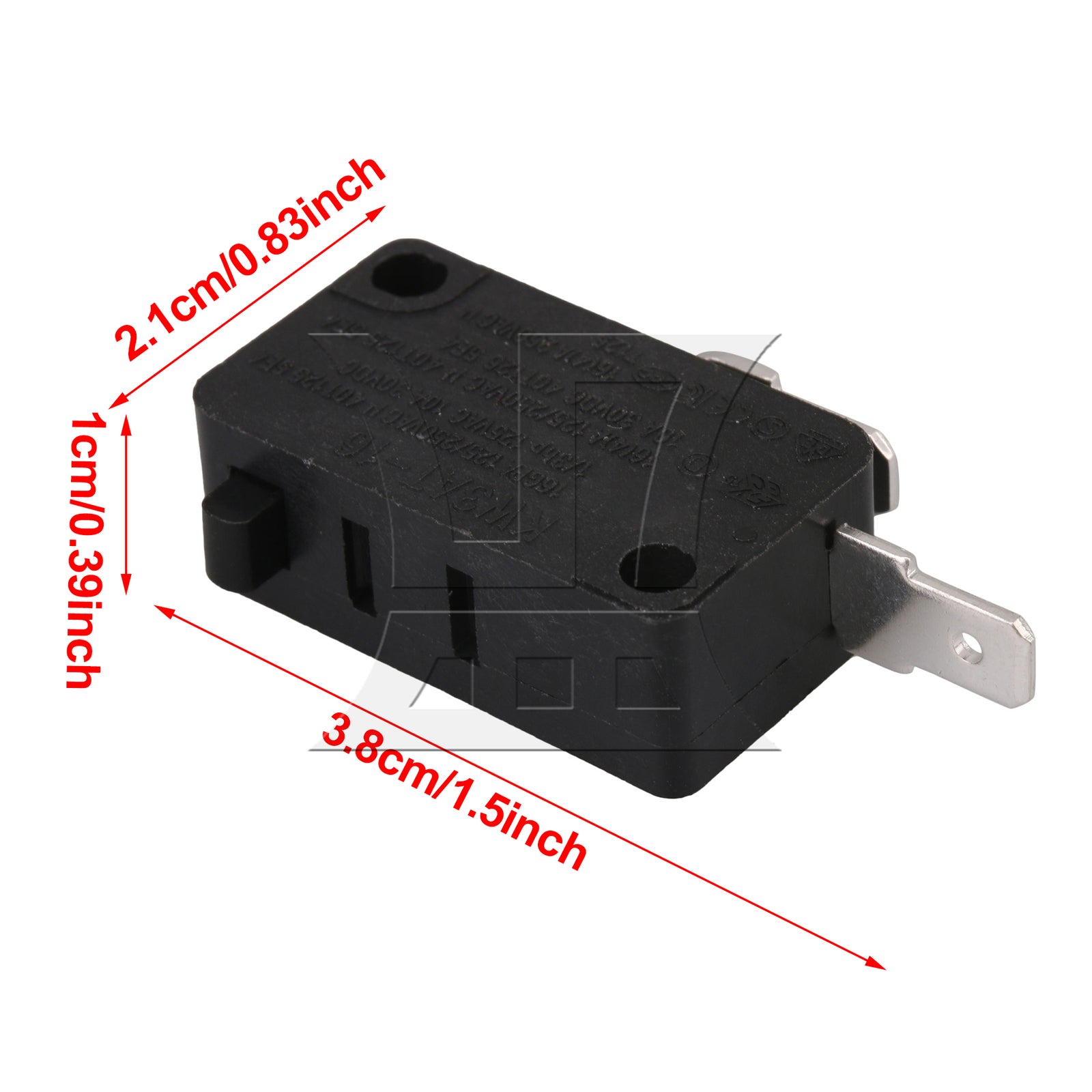

Size: 3.8x2.1x1cm/1.5x0.83x0.39inch(LxWxH)
Operating Force: 1.5N Max
Release Force: 0.3N Minimum
Test Voltage: AC1000V/2000V
Contact Resistance: 50mΩ Max
Operating Position: 14.7±0.4mm
Movement Error: Maximum 0.4mm
Insulation Strength: 100MΩ Minimum

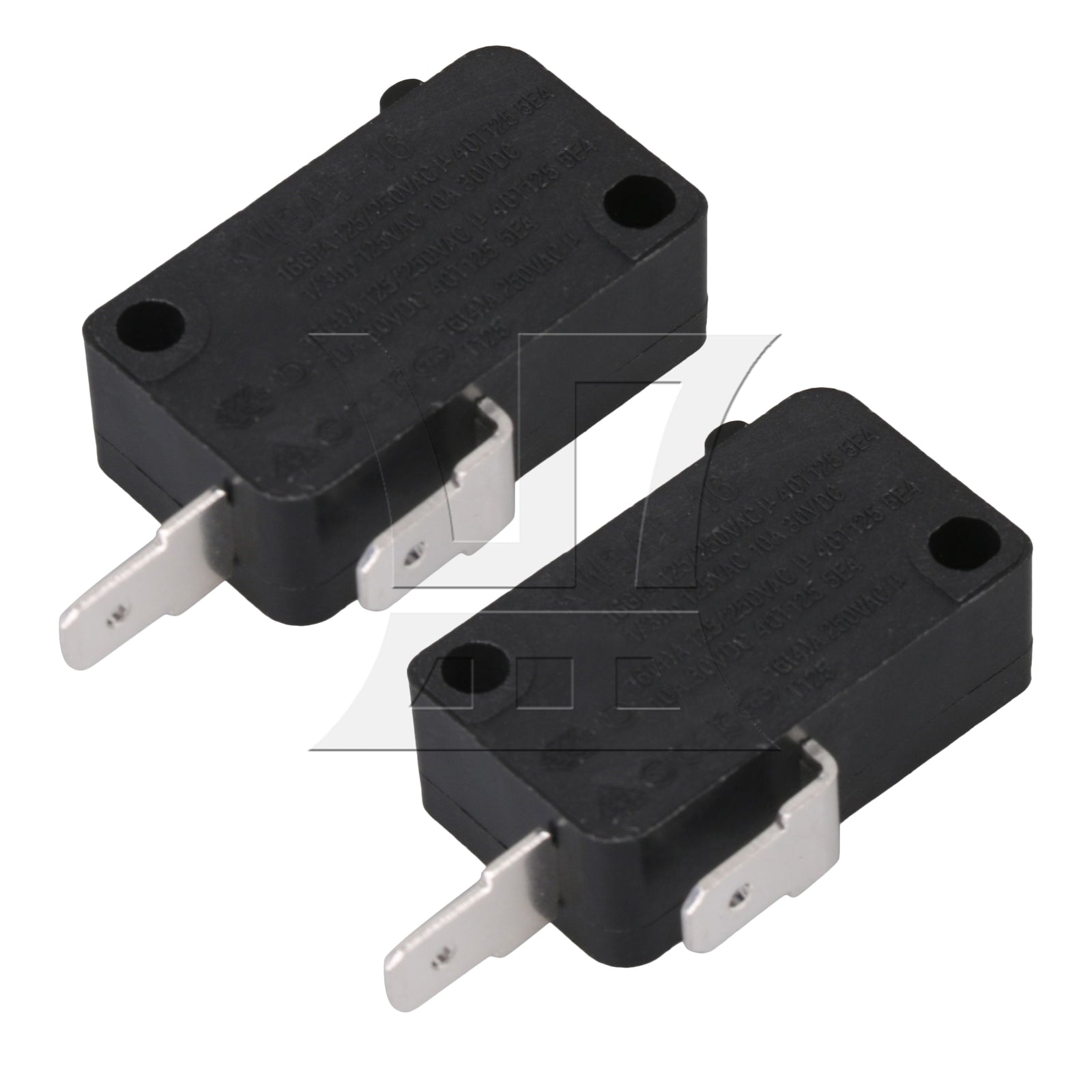

Weight: 14g(2pcs)
